Solenoid valves · 536MGV0050

Ceme - Solenoid valve Ceme, type 5510-1/8", inlet and outlet: 1/8", 230 volt, drill mounting on the side, M3 thread, female thread on both sides, right-hand side

Solenoid valve Ceme, type 5510-1/8", inlet and outlet: 1/8", 230 volt, drill mounting on the side, M3 thread, female thread on both sides, right-hand side | Solenoid valves

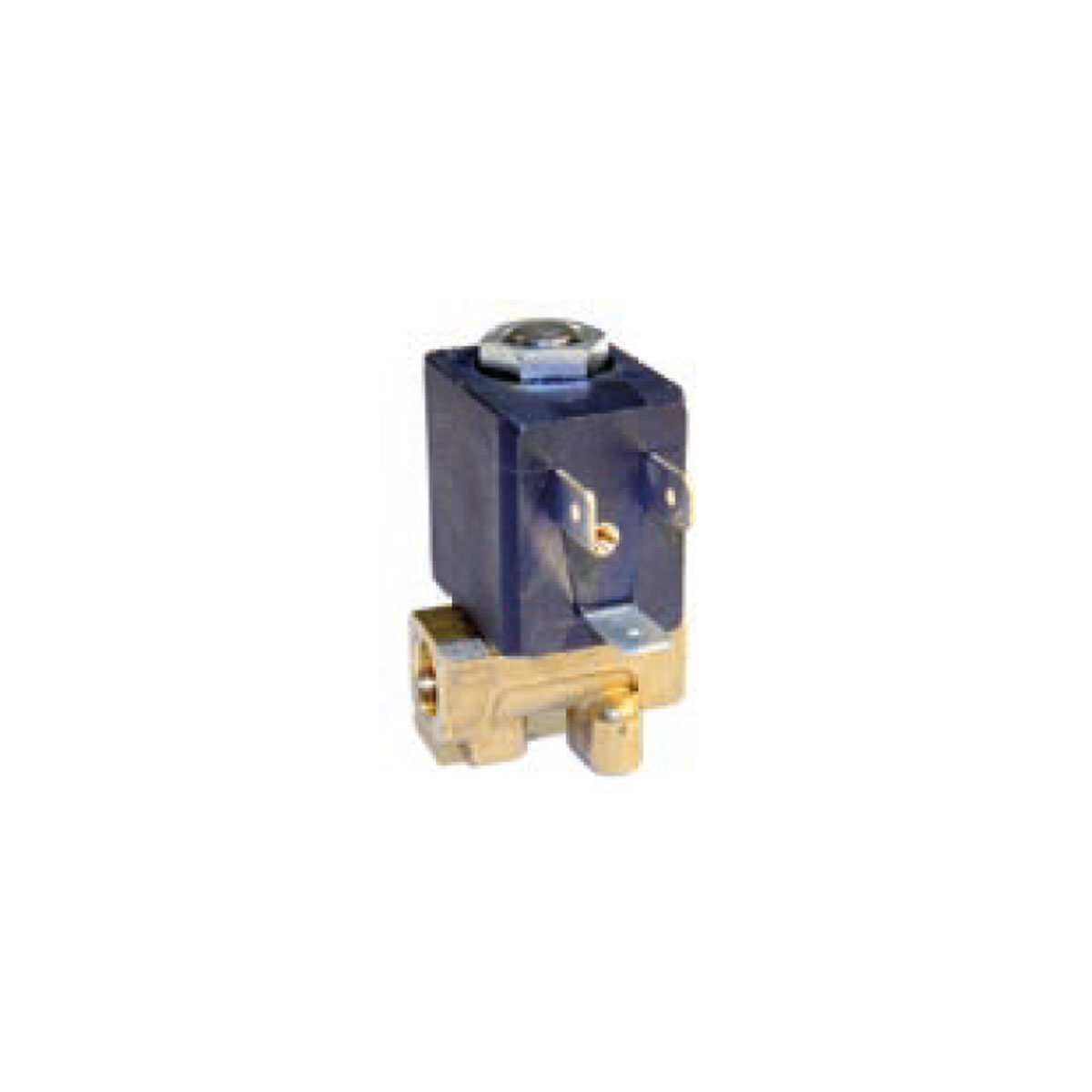

Fig. may deviate

DescriptionDataDocuments

Solenoid valve Ceme, Type 5510-1/8", input and output: 1/8", 230 Volt, drill fixing on the side, M3 thread, female thread on both sides, right

Technical data:
- 2/2-way Principle: Normally closed
- Materials: Basic body brass, inner parts
stainless steel, seals: NBR, etc.
- Media (up to 90°C): Water, air, steam, non-flammable
flammable gases (inert gas), others on request
- Max. Max. switching pressure: 13 bar (DC actuated: 7 bar)
- Max. ambient temperature Ambient temperature for 100% ED: 80°C
(AC actuated), 40°C(DC actuated)
- Connection: Three 6.3mm flat plugs (DIN 43650B)

Questions about the product?

Seen cheaper?

Share…

Back

Manufacturer	Ceme
Manufacturer number	3153/230
Product group	Solenoid valves
Customs tariff number	84812010
Origin	ITA
Available	From stock (4-7 days after order)
Updated	05.12.2022
