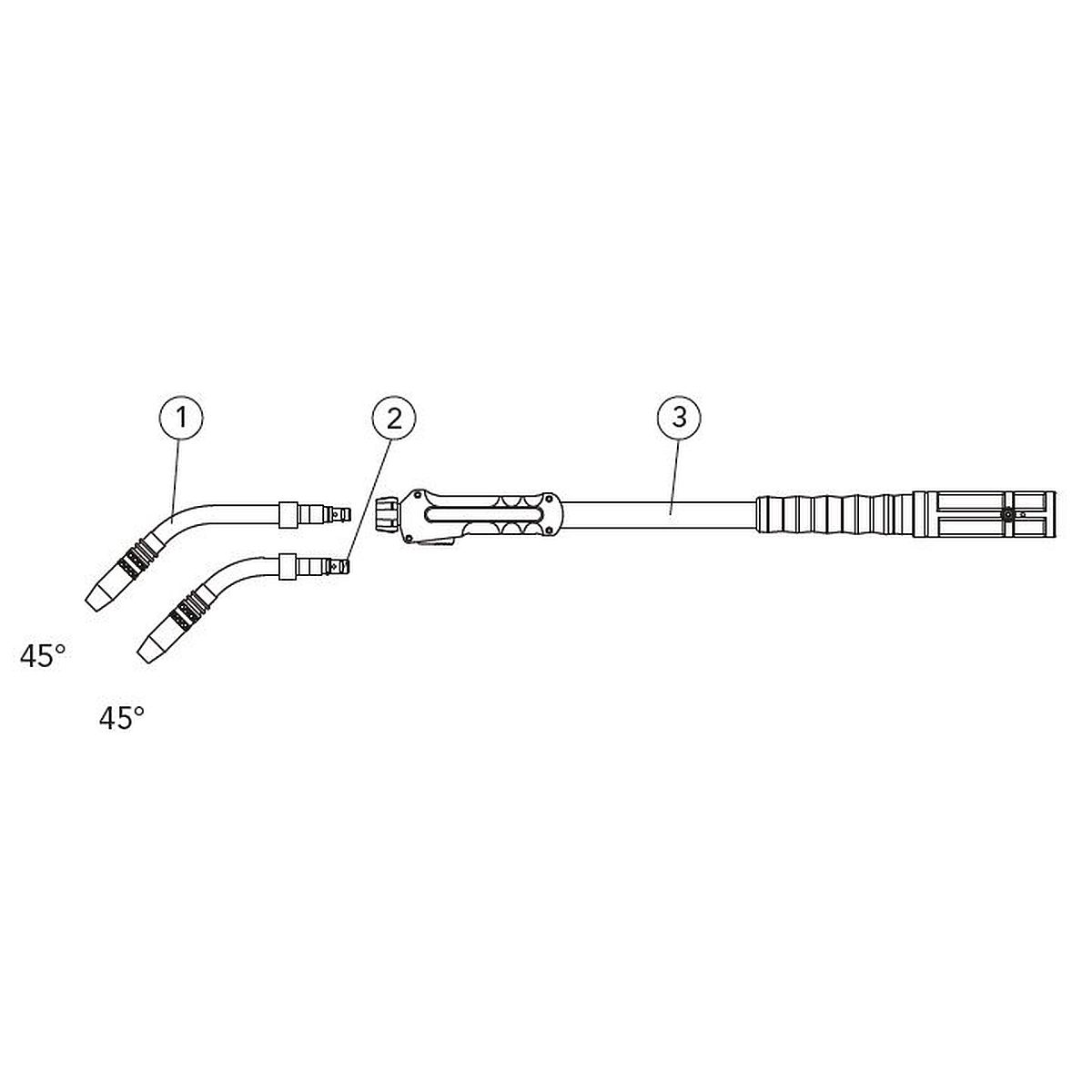

Dinse Torch head short DIX MWL 230 45°, technical data see details.

Description
For each challenge, the right welding gun: two different torch heads 230 MW and 330 to determine the range of application
Advantages
Advantages
- Torch heads can be changed quickly
- 360° revolving torch heads
- Flexible supply hose
- Bend protection at the plug view
- Gas nozzle with rugged trapezoidal thread
- Optimum gas coverage by recessed contact tip
- Gas reduction by laminar gas flow and design of the tip adapter
- No gas loss due to separate shield gas feed
Technical Details | |
---|---|
standard angle | 45 ° |
connection | Euro; Dinse; Power-Pin |
cooling | gascooled |
wire diameter | 0,8; 0,9; 1,0; 1,2 mm |
welding process | MIG; MIG |
raw material | Non alloyed steels; low alloyed steels; high alloyed steels; copper alloys |
