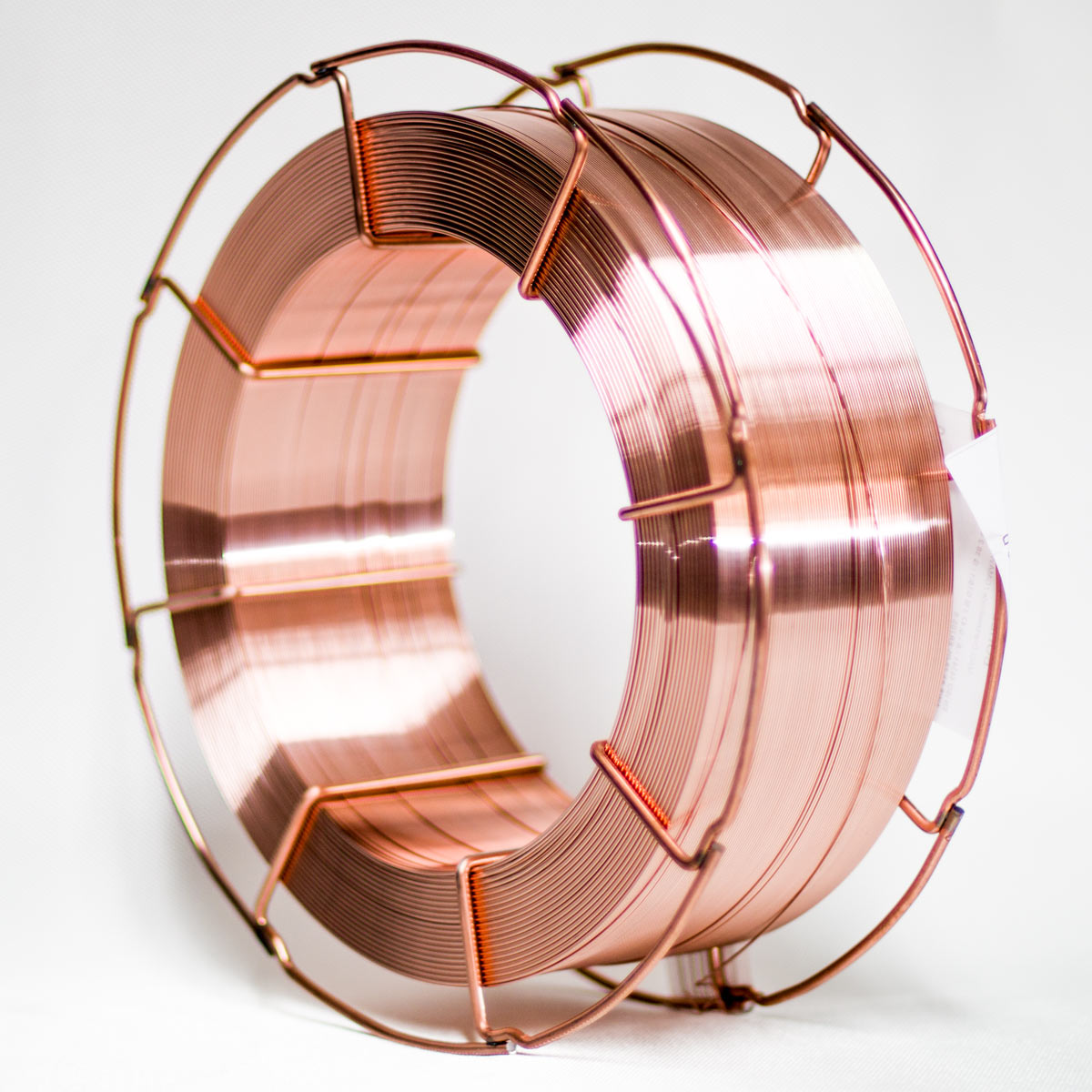

CrMo2 / 8575 / 1.7384 MSG- MIG welding wire (Ø 1,6 mm)on spool K300 (D = 300mm). Price per spool including current charges, approvals and registration details please ask. , spool = 15 kg.
Fig. may deviate
Description
Scope:
Joint welding in pressure vessel and steam boiler construction.
Base materials:
1.7380 1.8075 1.7259 1.7273
1.7276 1.7281
10 CrMo910
Standard designation:
DIN 8575: SG CrMo2
Material no.: 1.7384
EN 12070: G CrMo 2 Si
AWS designation: ~ER 90 S-B3
Mech. quality values of the weld metal (guide values):
Yield strength (Re) 450 N/mm2
Tensile strength (Rm) 550 - 650 N/mm2
Elongation (A)(Lo=5do) > 18 % Impact energy (Av) > 90 J
