EWM GOLD-SET TIG TIG AC/DC welding machine at special price - EWM Picotig 200 AC/DC TG
Our price:
UVP € 5,547.61. With us only € 4,628.64
16.6% Discount = € 918.98 Savings
(Prices incl. 19% VAT)
16.6% Discount = € 918.98 Savings
(Prices incl. 19% VAT)
Description

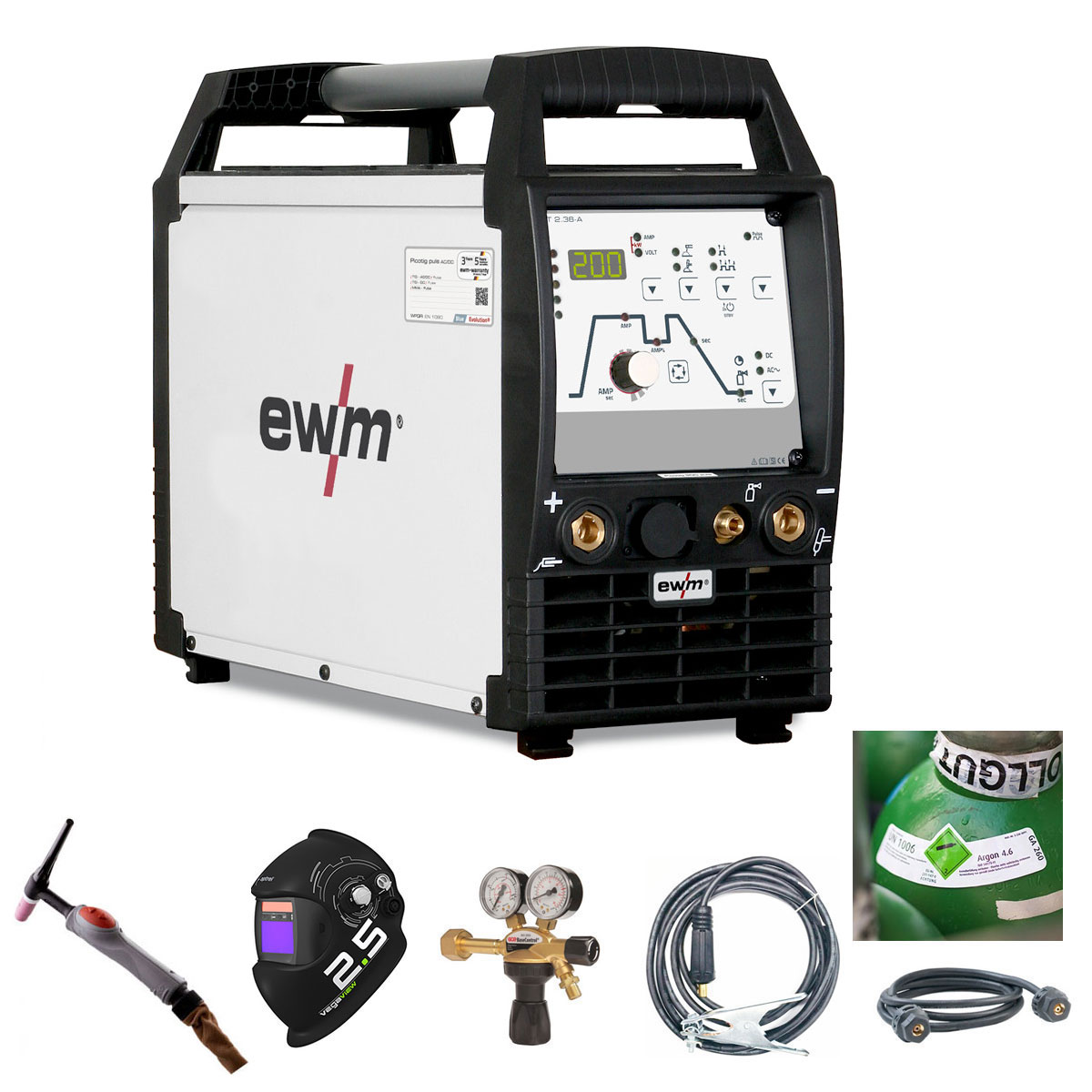

EWM GOLD-SET
- EWM Picotig 200 AC/DC 5P TG, TIG AC / DC welding machine, portable, gas, decentralized
- TIG Welding Torch SR26-4m, DD, gas cooled, 5P,
- EWM workpiece lead WK KL / Z, 25 mm², 4m ;, completely assembled,
Material: H 01 N2 neoprene, length: 4m.
- EWM GH 2x1 / 4 '' 2m - protective gas hose, with plastic nuts on both sides
equipped for tool-free installation
- Argon - CO2 pressure reducer K10 - 200 bar, 1-stage, with built-in
Staudüse, Content manometer 0 - 315/200 bar;
Working pressure gauge 0 - 30/28 l / min, with double scale
- Optrel - neo p550 welding helmet blac
- Property 10L bottle of argon, new and filled
Technical specifications | |||
---|---|---|---|
TIG / MMA | |||
Setting range for welding current | 5 A - 200 A / 5 A - 150 A | ||
Duty cycle at ambient temperature | 40 °C | ||
35 % | 200 A / --- | ||
50 % | --- / 140 A | ||
60 % | 150 A / 130 A | ||
100 % | 120 A / 110 A | ||
Open circuit voltage | 43 V | ||
Mains frequency | 50 Hz / 60 Hz | ||
Mains fuses (slow-blow) | 1 x 16 A | ||
Mains voltage (tolerances) | 1 x 230 V (-40 % - +15 %) | ||
Max. connected load | 5,6 kVA / --- | ||
Recommended generator power | 8,1 kVA / --- | ||
cos φ | 0.99 | ||
Efficiency | 85 % | ||
Dimensions machine, LxWxH in mm | 600 x 205 x 415 | ||
Weight, machine | 16,5 kg | ||
Protection classification | IP 23 | ||
Torch connection | Dezentral |
