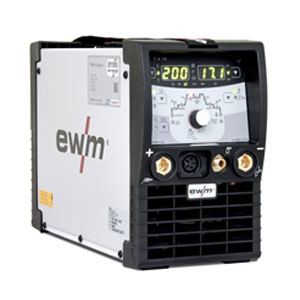

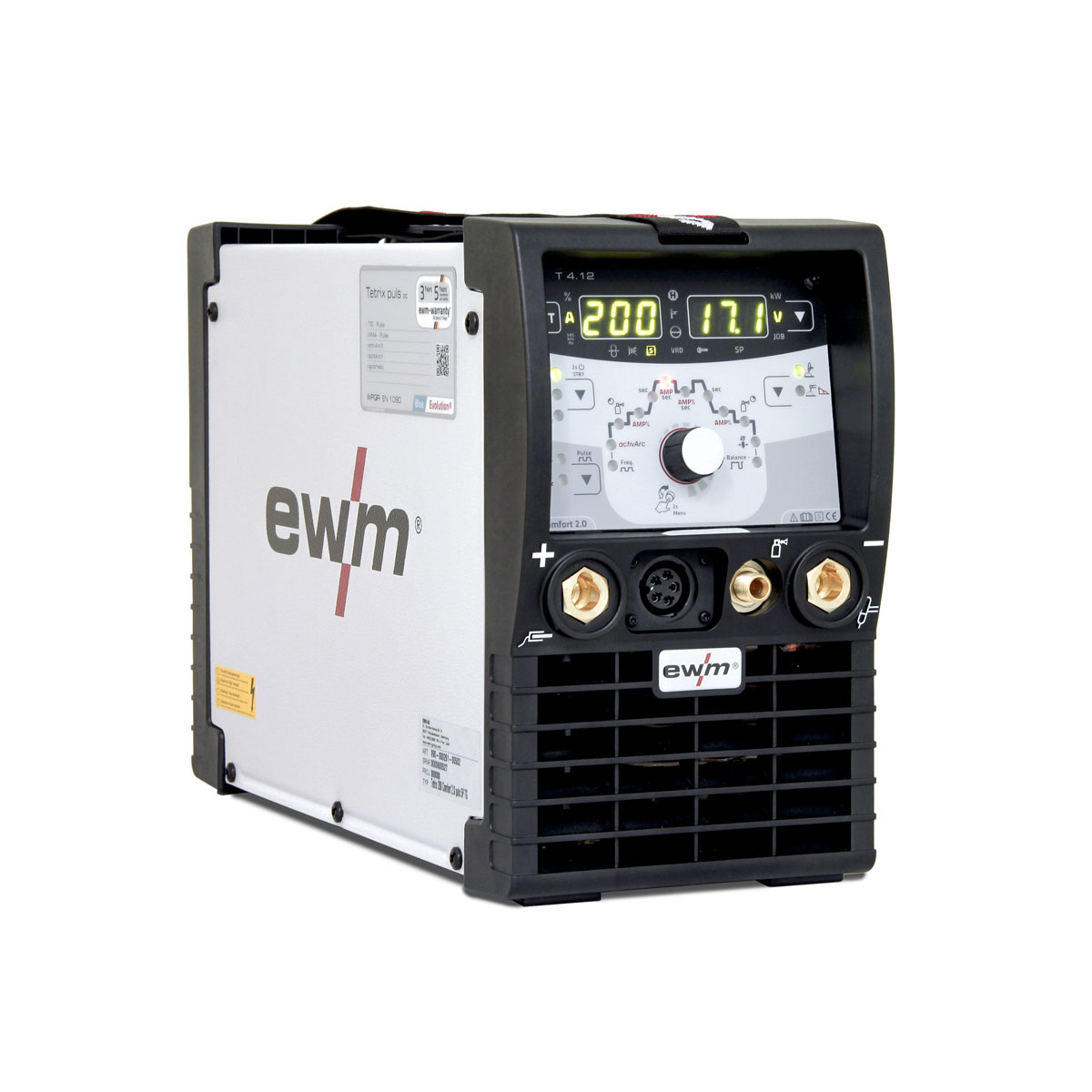

EWM Tetrix 200 DC MV Comfort 2.0 puls 5P TIG Multivolt inverter welding unit, portable, gas, decentralised, 5-pin connection socket, technical data see details.
Fig. may deviate
Our price:
UVP € 3,004.75. With us only € 2,554.04
15.0% Discount = € 450.71 Savings
(Prices incl. 19.0% VAT)
15.0% Discount = € 450.71 Savings
(Prices incl. 19.0% VAT)
Description
Delineation
- Gas-cooled DC TIG inverter welding machine
- Multivolt (MV): Can be used worldwide thanks to automatic adjustment of mains voltage (115 V/230 V)
- TIG welding
- Features characteristics for EWM activArc and EWM spotArc at no extra charge
- Electronic HF start
- TIG lift arc welding without HF
- TIG average value pulsing: the preset welding current is maintained at all times, so particularly suitable for welding as per welding procedure specification
- Adjustable pulse frequency and balance
- Non-latched/latched operation
- Reduced secondary current accessible using torch trigger
- Spot welding/tack function (spotArc/spotmatic)
- Adjustable up-slope and down-slope time
- Adjustable gas pre- and post-flow time
- MMA welding
- MMA average value pulsing
- Adjustable hot start current and hot start time
- Adjustable Arcforce
- Antistick function
- Highlights
- Energy-saving thanks to high efficiency and standby function
- Connection capability for remote control and function torch
- 3.5 m mains supply lead with 16 A shock-proof plug
- Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage
| Technical data | |||
|---|---|---|---|
| TIG / MMA | |||
| Setting range for welding current | 5 A - 150 A 5 A - 110 A | ||
| Duty cycle at ambient temperature | 40 °C | ||
| 35 % | 150 A 110 A | ||
| 60 % | 120 A 90 A | ||
| 100 % | 100 A 80 A | ||
| Open circuit voltage | 90 V | ||
| Mains frequency | 50 Hz / 60 Hz | ||
| Mains fuses (slow-blow) | 1 x 20 A | ||
| Mains voltage (tolerances) | 1 x 115 V (-15 % - +15 %) | ||
| Max. connected load | 4,1 kVA / 4,6 kVA | ||
| Recommended generator power | 6 kVA | ||
| cos Φ | 0,99 | ||
| Efficiency | 86 % | ||
| Dimensions machine, LxWxH in mm | 428 x 181 x 294 | ||
| Weight, machine | 10.8 kg | ||
| EMC class | A | ||
| Insulation class | H | ||
| Protection class | IP 23 | ||
| Approvals | CE sign , EAC sign , S sign | ||
