EWM - Tetrix 200 DC Smart 2.0 puls 8P, TIG DC welder, portable, gas, decentralised, 8-pin connection socket

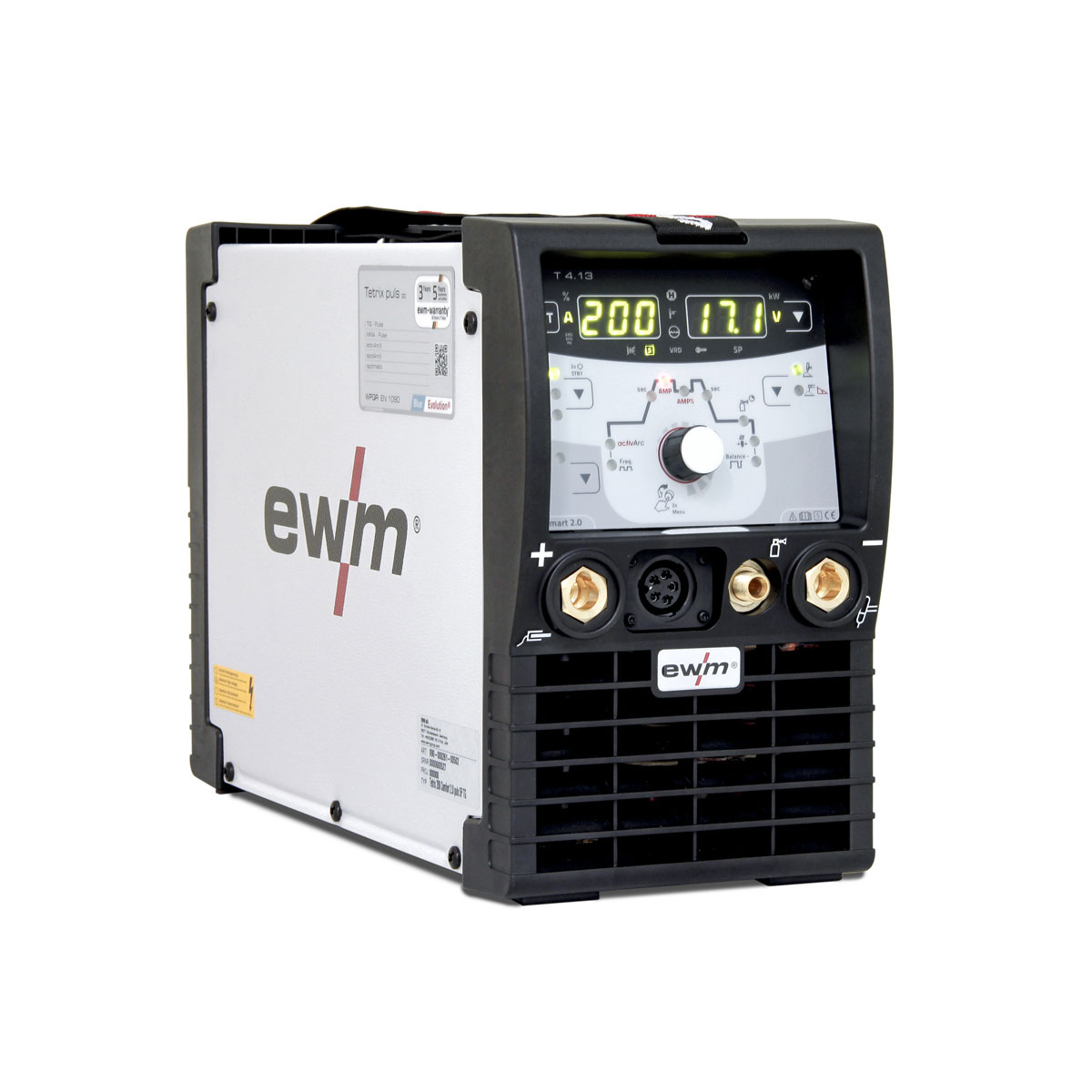

Fig. may deviate
EWM Tetrix 200 DC Smart 2.0 puls 8P, TIG-DC welding unit, portable, gas, decentralised, 8-pin connection socket, technical data see details.
Delineation
- Gas-cooled DC TIG inverter welding machine
- TIG welding
- Features characteristics for EWM activArc and EWM spotArc at no extra charge
- Electronic HF start
- TIG lift arc welding without HF
- TIG average value pulsing: the preset welding current is maintained at all times, so particularly suitable for welding as per welding procedure specification
- Adjustable pulse frequency and balance
- Non-latched/latched operation
- Reduced secondary current accessible using torch trigger
- Spot welding/tack function (spotArc/spotmatic)
- Adjustable up-slope and down-slope time
- Adjustable gas pre- and post-flow time
- MMA welding
- MMA average value pulsing
- Adjustable hot start current and hot start time
- Adjustable Arcforce
- Antistick function
- Highlights
- Energy-saving thanks to high efficiency and standby function
- Connection capability for remote control and function torch
- 3.5 m mains supply lead with 16 A shock-proof plug
- Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage
| Technical data | |||
|---|---|---|---|
| TIG / MMA | |||
| Setting range for welding current | 5 A - 200 A 5 A - 150 A | ||
| Duty cycle at ambient temperature | 40 °C | ||
| 25 % | 200 A - | ||
| 35 % | - 150 A | ||
| 60 % | 150 A 120 A | ||
| 100 % | 140 A 100 A | ||
| Open circuit voltage | 63 V | ||
| Mains frequency | 50 Hz / 60 Hz | ||
| Mains fuses (slow-blow) | 1 x 16 A | ||
| Mains voltage (tolerances) | 1 x 230 V (-40 % - +15 %) | ||
| Max. connected load | 6 kVA / 6,4 kVA | ||
| Recommended generator power | 8,1 kVA / 8,6 kVA | ||
| cos Φ | 0,99 | ||
| Efficiency | 86 % | ||
| Dimensions machine, LxWxH in mm | 428 x 181 x 294 | ||
| Weight, machine | 10 kg | ||
| EMC class | A | ||
| Insulation class | H | ||
| Protection class | IP 23 | ||
| Approvals | S sign , CE sign , EAC sign | ||
| Torch connection | Tuchel, 8-pole | ||
| Standards | IEC 60974-1, -3 and -10 CL.A | ||
