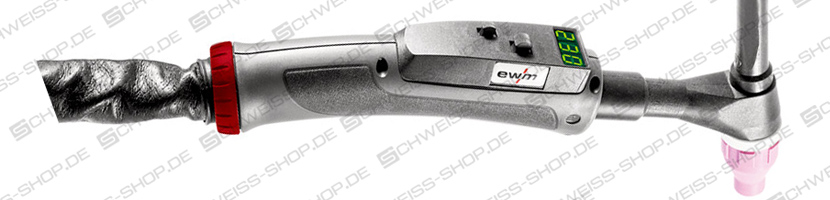

EWM TIG 450SC WD GRIP 5P RETOX XQ HFL (4 and 8 m), Water-cooled Torch holder with highly flexible hosepack (High-Flex leather), Supercool / performance-enhanced torch variant, Ergonomic GRIP handle, see variants.
TIG 450SC WD GRIP 5P RETOX XQ HFL
- Water-cooled Torch holder with highly flexible hosepack (High-Flex-Leather)
- Adjustment and display of welding current and programmes
- Supercool / enhanced performance torch variant
- Ergonomic GRIP handle for a secure and ergonomic grip
- Excellent HF safety
- Highly flexible hose package with 1 m leather protection
Retox Torch holder Tetrix XQ puls
- Equipment ex works:
- Electrode holder: Ø 2.4 mm
- Gas nozzle: Ø 9.5 mm, size 6
- Tungsten electrode E3 (purple): Ø 2.4 mm
- Torch cap "long"
Technical data
Configuration | High-flex leather |
Duty cycle DC- | 450 A / 100 % |
AC duty cycle | 320 A / 100 % |
Ø MMA | 1.6 A - 4.8 mm |
Connection poles | Tuchel, 5-pole |
Torch connection | Decentralised 35 mm² (Ø mandrel 13 mm) |
Control cable connection | Tuchel, 5-pole |
Protective gas line | G 1/4" RH, union nut |
Hose package length | 4 and 8 m |
