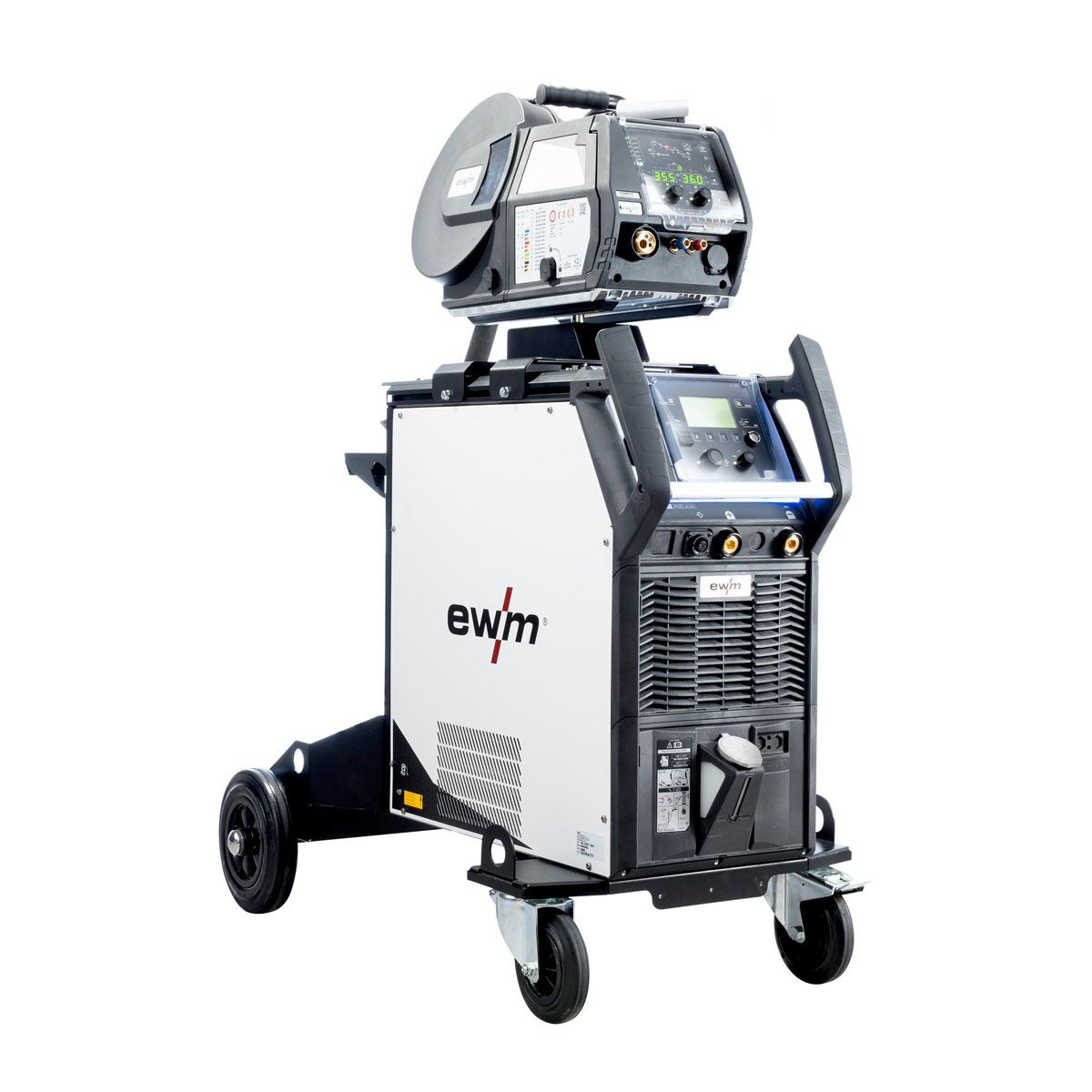

EWM Titan XQ 350 puls D EX W with Expert XQ 2.0 control, decompact, including all innovative welding processes, technical data see details.
Fig. may deviate
Our price:
UVP € 10,552.92. With us only € 8,969.98
15.0% Discount = € 1,582.94 Savings
(Prices incl. 19.0% VAT)
15.0% Discount = € 1,582.94 Savings
(Prices incl. 19.0% VAT)
Description
Titan XQ 350 pulse DW EX
- Titan XQ 350 puls decompact, including all characteristic curves and welding processes.
Optional components: (please order separately)
- Drive XQ wire feeder, Drive XQ HP
- Intermediate hose package, water-cooled, 14-pin, 1.8 m
- MIG/MAG function torch with OLED graphic display, water-cooled, X-technology, 4 m
- Coolant up to -10 °C (14 °F), 5 l,
- workpiece cable with clamp, 450 A , 60 A, 70 mm²
- Cylinder pressure reducer with manometer, 30 l
Description
- MIG/MAG inverter welding machine, pulse, with separate wire feeder
- Perfect MIG/MAG weld seams, even with long welding leads thanks to patented* Rapid Current Control technology (RCC)
- flexFit casing system: Many accessory parts and options can be fixed to the welding machine using conventional slot nuts
- LED information bar: Indicates the current operating status
- Equipment as delivered: welding machine, including wheel kit with single cylinder bracket, water cooling and 5 m mains connection lead
- All-in – no extra charge:
- With innovative EWM Synergic characteristics rootArc® XQ/rootArc® puls XQ, coldArc® XQ/coldArc® puls XQ, forceArc® XQ/forceArc® puls XQ, wiredArc XQ/wiredArc puls XQ, pulse/superPuls and Positionweld
- With Synergic characteristics for GMAW standard or pulsed welding for steel/CrNi/aluminium
- Non Synergic operation for manual setting of welding parameters
- Suitable for MMA welding, TIG welding and gouging
- 16 individually configurable programmes for each welding task (JOB)
- Infinitely adjustable arc dynamics (choke effect)
- Adjustable start and end-crater functions
- High-precision, powerful EWM eFeed 4-roll wire feed mechanism for secure feeding of all solid and flux cored wires
- Energy-saving thanks to high efficiency and standby function
- Easy, tool-free change of welding polarity
- Earth fault monitoring (PE protection)
- IP23 spray water protected
- Connection capability for remote control and PM function torch
- Optional network connectivity with ewm Xnet software via LAN or WiFi gateway
- PC interface for PC300 XQ software
- Free WPQR package for certification up to and including EXC2 in accordance with EN 1090 and for welding of unalloyed steels up to and including S355
- EP 1 563 938, EP 1 944 115, EP 0 743 126, EP 1 726 359, EP 1 640 100
| Technische Daten | |||
|---|---|---|---|
| MIG/MAG | MMA | TIG | |
| Setting range for welding current | 5 A - 350 A | ||
| Duty cycle at ambient temperature | 40 °C | ||
| 100 % | 350 A | ||
| Open circuit voltage | 82 V | ||
| Mains frequency | 50 Hz / 60 Hz | ||
| Mains fuses (slow-blow) | 3 x 25 A | ||
| Mains voltage (tolerances) | 3 x 400 V (-25 % - +20 %) | ||
| Max. connected load | 14.3 kVA | 15.4 kVA | 10.9 kVA |
| Recommended generator power | 19.3 kVA | 20.8 kVA | 14.7 kVA |
| cos f | 0.99 | ||
| Efficiency | 88 % | ||
| Dimensions machine, LxWxH in mm | 1152 x 686 x 976 | ||
| Weight, machine | 128.5 kg | ||
| EMC class | A | ||
| Insulation class | H | ||
| Protection class | IP23 | ||
| Approvals | S sign , CE sign , EAC sign | ||
| Standards | IEC 60974-1, -2 and -10 CL.A | ||
