EWM - Tetrix 300 Smart TM
Fig. may deviate
Our price:
UVP € 5,985.70. With us only € 5,087.84
15.0% Discount = € 897.85 Savings
(Prices incl. 19.0% VAT)
15.0% Discount = € 897.85 Savings
(Prices incl. 19.0% VAT)

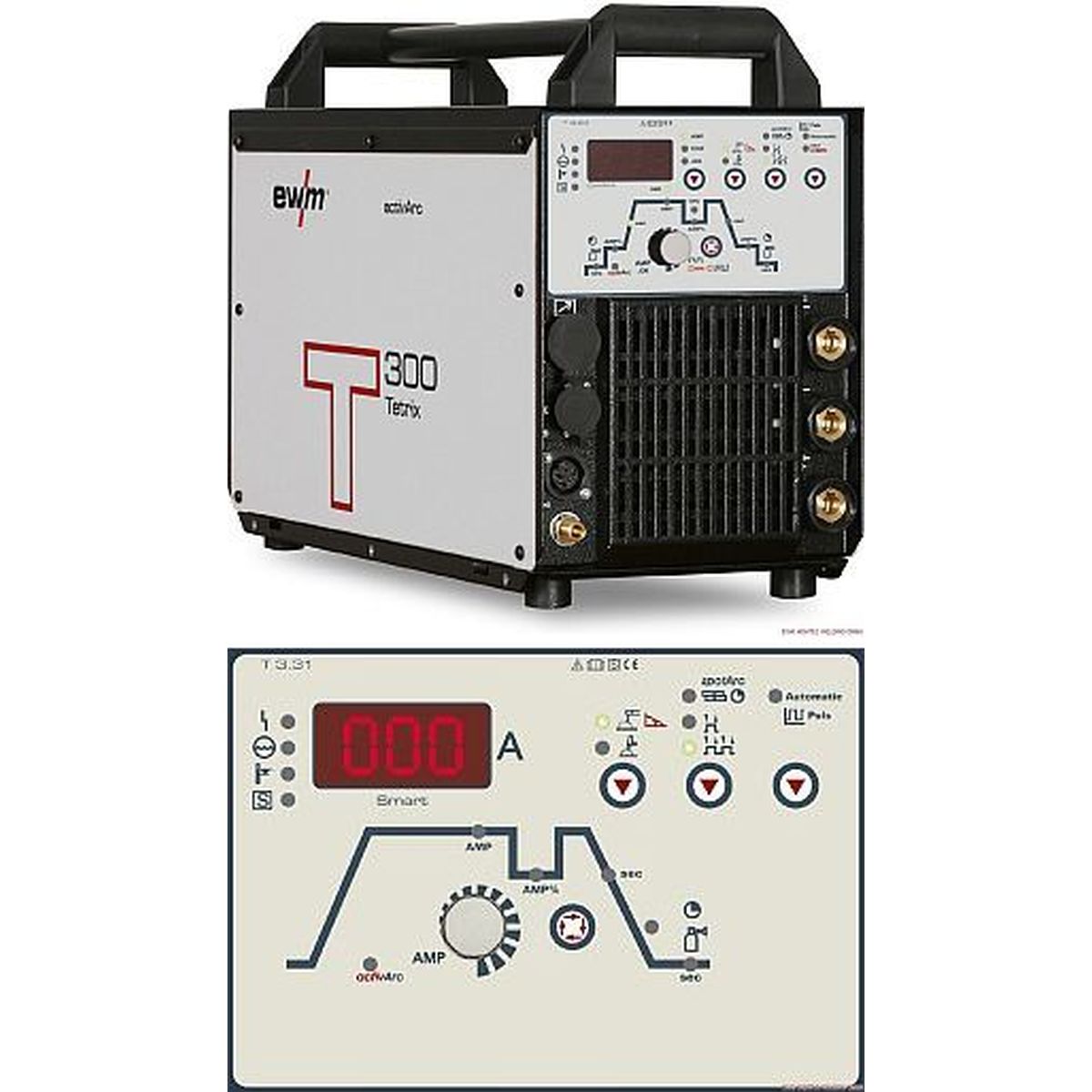

EWM Tetrix 300 Smart TM, Inverter welding machine, DC.
Description
- Inverter welding machine, DC
- TIG and MMA welding
- Modular (gas- or water-cooled)
- Gas-cooled version: Portable, including shoulder strap
- Spotmatic – saves 50% of tacking time
- Connection capability for remote control, function torch, cooling unit
- 5 m mains supply lead
- Scope of supply includes welding machine only; other components such as trolly and cooling unit can be selected from accessories!
| Technical Data | |||
|---|---|---|---|
| TIG / MMA | |||
| Setting range for welding current | 5 A - 300 A | ||
| Duty cycle at ambient temperature | 40 °C / 25 °C | ||
| 60 % | 300 A / --- | ||
| 80 % | --- / 300 A | ||
| 100% | 250 A / 270 A | ||
| Open-circuit voltage | 98 V | ||
| Mains fuses (slow-blow) | 3 x 16 A | ||
| Mains voltage (tolerances) | 3 x 400 V (-25 % - +20 %) | ||
| cos Φ | 0,99 | ||
| Efficiency | 88% | ||
| Dimensions machine, LxWxH in mm | 590 x 230 x 380 | ||
| Weight, machine | 29 kg | ||
| Protection classification | IP 23 | ||
| Torch connection | Dezentral | ||
