Acctiva - LS · 316ALS0069

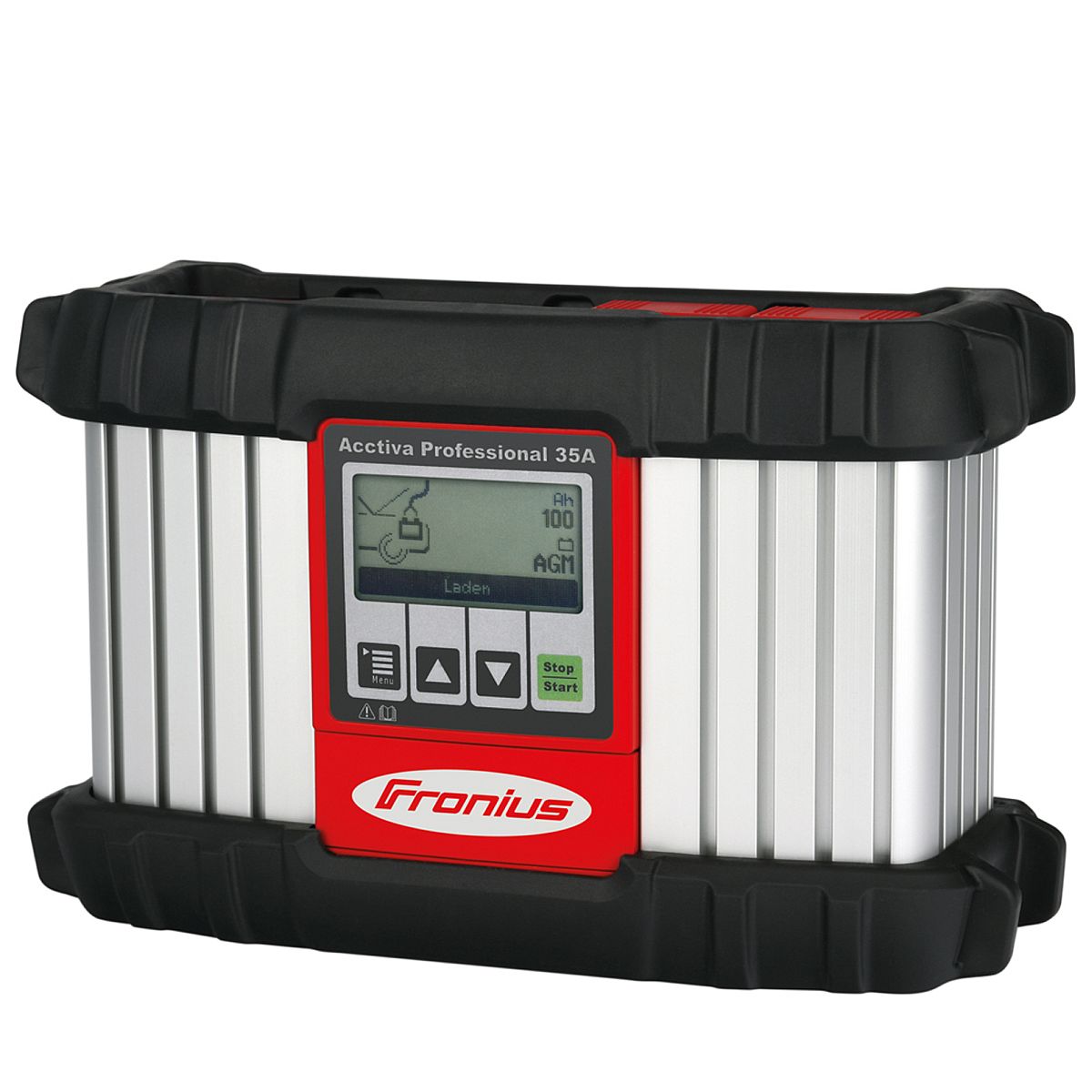

Fronius - Acctiva Professional 35A with housing, display, setup, operating instructions, power supply unit EU 2m pluggable, charging cable 10mm², 2.5m long / terminals 80A, edge protection (2x)
Description
| ACCTIVA PROFESSIONAL 35A |
The intelligent battery charging system with animated user guidance on the graphic display is the ideal tool for vehicle technicians
In addition to the main function, fully automatic charging, the battery charging system guarantees a constant voltage during diagnosis & flashing
and ensures a full battery after servicing. |
|
Applications
- Charging / diagnostics and software update:
Automatic charging and buffering of parallel consumers during the
limited service time. The battery charging system supplies up to
35 amps of current.
- Battery replacement:
The backup mode ensures that the user settings are retained in the vehicle when the battery is changed
in the vehicle.
- Power supply mode:
Guarantees an external power supply without the support of the battery.
- Refresh mode:
Regenerates deeply discharged batteries (desulphation).
Product information
- Simple operation thanks to animated graphic display.
- Flexible use in the workshop thanks to robust and compact housing.
- Plug-in charging and mains cables (available in various lengths).
- Stability and protection against paint damage thanks to edge protection.
- Future-proof use thanks to software updates via USB interface.
Areas of application
- In the workshop for cars, lorries, buses, motorbikes, emergency vehicles, construction machinery, agricultural machinery
|
| Technical data ACCTIVA Professional 35A |
| Nominal charging voltage |
6 / 12 / 24 V |
| Charging current |
35 A |
| Battery capacity |
3 - 350 Ah |
| Mains voltage |
230 V +/- 15 % |
| Charging characteristic |
IUoU/IU |
| Battery charging cable |
2.5 m with fully insulated charging terminals |
| Dimensions |
247 x 162 x 88 mm (L x W x H) |
| Weight |
2 kg |
