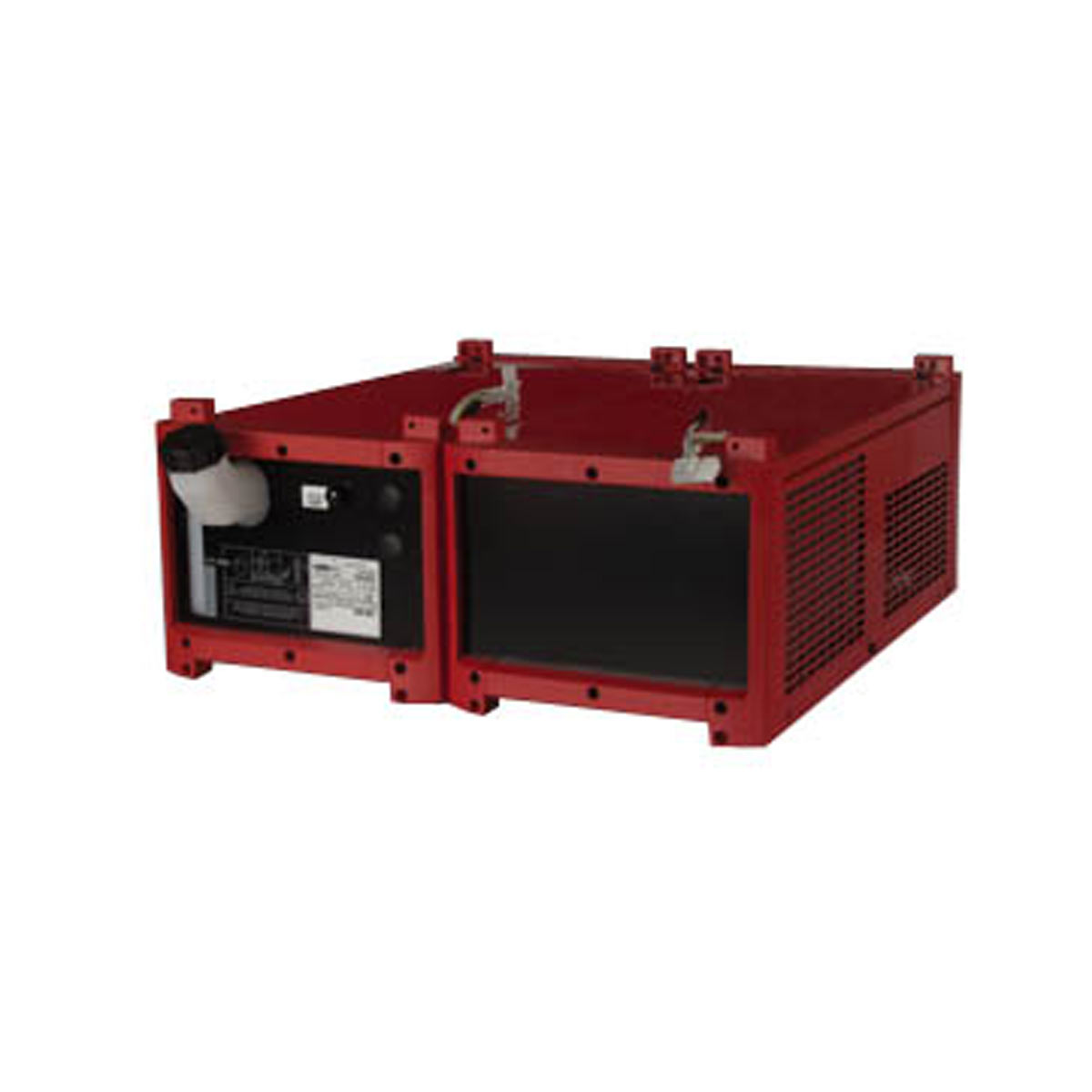

Fronius cooling unit FK 9000-R, two-part cooling unit, especially suitable for high-performance applications. For technical data see details, for options and equipment see PDF.
Fig. may deviate
Description
The FK 9000 R cooling unit is especially suitable for high-performance applications
The cooling unit FK 9000 consists of two parts, which are specially designed for mounting on the stand console.
The division into two parts has the advantage that each part of the FK 9000 R is no wider than a power source. Depending on the application, the two parts can be accommodated in a particularly space-saving way.
- For parallel operation of two power sources TransSynergic 4000/5000 / TransPuls-Synergic 4000/5000 with up to 900 A (power sharing)
- In combination with a TransSynergic / TransPulsSynergic 5000, e.g. for high welding power at high ambient temperature
- In combination with a TransTig / MagicWave 4000 / 5000, e.g. for high welding power at high ambient temperature or plasma applications
The cooling unit FK 9000 consists of two parts, which are specially designed for mounting on the stand console.
- Part 1 contains the coolant pump and the coolant tank
- Part 2 contains the heat exchanger
- Part 1 and part 2 are coupled to each other via a connecting line
The division into two parts has the advantage that each part of the FK 9000 R is no wider than a power source. Depending on the application, the two parts can be accommodated in a particularly space-saving way.
| Technical data | |
|---|---|
| Weight | 28 kg |
| Dimension / height | 2 x 250 mm |
| Dimension / width | 2 x 290 mm |
| Dimension / length | 2 x 725 mm |
| Maximum flow rate | 5 l/min |
| Max. Pump pressure | 6 bar |
| Cooling capacity [at 40C and 1l/min] | 1650 W |
| Cooling capacity [at 20°C and 1l/min]td> | 2730 W |
| max. delivery head | 45 m |
| Coolant capacity | 9 l |
| Mains frequency | 50/60 Hz |
| Mains voltage [+/-10%] | 2 x 380-415 V |
| Protection class | IP 23 |
