TransSteel/Pulse · 1858TSP0008

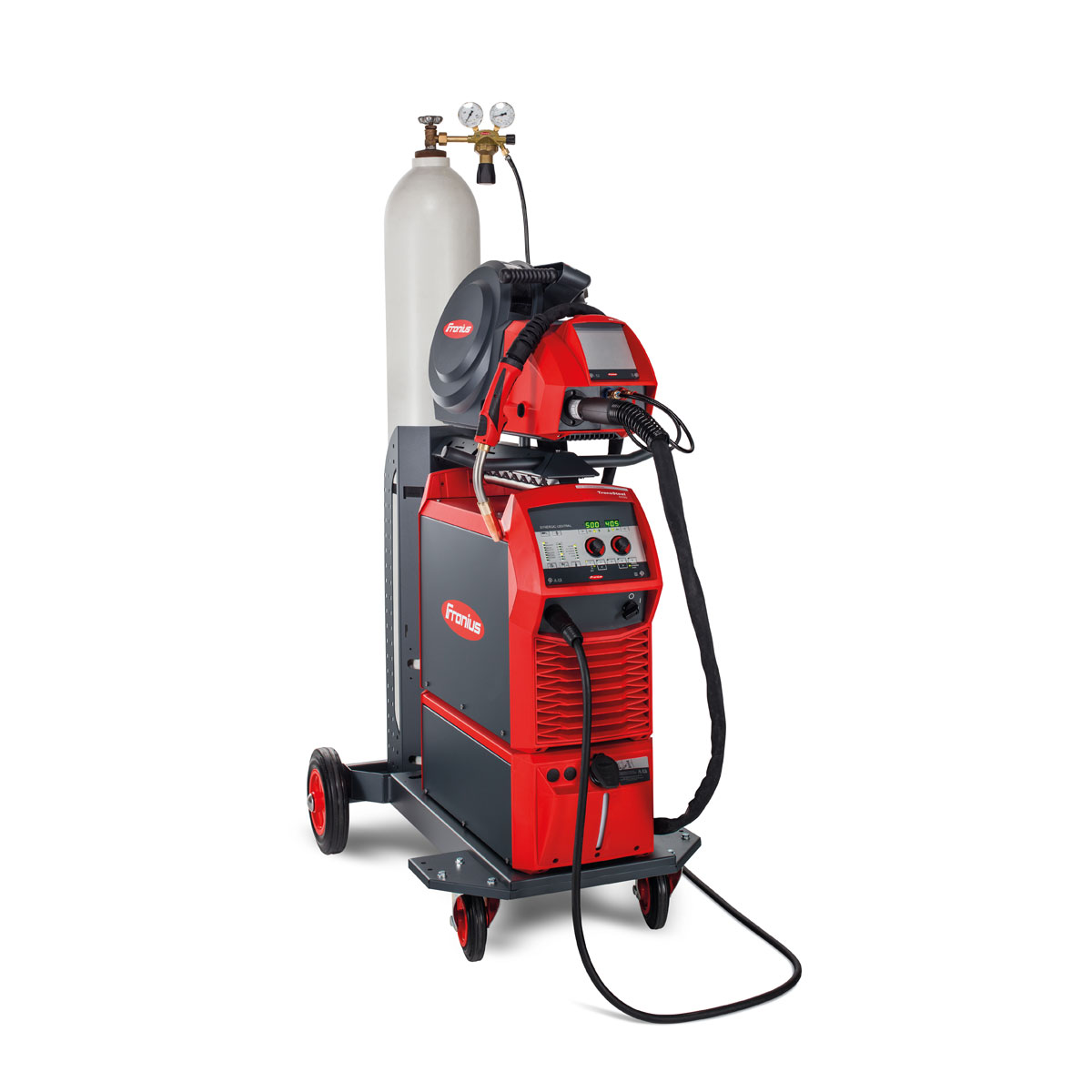

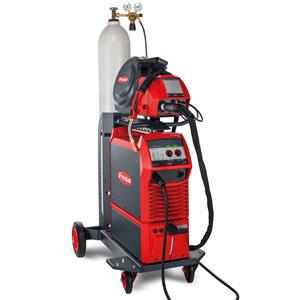

Fronius complete system TransSteel 5000 Pulse - Pro, Ready to weld in three steps, 70% less rework with Pulse and Synchro-Pulse mode, Welding current: 10 - 500 A, See details for components and technical data.
Fig. may deviate

Description

Components

  • TransSteel 5000 Pulse power source
  • Cooling unit FK 5000
  • Wire feed unit VR 5000 Remote 4R/G/FSC Synergic
  • Feed roller FSR U 1.2
  • PickUp 5000 trolley
  • E-Set pivot mount VR5000
  • Connection hose package W/1.2m/70mm² for VR4000/VR 5000/VR 7000
  • Manual welding torch MTW 500i / FSC/4,5m/45°/LED
  • Initial equipment set MTW5000 Fe/1,2 also for Robacta MTG5000
  • Earth cable 70mm² 4m 600A 35% Plug 70mm² Earth terminal
  • Pressure reducer Ar/CO2 Standard; 3-30 l/min; W21,8 x 1/14" I.h. (AT, DE, CH, CZ, SLO, ...)
  • DL Commissioning
  • DL FMP mounting Inverter

Recommended areas of application

  • Steel, apparatus and mechanical engineering
  • Shipbuilding & Offshore
  • Special vehicle construction
  • Construction machinery
  • Rail vehicle construction

Recommended base materials

  • Steel
  • Aluminium

Process

  • MIG/MAG welding
  • Electrode welding

Technical data

Dimension / width 300mm
Weight 32,5kg
Dimension / Height 497mm
Dimension / length 747mm
Mains frequency 50-60Hz
Mains fuse 35A
Protection class IP23
Open circuit voltage 65V
Mains voltage [+/-10%] 3 x 400V / 460V
Working voltage range 14,5-39,5V
Welding current / duty cycle [10min/40C] 360A / 100%
Welding current / duty cycle 500A / 40%
Welding current maximum 500A
Welding current minimum 10A
