AC/DC iWave · 1968AIW0008

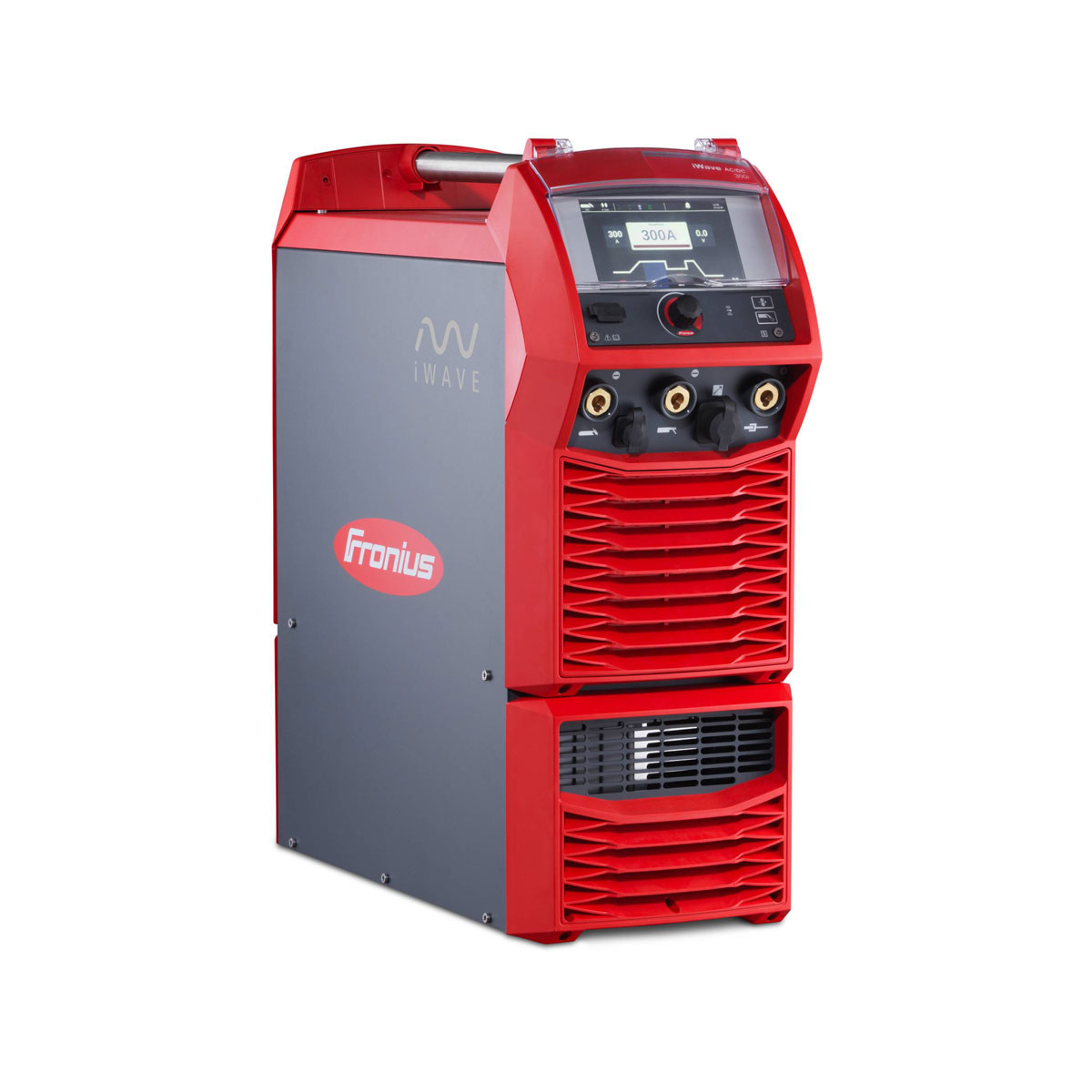

Fronius iWave 300i AC/DC, water-cooled/gas-cooled, 300 A, connects to other devices (hard hat, remote control or cell phone) via Bluetooth, wireless LAN and NFC. Digitized TIG AC/DC power source.
Fig. may deviate

Description

Fronius iWave 300i AC/DC

Highest quality - with every weld seam and with every material: Through
targeted heat input and an improved ignition function, iWave offers you
maximum control over your arc and significantly reduced ignition delays.
All controls of the iWave series are also designed for maximum control.
are designed for maximum control. The result is intuitive operation that
allows you to concentrate fully concentrate on your welding challenge.
You have the a wide variety of welding challenges? Then iWave
Multiprocess PRO is the ideal choice: in addition to all conceivable TIG
functions you can also weld all MIG/MAG process variants.
iWave: Absolute freedom to unleash your welding potential

Maximum control over the weld pool
With CycleTIG (Software Option), you control the arc and therefore the heat
input to the maximum extent. The short weld times the weld pool safely and
easily - and can weld even the thinnest materials with ease materials with
ease.

Graphic-dynamic menu navigation - in over 30 languages.
Without detours. But self-explanatory. We have developed intuitive menu
navigation so that you can make the desired settings directly and safely during
welding settings directly and safely during welding.

One device for all processes (iWave 300i - 500i)
iWave and Multiprocess PRO - this is your new absolute freedom when welding.
In addition to all TIG functions, you can weld all MIG/MAG process variants
with just one device (option). Take advantage of the modular concept and expand
your high-tech welding machine platform with the Welding Packages Standard,
Pulse, PMC, LSC or CMT.

Up to 71 % less ignition delay
Fast and above all reproducible ignitions. Regardless of the material
composition and without any manual adjustment of the ignition parameters.
This is what RPI auto - our intelligent ignition function - offers.

Contactless data transmission and authentication
Ready for Industry 4.0 and everything that is yet to come: iWave supports
the most important connection standards for optimal the most important
connection standards for optimal use.

Technical specifications
  iWave 300i AC/DC
weight
65,5kg
Dimension / width 300,0mm
Dimension / height 740,0mm
Dimension / length 706,0mm
Open circuit voltage 96V
Maximum welding current 300A
Welding current minimal 3A
Working voltage range 10,1-22,0V
power frequency 50-60Hz
mains voltage 400V
Welding current / duty cycle [10min / 40C] 300A / 40%
Welding current / duty cycle [10min / 40C] 260A / 60%
Welding current / duty cycle [10min / 40C] 240A / 100%
