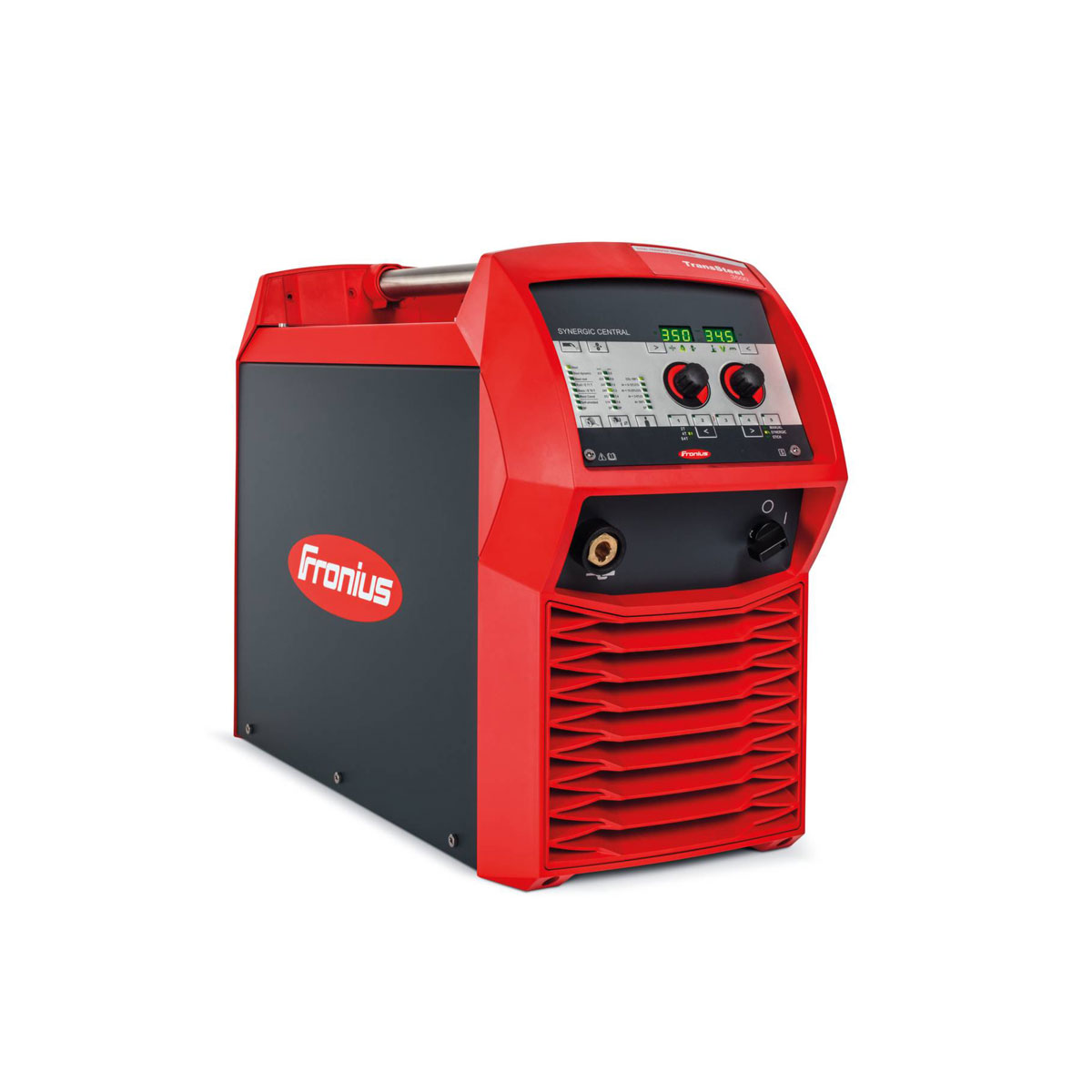

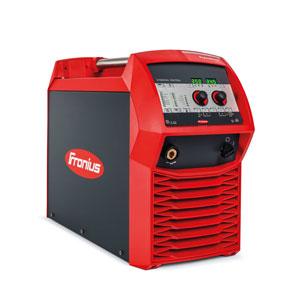

Fronius - power source TransSteel 3500 Syn, TS3500
Fig. may deviate
Description
Fronius TransSteel 3500 Syn power source, robust and reliable, welding current: 10 - 350 A, see details for technical data.
|
New manual welding torches for the TransSteel series are only available with FSC connection. For F/F++ connection please use AL/AW torch series. (Attention: UpDown and JobMaster not possible) |
|
Standard equipment
|
|
Recommended areas of application
|
|
Recommended base materials
|
|
Process
|
| Technical data |
| Dimension / width | 300mm |
| Weight | 28,2kg |
| Dimension / Height | 497mm |
| Dimension / length | 747mm |
| Mains frequency | 50-60Hz |
| Mains fuse | 35A |
| Protection class | IP23 |
| Open circuit voltage | 60V |
| Mains voltage [+/-10%] | 3 x 400V / 460V |
| Working voltage range | 14,5-36,4V |
| Welding current / duty cycle [10min/40C] | 250A / 100% |
| Welding current / duty cycle | 350A / 40% |
| Welding current maximum | 350A |
| Welding current minimum | 10A |
