Fronius - RC Panel Basic remote controller / Bluetooth

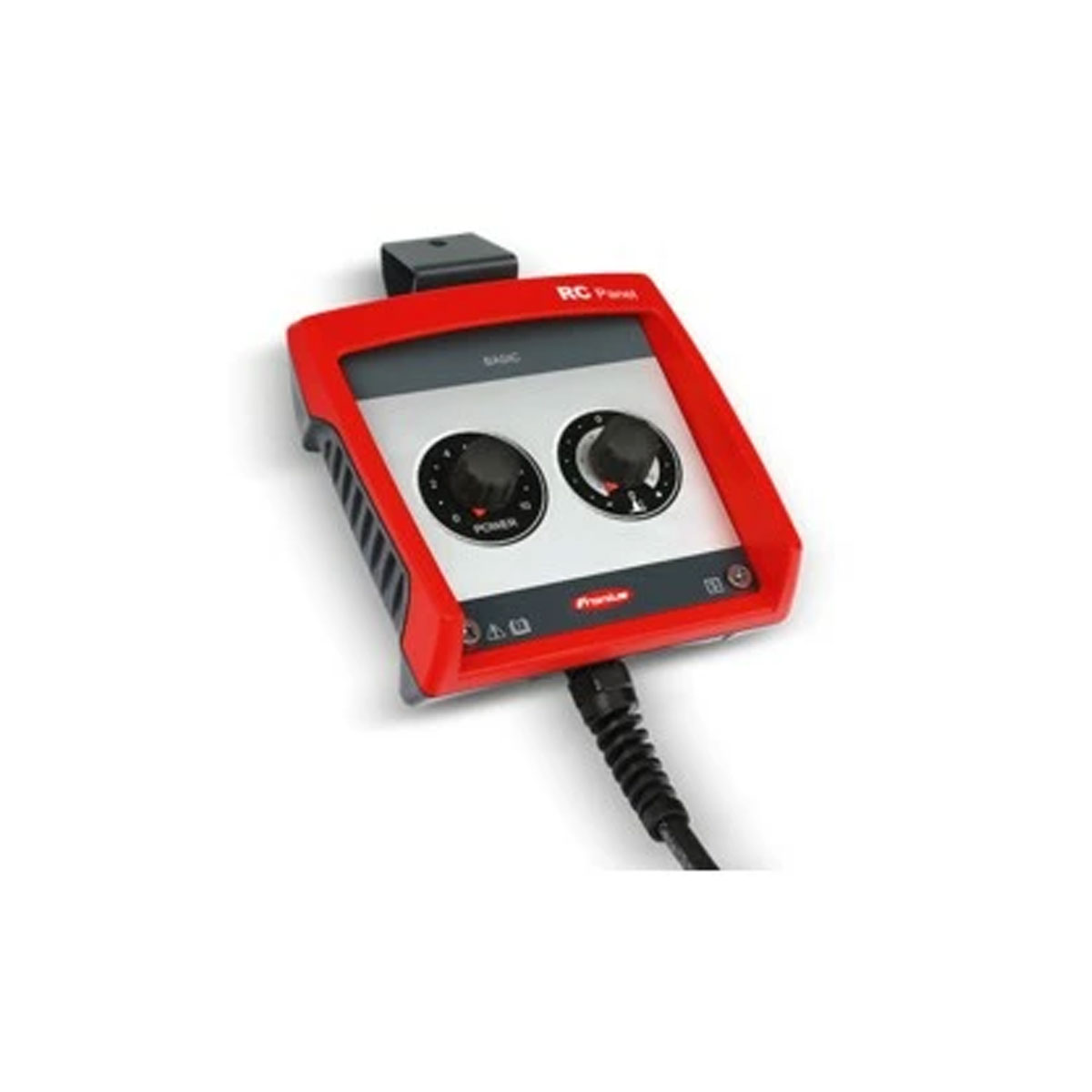

Fig. may deviate
Fronius remote controller RC Panel Basic / Bluetooth
Device concept
The remote control can be used with the following system components:
RC Panel Basic with SpeedNet connection socket
- System components from the TPS/i series
RC Panel Basic /BT
- System components from the TPS/i series
- System components from the TT/MW series (with Bluetooth function)
- Only in certified countries
RC Panel Basic TIG/TMC with TMC connection socket
- System components from the TT/MW series (with TMC connection socket)
- System components from the TP series (with TMC connection socket)
When using the remote control, the parameters are set and functions
selected depending on the welding process and power source.
| RC Panel Basic /Bluetooth | |
|---|---|
| Supply voltage | + 24 V DC |
| Connection to power source | Bluetooth version BLE 4.0 |
| Protection class | IP 44 |
| Temperature range | -10 - +40 °C +14 - +104 °F |
| Mark of conformity | CE, CSA |
| Dimensions (l x w x h) | 160 x 150 x 70 mm 6.3 x 5.91 x 2.76 |
| Weight | 0,64 kg 1.41 lbs. |
