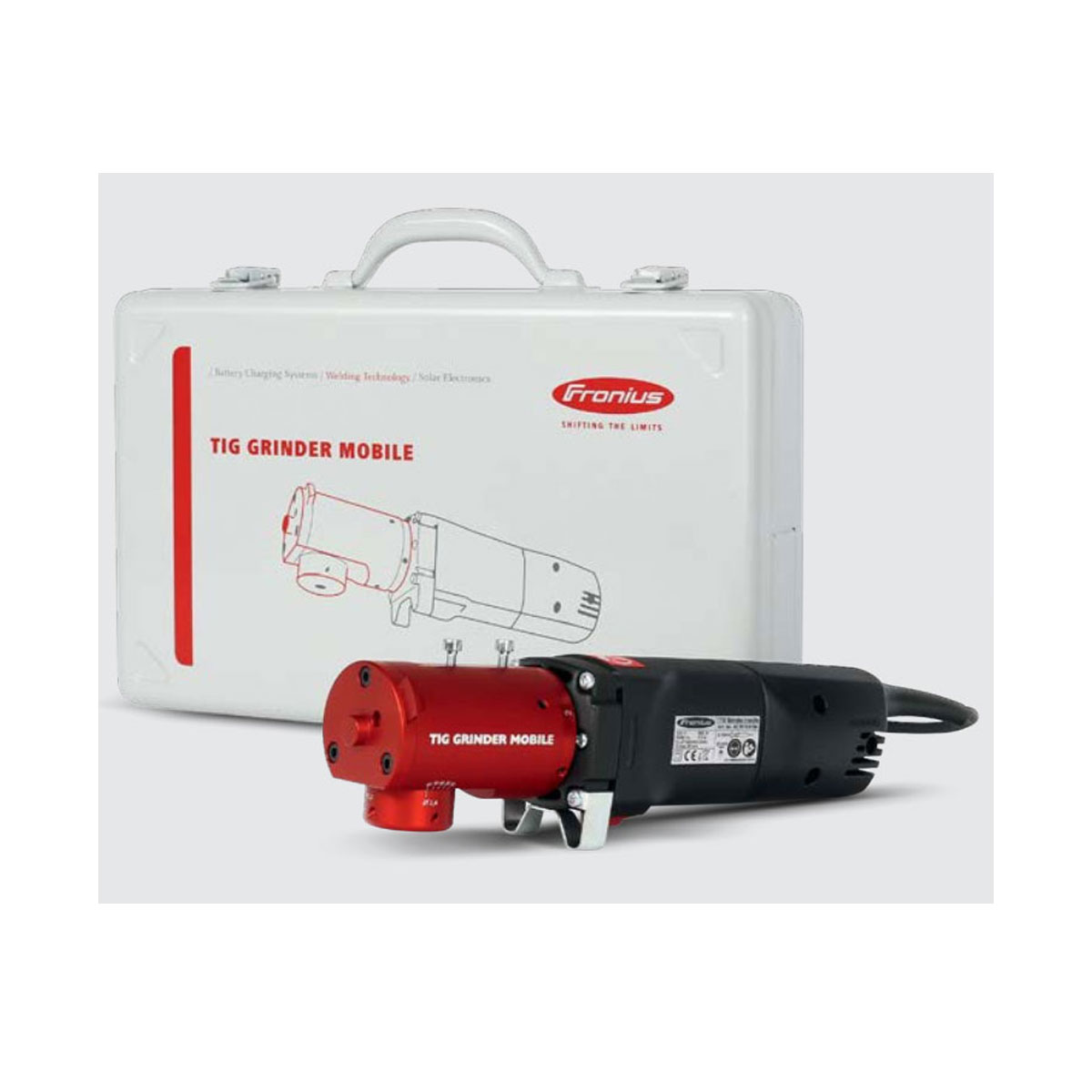

Fronius - TIG Grinder Mobile grinding tool set, In practical carrying case
Fig. may deviate
Fronius TIG Grinder Mobile Grinder Set, In the practical transport case you will find all the necessary parts for use on construction sites.
Fronius TIG Grinder Mobile Grinder Set
In the practical transport case you will find all the necessary parts for the
Use on construction sites. Electrode grinding without additional holder
possible. The grinding wheel is double-sided to three setting positions
can be used (6 grinding marks possible). Due to multifunctional cover
electrodes can also be ground flat.
|
Technical specifications |
|||
|---|---|---|---|
| Mains voltage | 230 V | ||
| Mains frequency | 50 / 60 Hz | ||
| Motor output | 500 Watt | ||
| Rotational speed | 27000 rpm | ||
| grinding angle | 20 bis 180 Grad | ||
| Sleeve-Ø | 43 mm | ||
| Tension rod-Ø | 6 mm | ||
| Grinding Wheel-Ø | 50 mm | ||
| Weight | 2075 g | ||
delivery : device with grinding head 1,6mm, 2,4mm, 3,2mm, electrode holder for short electrodes, tool (allen key and fork wrench), mounting bracket, suction adapter
