Fronius - TPS 400i (without Welding Package)

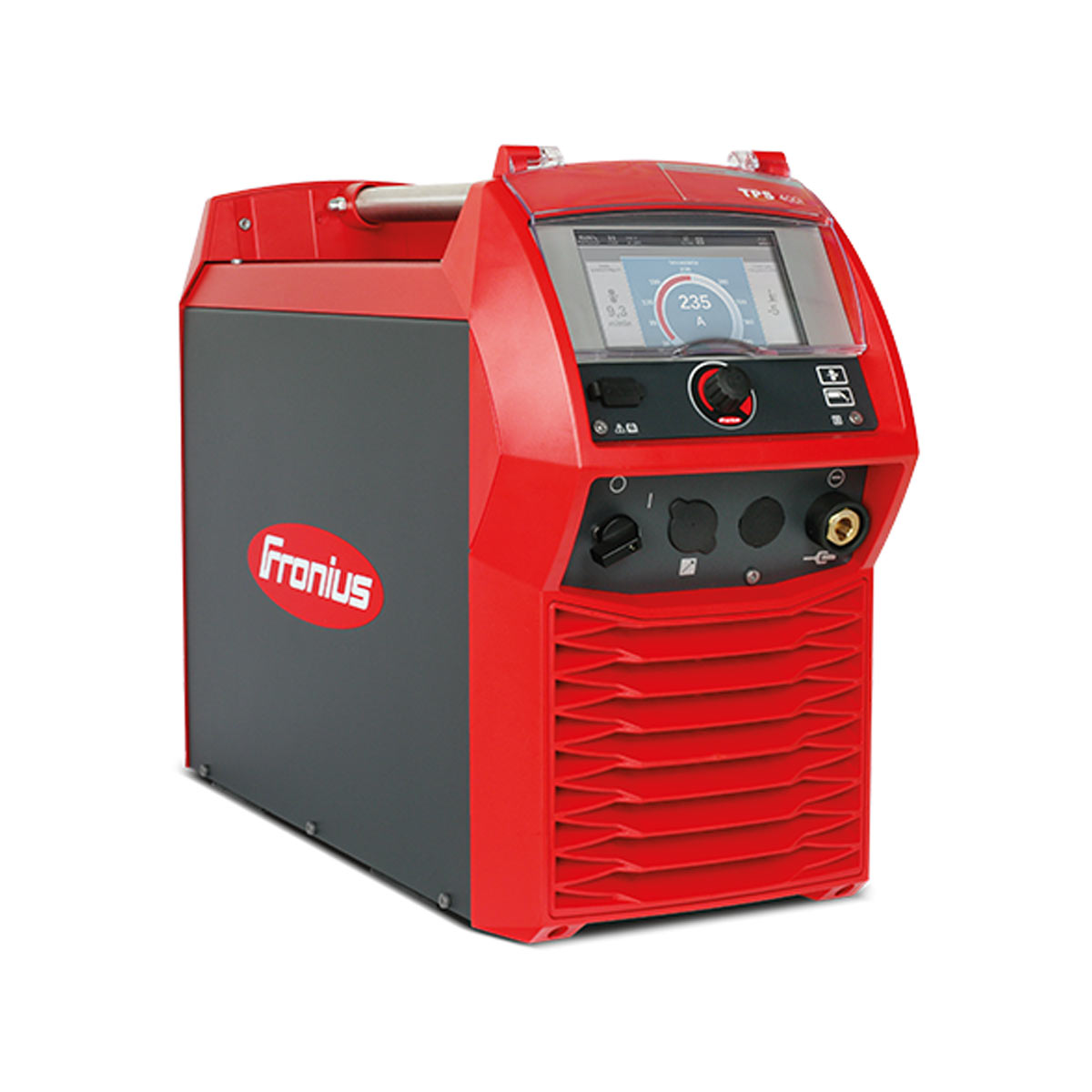

Fig. may deviate
Description
Fronius TPS 400i (without Welding Package)
Standard equipment
Synergic operation
7 '' graphic display
easiest rotary pushbutton controller operation
Logical user guidance (plain text, Wizard's)
Multilingual
Easy Jobs
Protective cover operating panel
USB port
Ethernet port
Temperature-controlled fan
S mark, CE mark
Inching gas and energized
Options
Welding Process Pulse
Welding Process LSC - Low Spatter Control
Welding Process PMC - Pulse MultiControl
| Technical specifications |
| Dimension / width | 300mm |
| weight | 36,45kg |
| Dimensions / Height | 510mm |
| Size / Length | 706mm |
| power frequency | 50-60Hz |
| Open circuit voltage | 73V |
| Mains voltage [+/- 10%] | 3 x 400V |
| Working voltage range | 14,2-34V |
| Welding power / duty [10min / 40C] | 320A / 100% |
| Welding power / duty [10min / 40C] | 400A / 40% |
| Welding power / duty [10min / 40C] | 360A / 60% |
| Welding current max | 400A |
| Welding current minimal | 3A |
