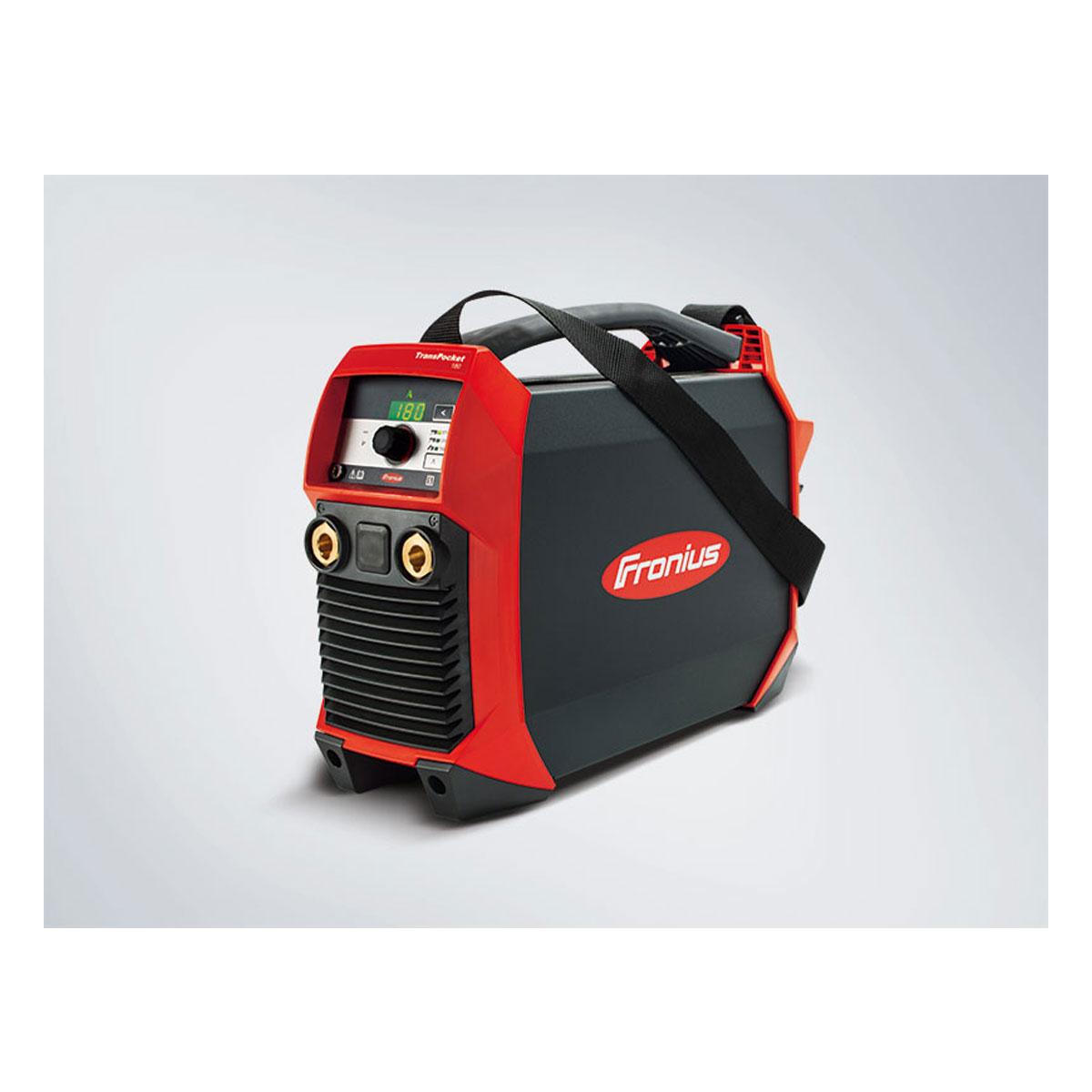

Fronius TransPocket 180 RC/EF
Fig. may deviate
Description
Fronius TransPocket 180 RC/EF
- robust and mobile with 8,7 kg/19.3 lb
- perfect welding results
- multivoltage variant
The TransPocket 180, small and robust, is a fully digitally controlled
manual electrode welding machine with resonant intelligence. The ideal
characteristic ensures the arc is always stable, even with long mains
leads of up to 100 metres or fluctuating mains voltages - with maximum
energy efficiency. The TransPocket 180 is guaranteed to weld all
electrode types up to 4 mm – including welding of cellulose electrodes.
The power source is equipped with a remote control connection, and can
therefore be controlled directly on-site.
| Technical Data | |
| Mains voltage - 20 % / + 15 %, 50/60 Hz | 230 V |
| Mains fuse protection (slow blow) | 16 A |
| Maximum primary current (40 % d.c.) | 25 A |
| Maximum primary power (kVA) | 5.75 kVA |
| Cos phi | 0.99 (180 A) |
| Efficiency | 89 % ( at 120 A) |
| Welding current range Rod electrode | 10 - 180 A |
| Welding current range TIG | 10 - 220 A |
| Welding current Rod electrode | |
| 10 min/40°C (104°F) | 40 % d.c at 180 A |
| 10 min/40°C (104°F) | 60 % d.c. at 150 A |
| 10 min/40°C (104°F) | 100 % d.c. at 120 A |
| Welding current TIG | |
| 10 min/40°C (104°F) | 40 % d.c. at 220 A |
| 10 min/40°C (104°F) | 60 % d.c. at 150 A |
| 10 min/40°C (104°F) | 100 % d.c. at 120 A |
| Open-circuit voltage | 101 V |
| Standardised working voltage Electrode | 20.4 - 27.2 V |
| Standardised working voltage TIG | 10.4 - 18.8 V |
| Degree of protection | IP 23 |
| Dimensions L x W x H | 435 x 160 x 310 mm 17.1 x 6.3 x 12.2 in |
| Weight kg/lb | 8.7 kg/19.3 lb |
