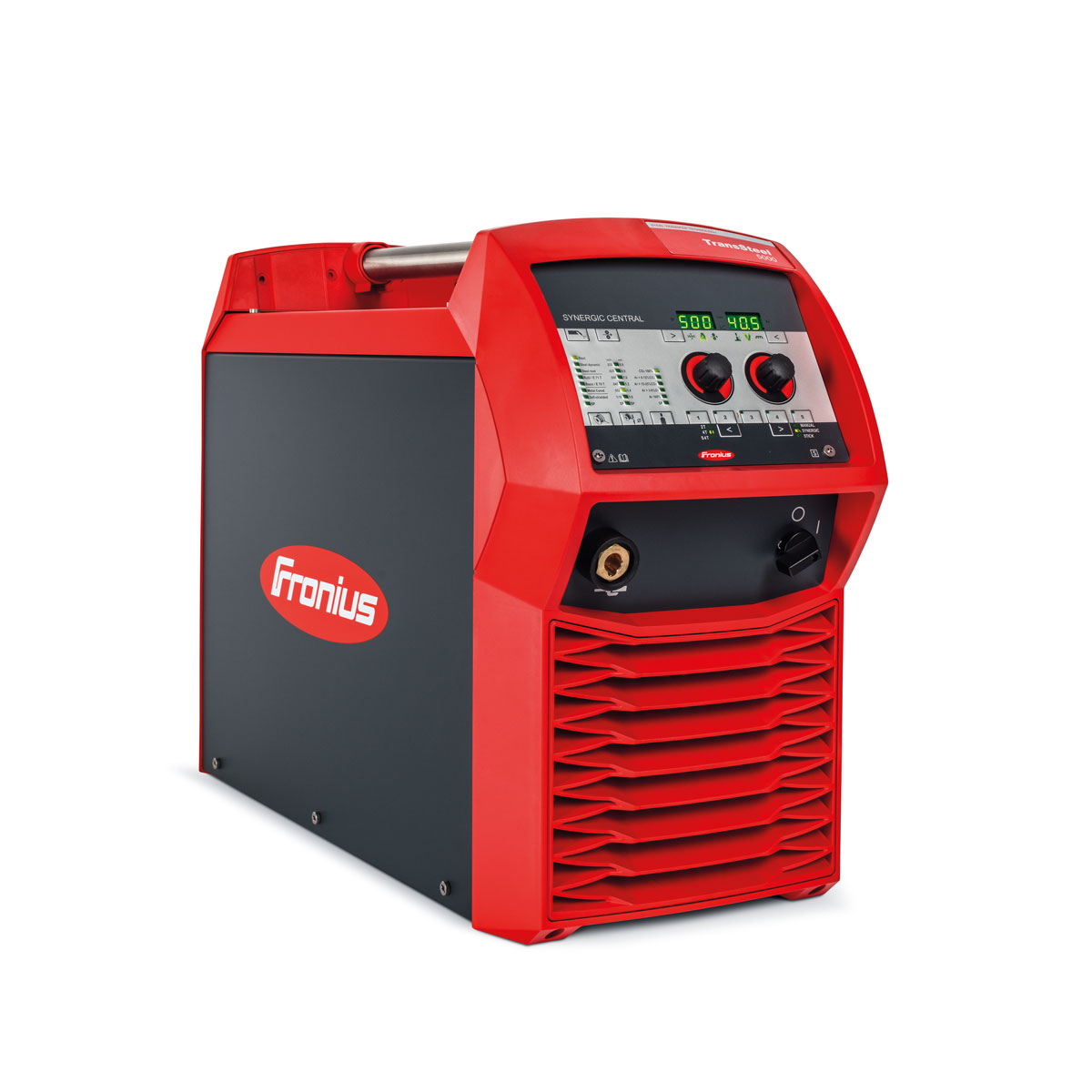

Fronius - TransSteel 4000 Pulse welder, Ready to weld in three steps, 70% less rework with Pulse and Synchro-Pulse mode, Welding current: 10 - 400 A
Fig. may deviate
Description
Fronius TransSteel 4000 Pulse welding machine, ready to weld in three steps, 70% less rework with the pulse and synchro-pulse mode, welding current: 10 - 400 A, components and technical data see details.
TransSteel 4000 Pulse
- Ready for welding in three steps
- High quality burner range suitable for high performance and
long service life
- EN 1090 compliant
- Spot and interval welding as standard
- Comfort Wire for independent wire threading without öffnen
the motor plate
- 70% less rework with the Pulse and Synchro-Pulse mode
Recommended fields of application
Steel, apparatus and mechanical engineering
Shipbuilding & Offshore
Special vehicle construction
Construction machinery
Rail vehicle construction
Recommended base materials
Steel
Procedure
MIG/MAG welding
Electrode welding
| Technical specifications |
| Weight | 32,5kg |
| Dimension / Width | 300,0mm |
| Dimension / Height | 497,0mm |
| Dimension / Length | 747,0mm |
| Mains frequency | 50-60Hz |
| Mains fuse | 35A |
| Mains voltage | 3 x 380V / 400V / 460V |
| Working voltage range | 14,5 - 34V |
| Mark of conformity | CE / S |
| Line voltage tolerance | -10 / +15% |
| Minimum welding current | 10A |
| Maximum welding current | 400A |
| Welding current / duty cycle [10min/40C] | 400A / 40% |
| Welding current / duty cycle [10min/40C] | 370A / 60% |
| Welding current / duty cycle [10min/40C] | 340A / 100% |
| Open circuit voltage | 65V |
