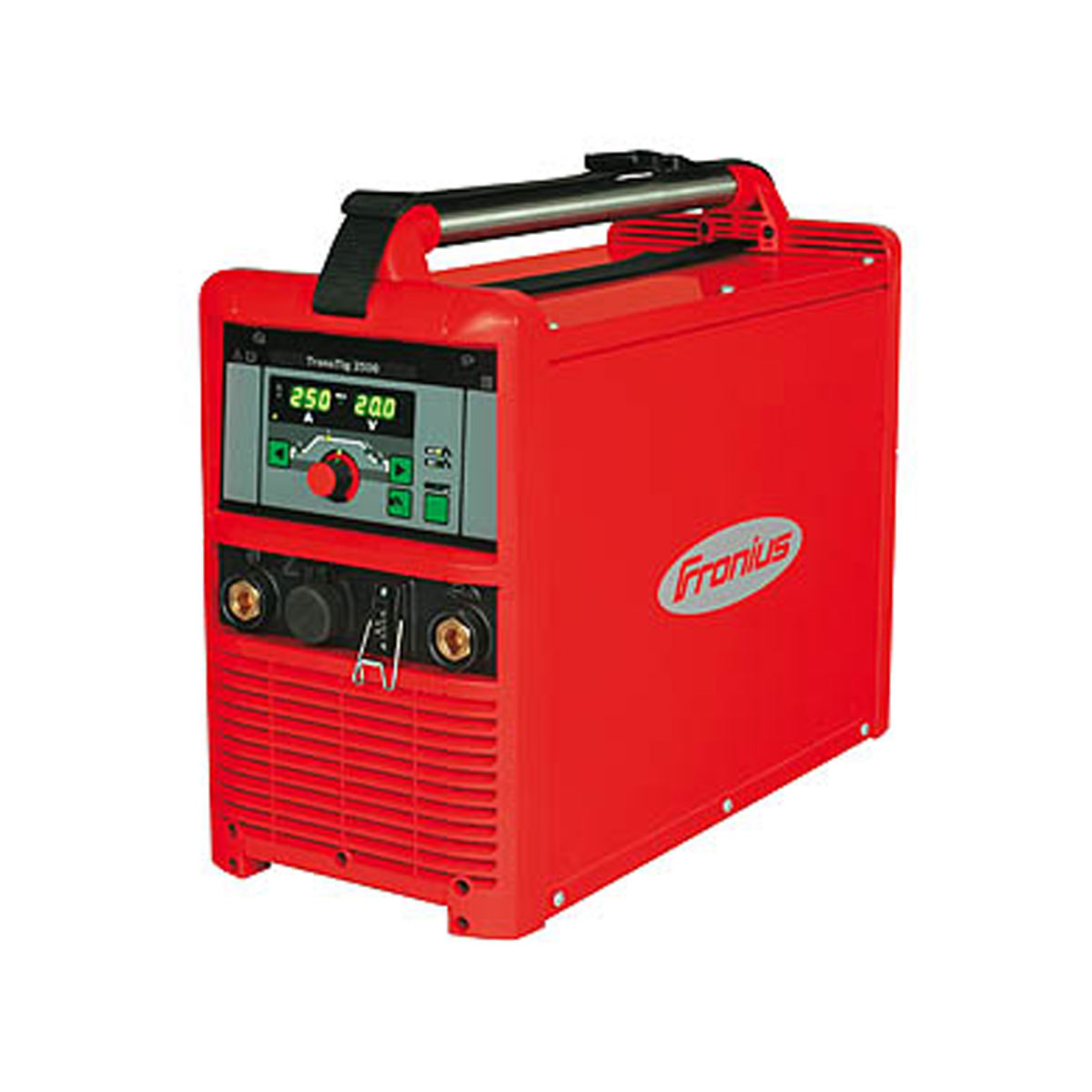

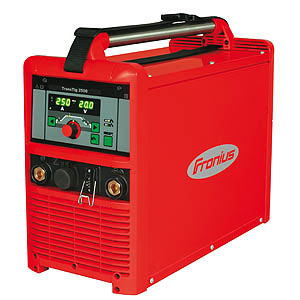

Fronius TransTig 3000 Job G/F, F++ connection, 300 A at 24.2 kg, welds low-alloy and high-alloy steels and non-ferrous metals. See details for technical data.
Fig. may deviate
Description
Standard equipment
- Automatic cooling unit switch-off
- Touch ignition / HF switchable
- Gas test function
- Job operation (only for job version)
- Suitable for generators
- Temperature-controlled fan
- UpDown control via welding torch
- Overtemperature protection
- 2-stroke operation, 4-stroke operation
- Spot operation/pulsed operation (only for job variant)
- Digital display
- TAC tacking programme
- Earth-fault monitoring
- TIG-DC
- Manual electric welding
- Remote controls
- Calibration document
- Cold wire feed (only for job variant)
- Robot interface (only for job variant)
- JobMaster TIG (only for job variant)
- Structural steels
- CrNi steels ferritic / austenitic
- Duplex steels
- Nickel-based materials
- Magnesium materials
- Copper materials
- Special materials
- Plant, container, machine and steel construction
- Industrial plant and pipeline construction
- Maintenance, repair and assembly
- Paper and chemical plant construction
- Automotive and supplier industry
- Robot welding
| Technical data | |
|---|---|
| Dimension / height x width x length | 435 x 250 x 580 mm |
| Weight | 24,2kg |
| Working voltage range | 10,1-20 V |
| Protection class | IP23 |
| Mains fuse | 16 A |
| Mains frequency | 50-60Hz |
| Mains voltage [+/-10%] | 3 x 400 V |
| Welding current / duty cycle [10min/40C] | 240 A / 100% |
| Welding current / duty cycle [10min/40C] | 300 A / 50% |
| Welding current / duty cycle | 300 A / 45% |
| Open circuit voltage | 81 V |
