GPPH welding tables · 1862STE0011

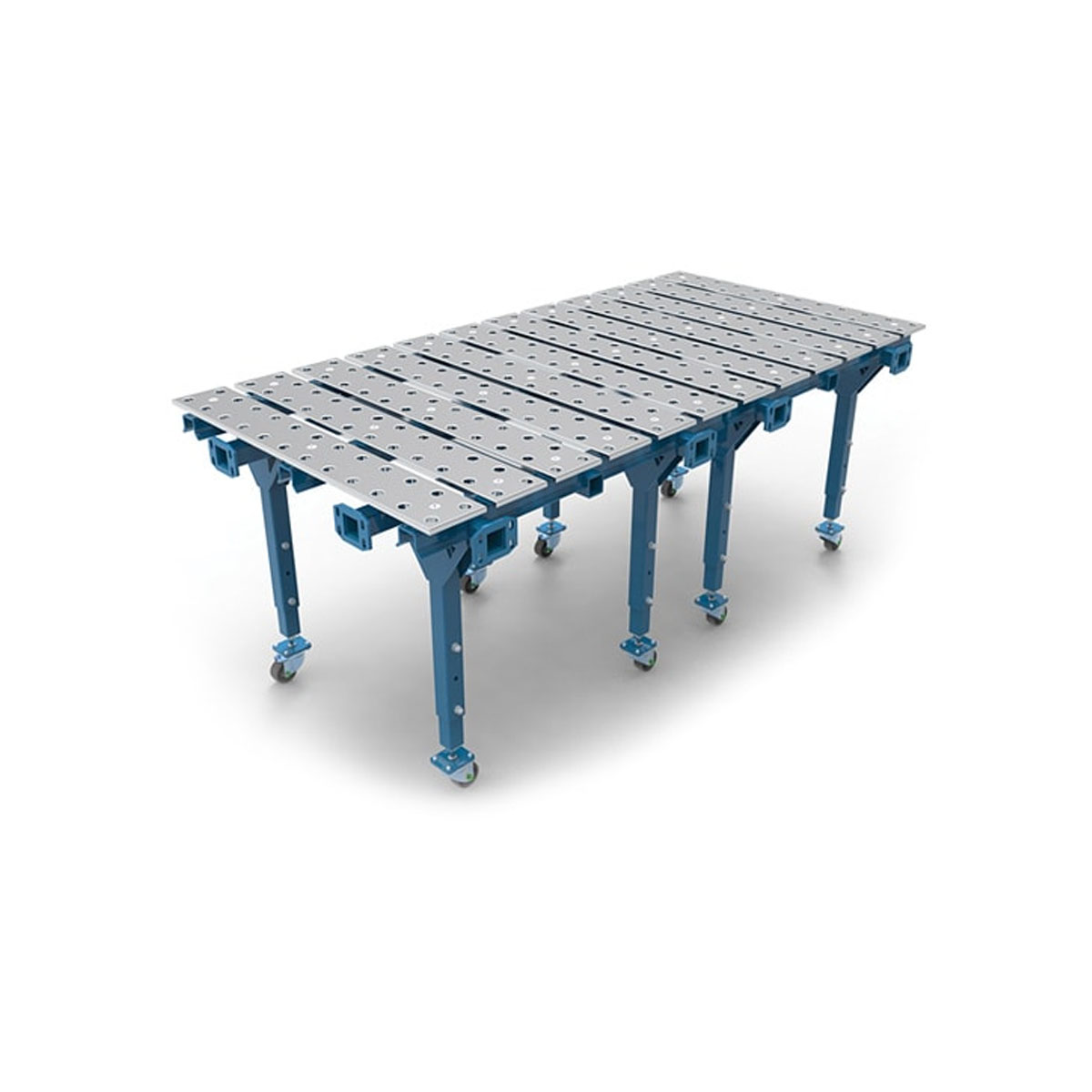

Modular welding tables - Double table 2400 x 1200 mm (2x table 1200 x 1200), maximum load capacity 1000 kg, adjustable table height from 850 mm - 1150 mm, P=50 mm, hole system Ø28 in 100 x 100 mm grid, see details.
Fig. may deviate

Description

DOUBLE TABLE

The most popular set-tandems, which consist of two
individual tables. The design of the tables allows
Expansion in all directions.

TABLE PARAMETERS:

- Stable construction.
- Highest processing quality.
- Ideal flatness by adjusting the surface of the plates on
  three digits each.
- Hole and slitting tool assembly.
- Table top in material S355J2+N.
- Sheet thickness 15mm.
- Maximum load capacity 1000kg.
- Hole system Ø28 in 100x100mm grid.
- Chamfered holes.
- Castors with adjustable supports in the base legs.
- Adjustable supports in the additional legs, in unfolded version.
- Adjustable table height from 850mm - 1150mm, P=50mm.
- Possibility of connecting tables to create a larger work surface
  to receive.
- Tables reinforced with ribs.
- Plate surface - standard with milling.
- Tables and tools according to ISO 2768-1.
