Greggersen - 2-beam system for Oxygen 0 - 20 bar, 75 m³ / h
Fig. may deviate
Description

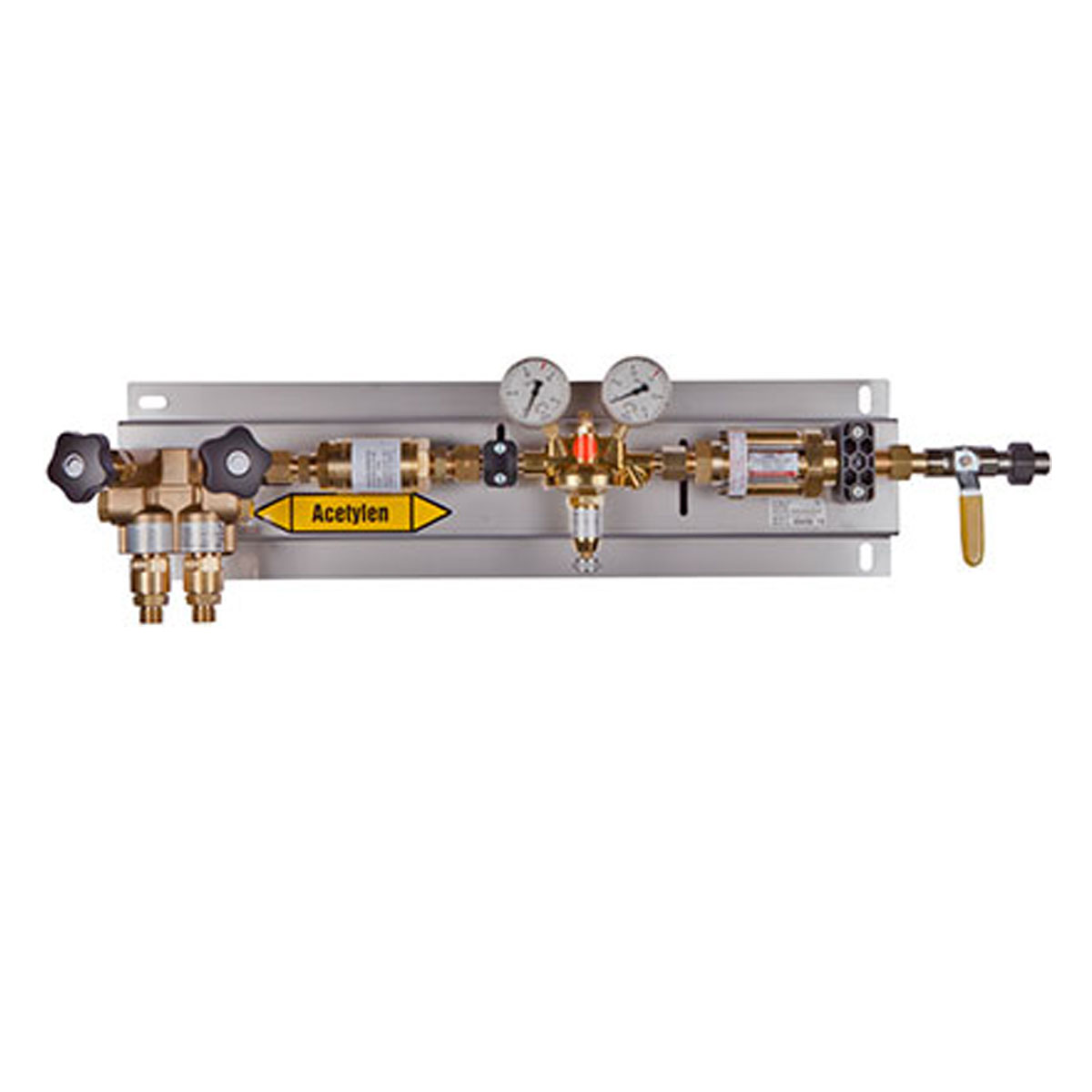

2-beam system for acetylene
consisting of switching block with filter, check valves and check valves, manual quick-closing device according to ISO 14114 and 15615, a main pressure reducer HA10 to ISO 7291, a decomposition barrier according to ISO 14114 and 15615, a main stop valve, fully assembled on a base plate made of stainless steel.
| Inlet pressure: | max. 300 bar |
| Output pressure: | 0 - 20 bar adjustable |
| Performance: | 70 m³ / h at 20 bar Outlet pressure |
| Inputs: | 2 x M24x1,5RHak 16S for operating 2 bundles |
| Output: | G3 / 4 "RH x 18 mm solder lugs |
| Eingangsmanometer: | 0 - 400/300 bar |
| Output gauge: | 0 - 40/20 bar |
| Width x height x depth: | 550 x 250 x 230 mm |
