Javac - Container turning devices SIR-1T roller block, SIR series can cover a very large number of workpiece diameters, compact stable structure, easy to operate, see details.
Fig. may deviate
Description

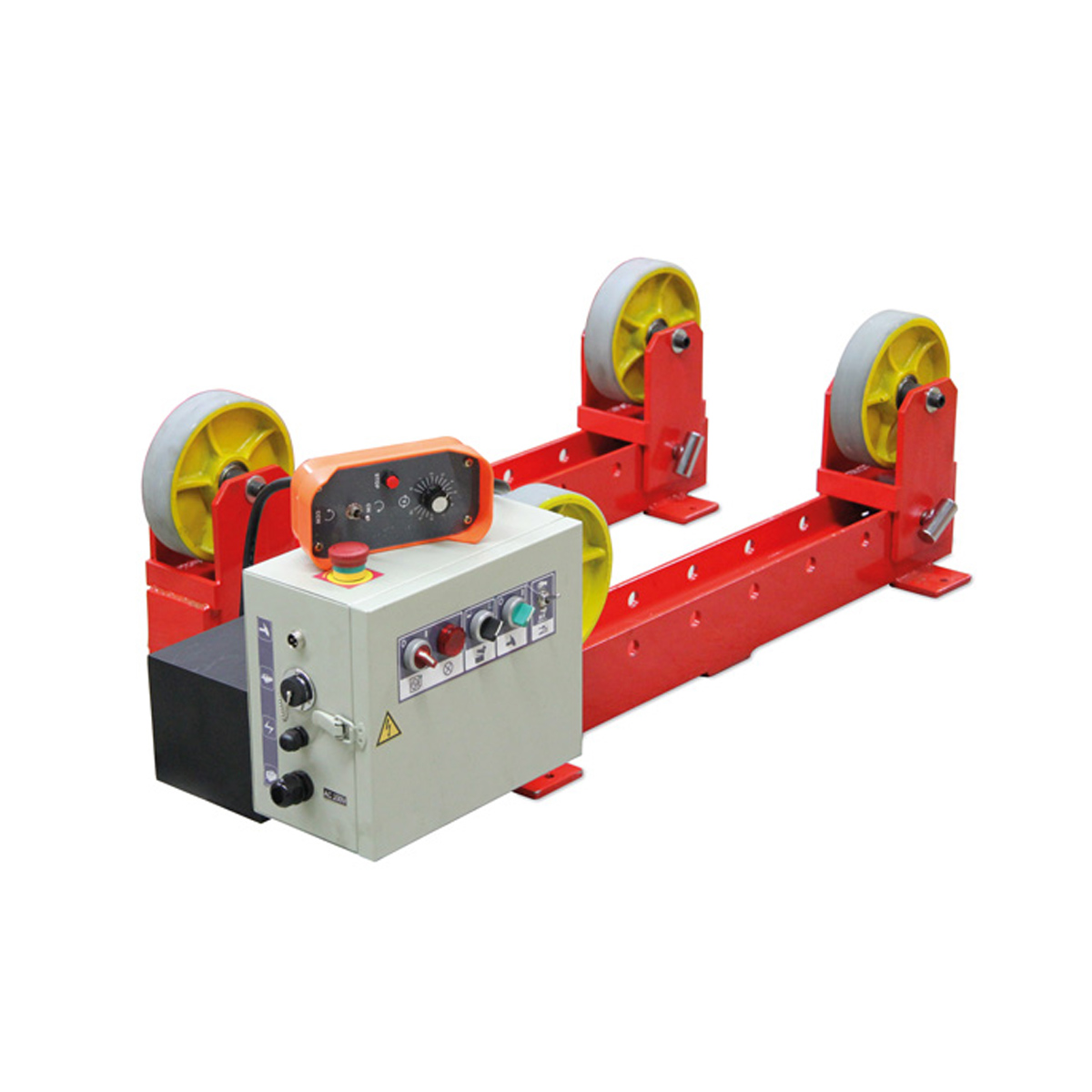

Container turning devices SIR-1T roller block
Girth welding specialist
The SIR-series covers a big range of workpiece diameters.
The distance between the rollers can be easily regulated via
plug connection. The strong drive unit allows for a smooth and
continuous turning movement also at low speed.
Features
▪ Consisting of drive unit and idler unit.
▪ Smooth rotational movement also at low speed.
▪ PU-rollers.
▪ Container diameter can be adjusted fast and easily via plug
connection.
▪ Hand-held remote control (3 meters) for adjustment of speed
as well as cw/ccw rotation.
▪ Foot switch.
▪ Compact and stable structure, easy to operate.
Scope of delivery:
- 1 Control unit (integrated)
- 1 Foot switch
- 1 Cable remote control
| Model SIR-1T | |
|---|---|
| Supply voltage | AC 230V/50Hz |
| Max. load | 1 t |
| Workpiece diameter | 50 to 1500 mm |
| Speed | 180 to 1800 mm/min |
| Roller size | 200 x 50 mm |
| Weight | 100 kg |
| Size (LxW) in mm | 950 x 344 |
