Javac - Container turning devices Roller block series HGZT-40, the HGZT series has two synchronously operating drive units, which provide continuous rotation with stepless speed control, see details.
Fig. may deviate
Description

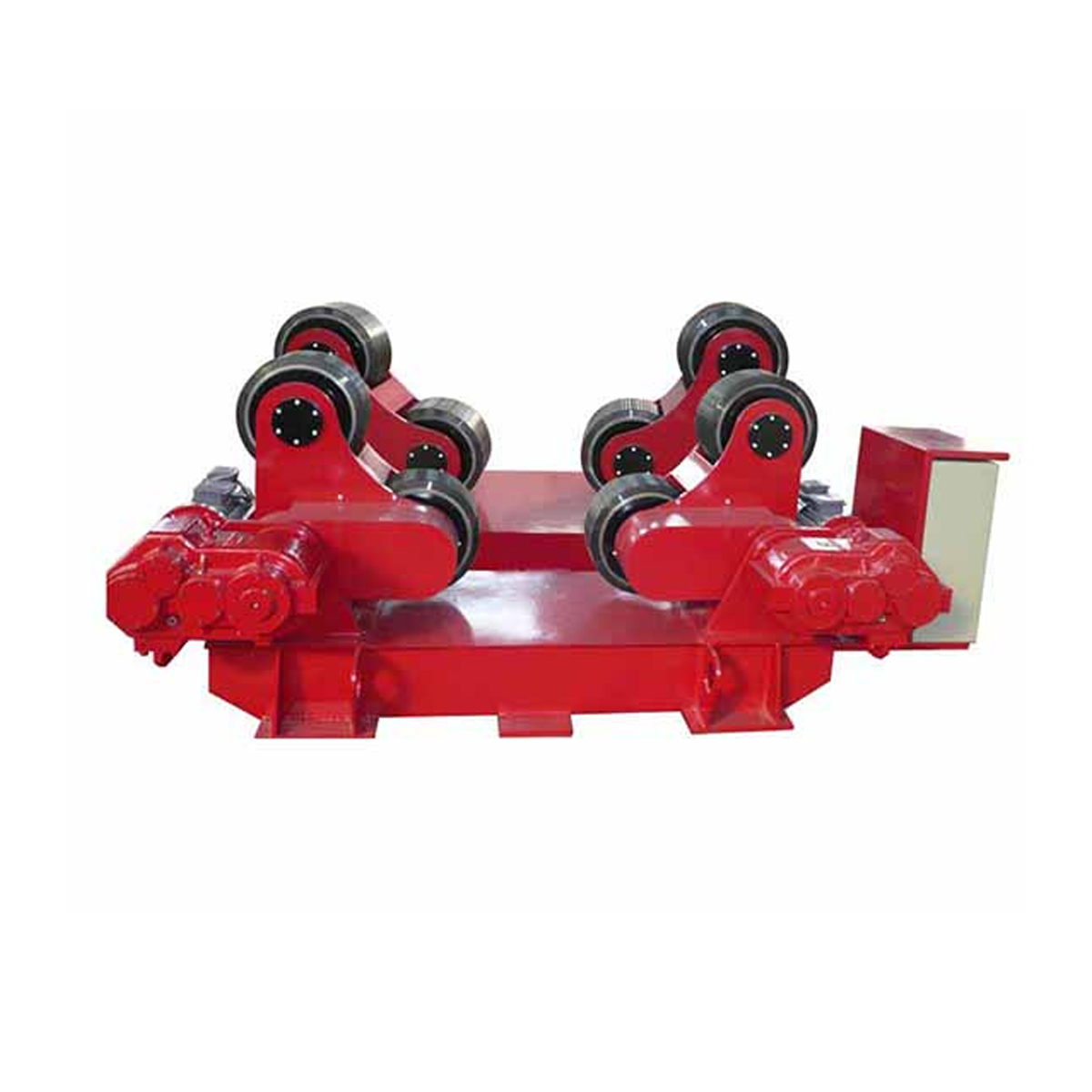

Container turning devices Roller block series HGZT-40
Self-centering
The HGZT series has two synchronously operating drive units, which
provide continuous rotation with stepless speed control. The roller
spacing is self-centering, the rollers are aligned to the diameter
Features
▪ For turning and positioning in the field of machine, container,
plant and pipeline construction.
▪ With 2 AC motors.
▪ Roller spacing is self-centering
▪ Automatic adaptation to the workpiece with different
diameter
▪ Two synchronously running drive motors.
▪ Adjustable rotation speed.
▪ PU rollers
▪ Adjustment via bolts.
▪ Remote control
Scope of delivery:
- Remote control
| Model HGZT-40 | |
|---|---|
| Speed | 6 -60 m /h |
| Max. Load | 40.000 kg |
| Workpiece diameter | 600 - 4.500 mm |
| Engine power (Kw) | 2 x 1.5 |
| PU rollers diameter | 400 mm |
| PU rollers width | 160 mm |
