Javac - Turntable gear box series for PRO turntables, COM-3800 for spot- and tack welding

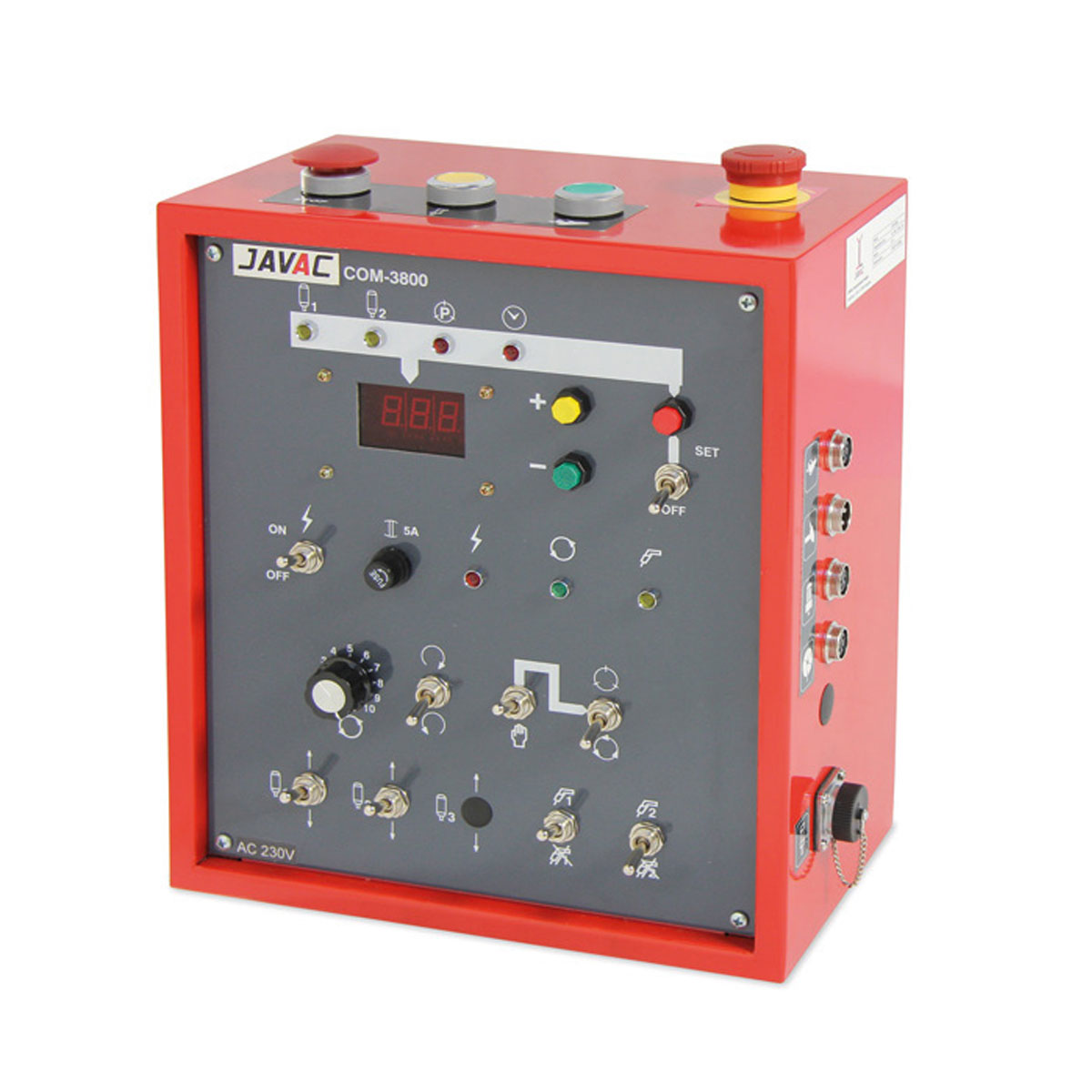

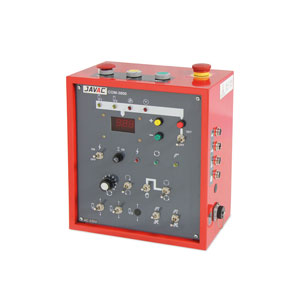

COM-3800 for spot- and tack welding
The COM-3800 set welding spots with dry reed contact in combination with inducting object (screw M6x1). At the point of the inducting object welding points are set (welding −> table stands still) or a welding seam is set (welding −> table turns) The lenght ot the seam is regulated by the welding time.
The control is delivered with a table suitable for PRO2 and PRO3. The table has already 12 drilled shafts, additional shafts can be drilled on demand.
Features:
- Runs cw/ccw
- Stepless speed control
- Welding on/off
- Creater filling
- Pneumatci control for auto. welding
- Spot and tack welding
Scope of delivery:
1 Control
1 Turntable with drilled shafts
12 screws M6x1
| Model COM-3800 | |
|---|---|
| Supply voltage | 230 V/50 Hz |
| Motor | DC 150W/90 V |
| Display | LED |
| Direction | cw/ccw |
| Spot welding timer | 0 to 99,9 sec (Display unit 0,1 sec) |
| Tack welding timer | 0 to 99,9 sec (Display unit 0,1 sec) |
| Air valve control | 2 (same power) |
| Brake | magnetic |
| Start | foot switch |
| HF protection | 100 % |
| Item no | 71840140 |
