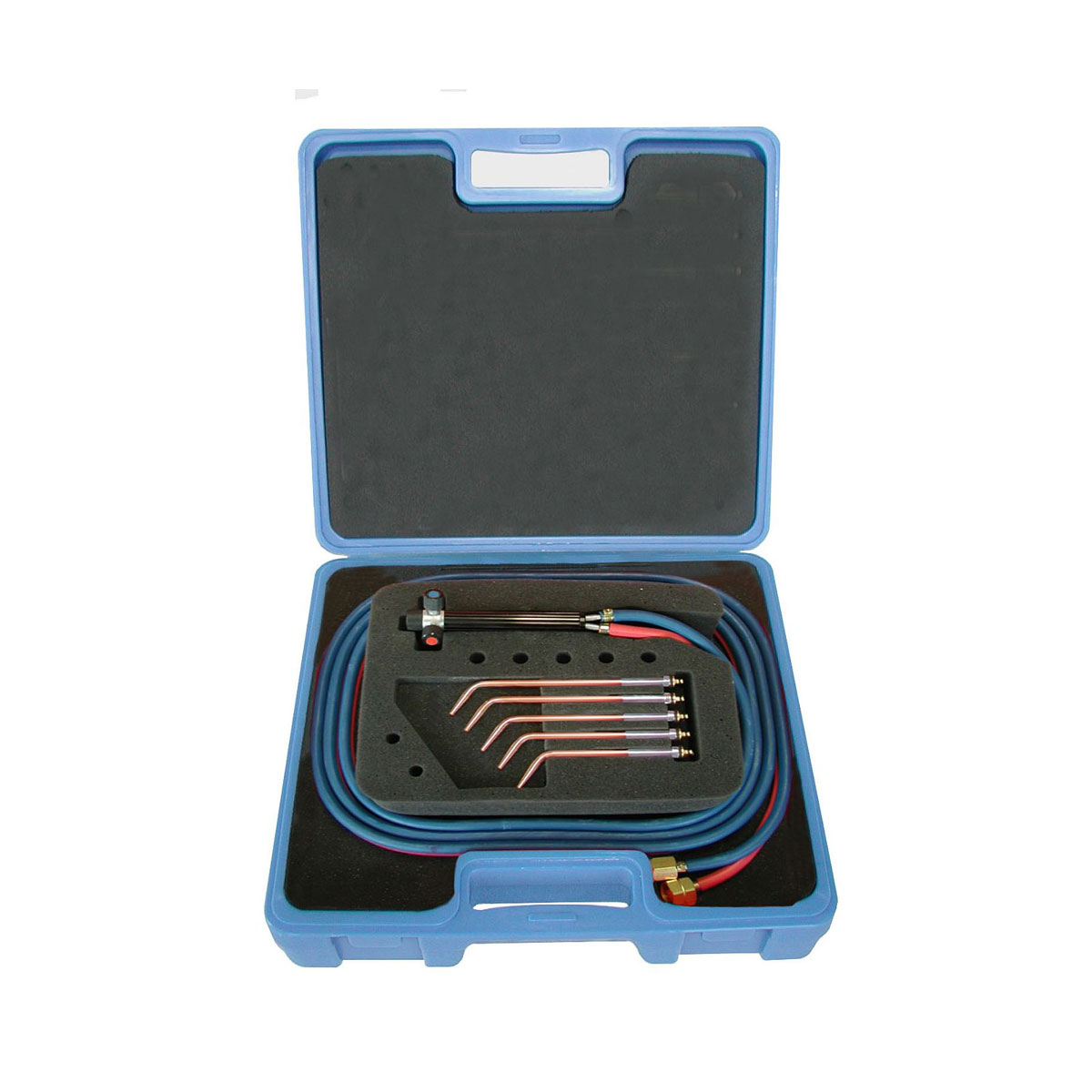

MINITHERM® Messer set type HA, welding, brazing and heating inserts with central flame outlet. Fuel gases: acetylene/oxygen and hydrogen/oxygen. Technical data see details.
Fig. may deviate
Description
Ingredients:
1 handle with integrated hoses, length 3 m, inlet connections G 1/4 for oxygen and G 3/8 LH for fuel gas. 5 inserts type HA, size 00 - 3.
Version
One-piece injector (vacuum mixing device) made of brass (chromed) with exchangeable nozzle, consisting of mixing tube with hammered-on mouthpiece made of copper.
Application
MINITHERM® inserts type HA are a powerful set of 5 inserts graded according to DIN 8543 for welding and flame straightening of 0.1 to 4 mm thick steel sheets, for welding of pipes up to 4 mm wall thickness and for heat treatment of steel, non-ferrous, precious and sintered metals as well as glass, quartz glass, ceramics and plastics. Due to their low weight and small dimensions, they are particularly suitable for fatigue-free continuous use and for welding, heating and brazing work in constrained positions, usually with sufficient freedom of movement.
Main areas of application
1 handle with integrated hoses, length 3 m, inlet connections G 1/4 for oxygen and G 3/8 LH for fuel gas. 5 inserts type HA, size 00 - 3.
Version
One-piece injector (vacuum mixing device) made of brass (chromed) with exchangeable nozzle, consisting of mixing tube with hammered-on mouthpiece made of copper.
| Technical data | |
|---|---|
| Insert length | 121 mm (size 00) to 165 mm (size 3) |
| Mixing tube diameter | 6 mm |
| Weight | 32 g (size 00) to 39 g (size 3) |
Application
MINITHERM® inserts type HA are a powerful set of 5 inserts graded according to DIN 8543 for welding and flame straightening of 0.1 to 4 mm thick steel sheets, for welding of pipes up to 4 mm wall thickness and for heat treatment of steel, non-ferrous, precious and sintered metals as well as glass, quartz glass, ceramics and plastics. Due to their low weight and small dimensions, they are particularly suitable for fatigue-free continuous use and for welding, heating and brazing work in constrained positions, usually with sufficient freedom of movement.
Main areas of application
- Pipeline and heat exchanger construction
- Assembly and installation work
- Production lines and assembly lines
- Bodywork and vehicle construction
- Household appliance assembly
- Jewellery and dental prosthesis manufacture
- Laboratory glass and quartz glass processing
