15.0% Discount = € 902.14 Savings
(Prices incl. 19.0% VAT)

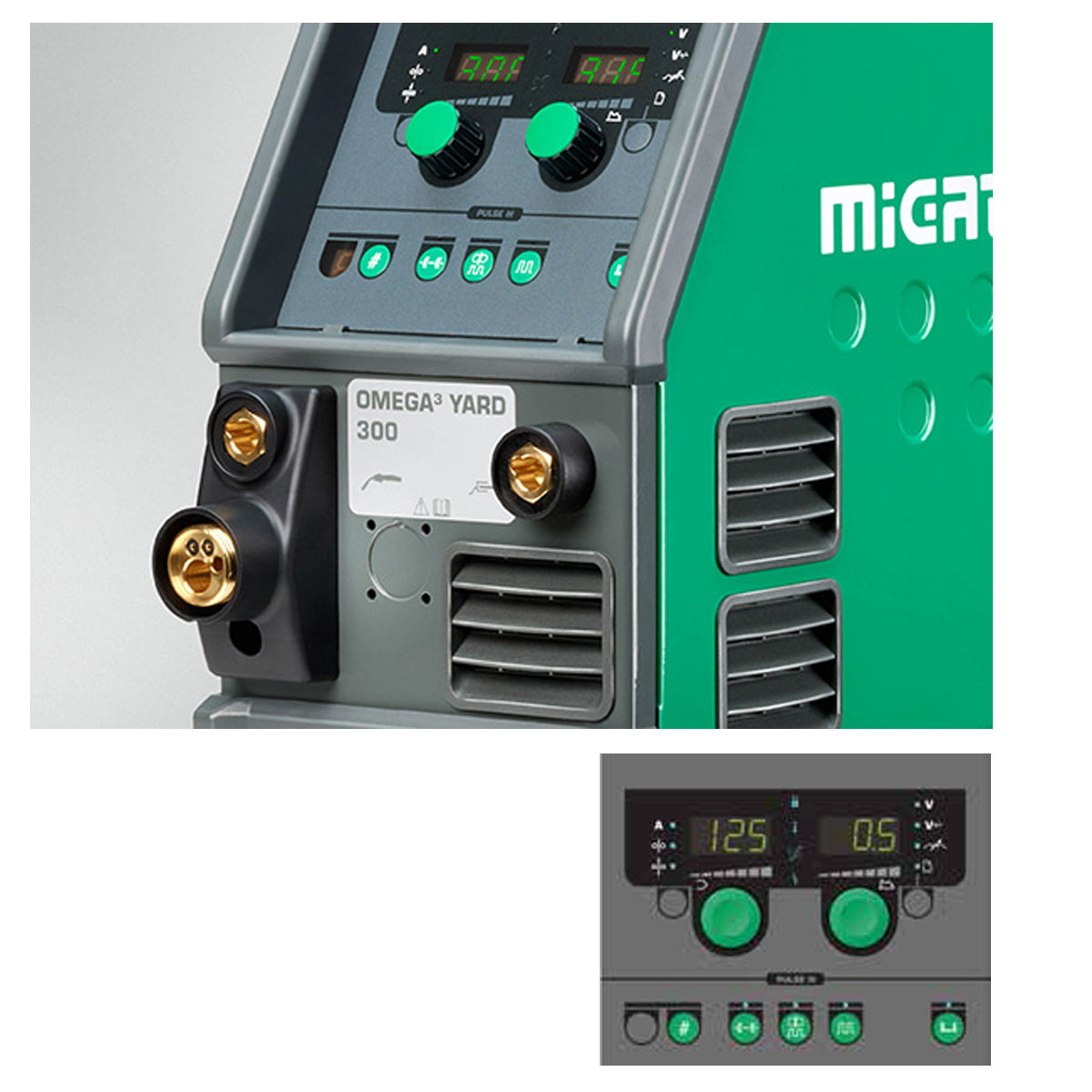

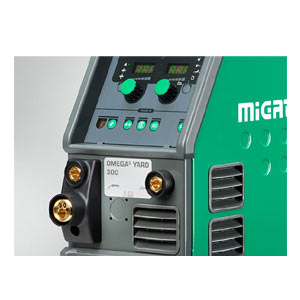

Migatronic - OMEGA YARD 300 Pulse
The Omega Yard 300 has been tested under heavy loads and extremely difficult outdoor conditions and has proven to be highly resistant to impact, dust and moisture. Omega Yard 300 was developed for heavy-duty continuous use with high welding currents and is ideal for welding solid and cored wires as well as Innershield wire (without gas)
of up to 1.2 mm diameter on 5-kilogram wire spools. Thanks to the high duty cycle, there is no loss of energy during welding with long hosepacks or electrode cables.
| pOWER SOURCE | oMEGA YARD 300 |
| mains voltage +/÷ 15%, V | 3 x 400 |
| fuse, A | 16 |
| duty cycle 100%/40°C, A/V | 220/25 |
| duty cycle 60%/40°C, A/V | 240/26 |
| duty cycle max/40°C, A/%/V | 300/25/29 |
| duty cycle 100%/20°C, A/V | 300/29 |
| duty cycle 60%/20°C, A/% V | 300/100/29 |
| open circuit voltage | 50-55 V |
| current range | 15-300A |
| protection class | iP23 S |
| standard | eN60974-1/5/10 |
| dimensions (HxWxL), mm | 455x222x638 |
| weight, kg | 17 |
OPTIONAL ADDITIONAL EQUIPMENT
- Connection for remote control, MIG and MMA
- IGC® Intelligent Gas Control
- Manual gas control
- Control unit for the Torch
- Trolley for the gas cylinder holder
and transport
- Data transmission via CAN
- Protective bracket
- Wheel set for mounting under the
guard
- MMA Dinse kit for changing
mIG to MMA welding
- LED light in the wire console: on
advantage in poor lighting conditions
when using wire and wire reels
change
- Locking card for securing the
set parameters
Pulse control panel incl
- Synergic welding programmes
- MMA
- 2-stroke/4-stroke
- DUO Plus™ for root layers
- Choice of sequences
- Pulse welding
The configuration includes:
- Box MMI Pulse
- ML300 TWIST 3M 1.0 Torch holder
- Earth cable 3m 35mm2
- Drive roller kit MWF 1.0 V
- Mains cable with mains plug 16 A
