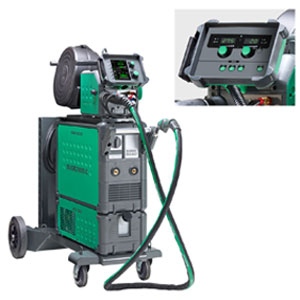

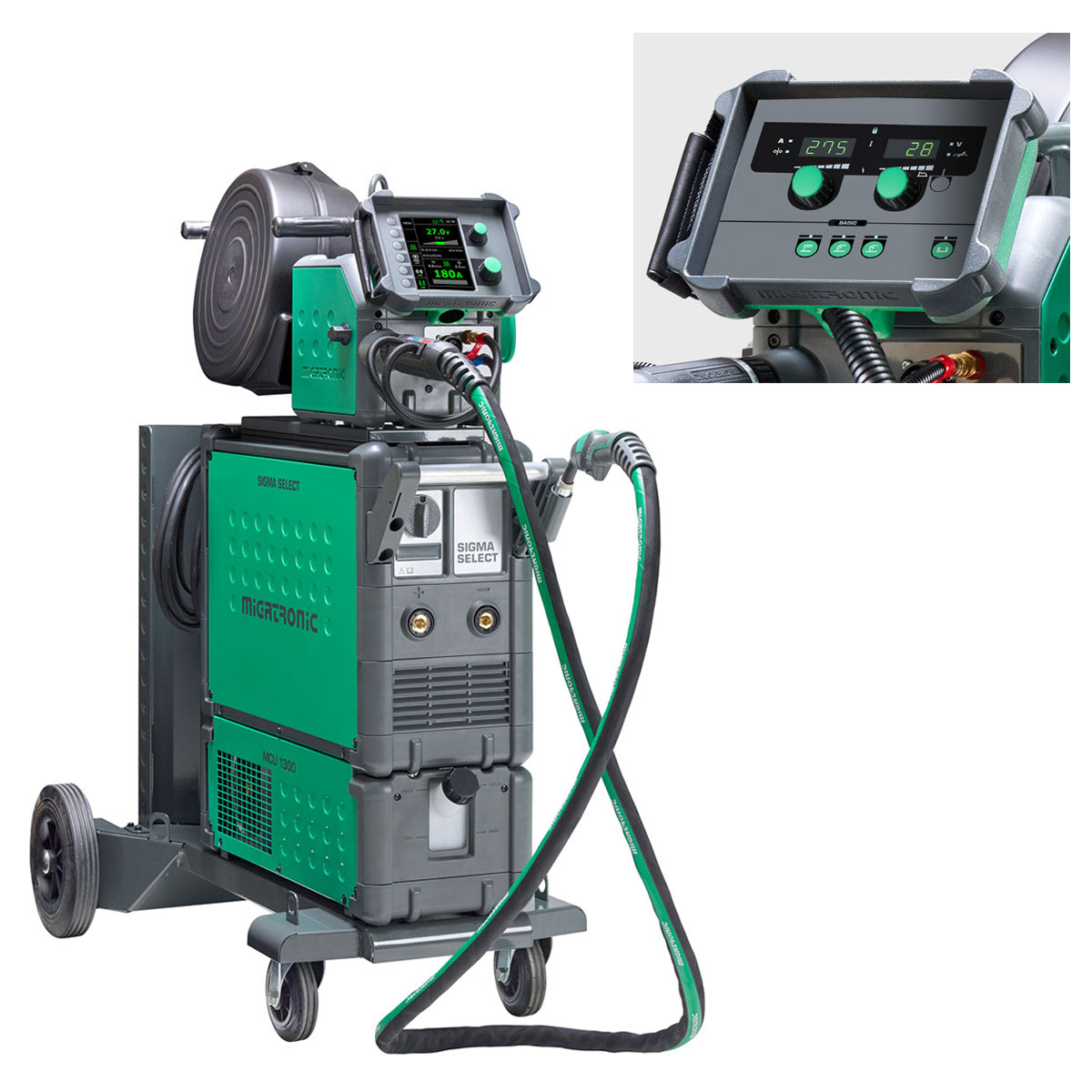

Sigma Select separate wire feeder 300 S-V Basic
Modular three-phase MIG/MAG and electrode handheld inverters. From the
manually adjustable basic version up to the most advanced 550
Ampere high performance pulse welding machines.
A truly tailor-made welding solution
Put your Sigma Select together in such a way that it can be used to create your
individual production requirements. Select the
Hardware: C or S model, power source and control panel. dial
then select the software: Welding program package and intelligent
Functions for easier welding.
Basic Control Panel
For basic welding tasks. Reduced to the essentials.
Use the control buttons to set your welding parameters
to adjust. No additional functions.
Scope of delivery:
Including MV 450 TWIST 3m - Torch, 1.5 m intermediate hose package pluggable,
8.5 m mains cable, 3 m earth cable with terminal, 0.5 m remote control cable,
2.2 m diffusion-tight air hose, 1 set of drive rollers, handle, trolley
with bottle holder and chain holder and LED lighting in the wire console.
| POWER SOURCE | Sigma Select 300 |
| Current range, A | 15-300 |
| Mains voltage +/- 15% (50-60Hz), V | 3x400 |
| Fuse, A | 16 |
| Effective mains current, A | 11,0//16 |
| Maximum mains current, A | 15,4// 18,3 |
| Power, 100%, kVA | 9,0 /11,1 |
| efficiency | 0,85 |
| power factor | 0,9 |
| ED 100% /20°C (MIG), A/V | 300 |
| ED 100% /40°C (MIG), A/V | 220/25// 270/27,5 |
| protection class | IP 23S// 23 |
| application class | S/CE |
| Dimensions C (H x W x L, mm) | 700x260x735 |
| Dimensions S (H x W x L, mm) | 454x260x735 |
