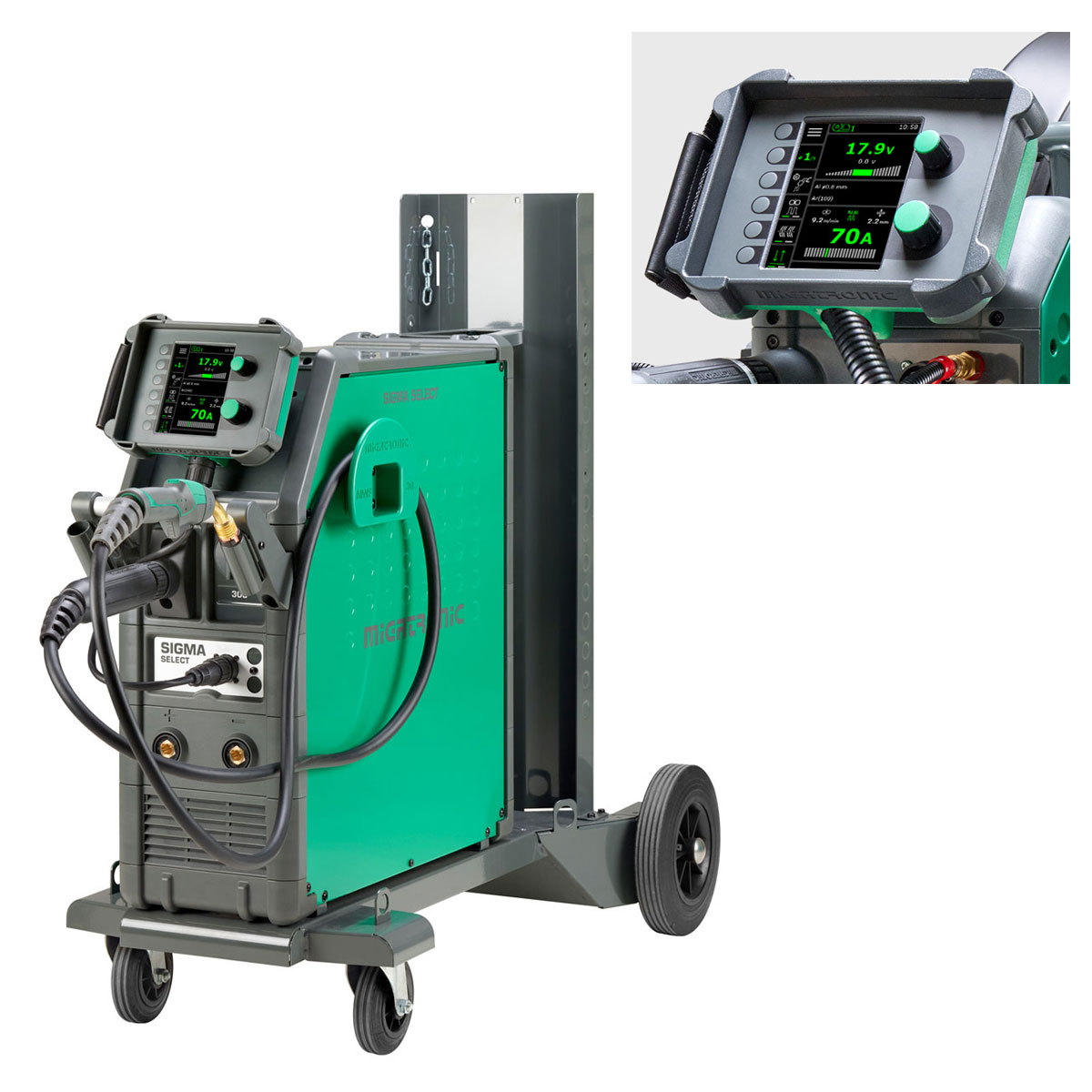

Sigma Select 400 C-L Graphic Synergic
Modular three-phase MIG/MAG and electrode handheld inverters. From the
manually adjustable basic version up to the most advanced 550
Ampere high performance pulse welding machines.
A truly tailor-made welding solution
Put your Sigma Select together in such a way that it can be used to create your
individual production requirements. Select the
Hardware: C or S model, power source and control panel. dial
then select the software: Welding program package and intelligent
Functions for easier welding.
Graphic Control Panel
Designed to equip you for the future! Choose "synergic."or "pulse" and
upgrade the machine whenever you need it. The digital soft-key control
panel is available for a wide range of additional functions for easier
welding including automation functions prepared. Simply invite and
take away!
Scope of delivery:
Includes ML 360 TWIST 3m Torch, standard program package, 8.5m power cable,
3m earth cable with terminal, 0.5m remote control cable 2.2m diffusion-tight
Gas hose, wire guide rollers, carrying handle, trolley with bottle holder
chain and LED lighting in the wire console.
| POWER SOURCE | Sigma Select 400 |
| Current range, A | 15-400 |
| Mains voltage +/- 15% (50-60Hz), V | 3x400 |
| Fuse, A | 20 |
| Effective mains current, A | 17,5 // 16,5 |
| Maximum mains current, A | 26,0 // 28,2 |
| Power, 100%, kVA | 12,1 // 11,4 |
| efficiency | 0,85 |
| power factor | 0,9 |
| ED 100% /20°C (MIG), A/V | 350/31,5 // 310/29,5 |
| ED 100% /40°C (MIG), A/V | 300/29 //280/28,0 |
| protection class | IP 23 |
| application class | S/CE |
| Dimensions C (H x W x L, mm) | 700x260x735 |
| Dimensions S (H x W x L, mm) | 454x260x735 |
