Switch for trigger programme
Call up to 4 preset programmes via the burner switch
(any standard MIG torch) for increased productivity on complex objects.
Miller robustness
Tested and approved for high-performance welding under the toughest conditions.
Miller goes to extreme lengths to ensure trouble-free welding in every environment
Environment.
Heavy duty wire drive mechanism
The 4-roller drive system ensures trouble-free wire feed.
Energy efficient
The energy-saving fan-on-demand power source cooling system only operates when required.
This reduces noise levels and the amount of contamination caused by
drawn through the machine.
Fully synergic pulse with presets
Synergic lines for all common wire/gas combinations with preset
Start/stop parameters for optimum welds.
Wind tunnel technology
Internal air flow that protects the electrical components and circuit boards from dirt,
Dust and deposits and significantly improves reliability.
Ease of use and versatility
Large, intuitive LCD display for quick and precise setting of the
advanced welding parameters.
Technical specifications |
|||
---|---|---|---|

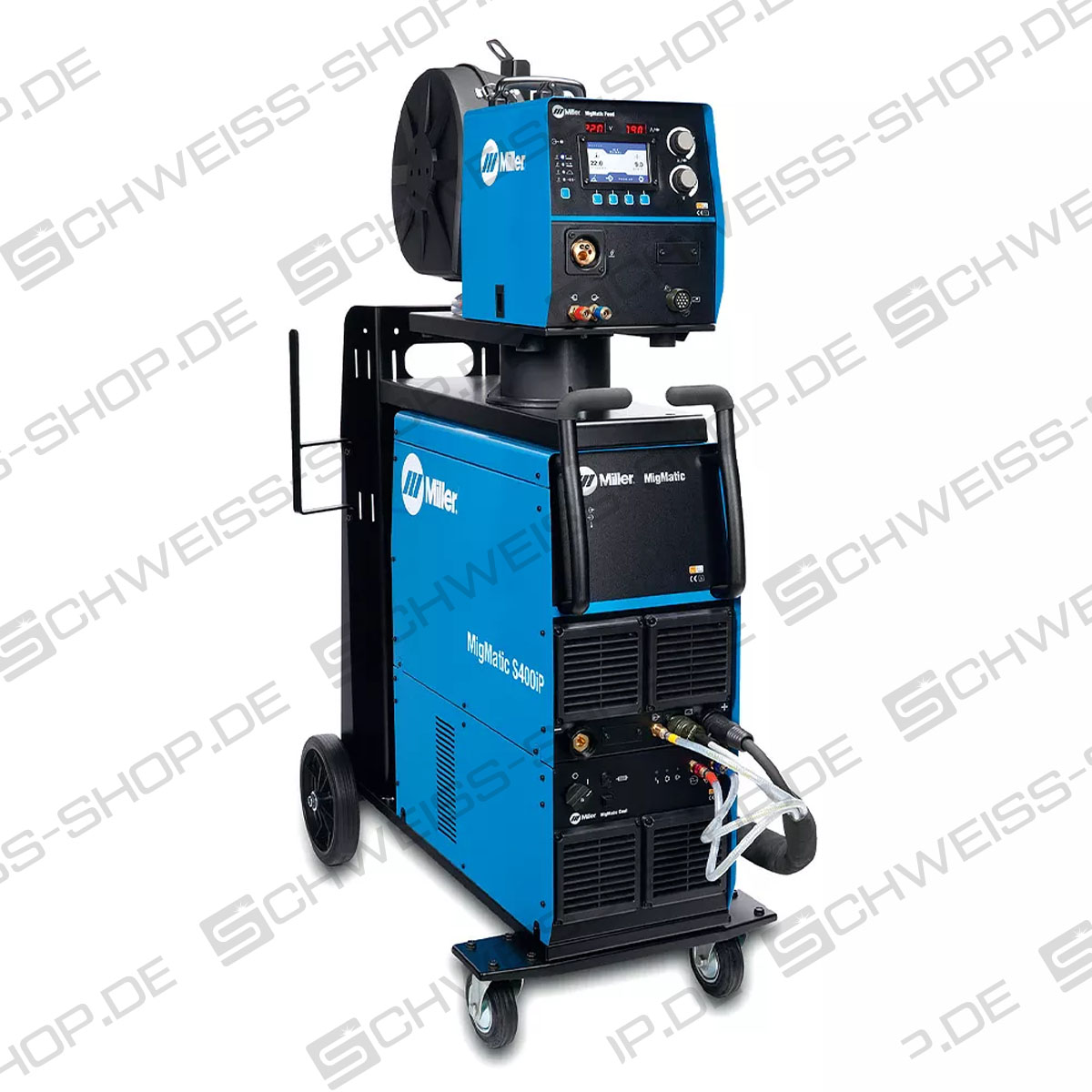

MigMatic S400iP | MIG/MAG | ||
Industries of interest | General industrial manufacturing Construction Railway wagons Mobile machines Shipbuilding |
||
Weldable metals | From thin to thick, All materials, 0.8-1.6 mm solid, Cored wires |
||
Input voltage | 400 V | ||
Input phase | 3 phases | ||
Input Hz | 50/60 Hz | ||
Current range | 15 A - 400 A | ||
Max. Output current | 440 A | ||
Rated power | 400 A, 34 V at 80% duty cycle | ||
Maximum open-circuit voltage | 70 VDC | ||
Width | 305 mm | ||
Height | 530 mm | ||
Length | 730 mm | ||
Weight | 53 kg |
