Al Mg 3 · 1366MMS0005
Al Mg 3 / 3.3536 / 5154 Aluminium MSG welding wire (Ø0.8 mm) on basket spool K300, price per basket spool incl. current surcharges, ask for approvals and scope of approval, PU = 7 kg.

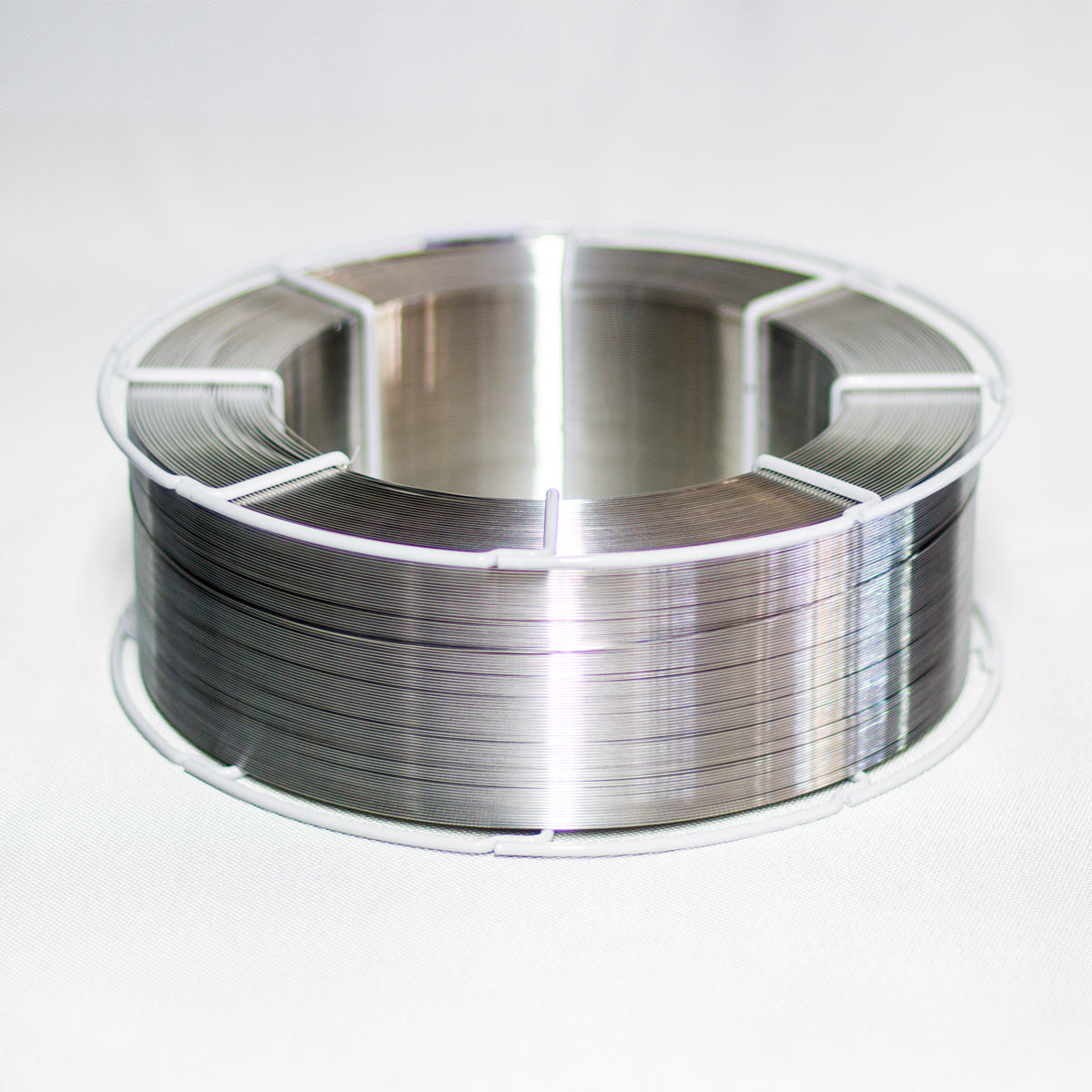

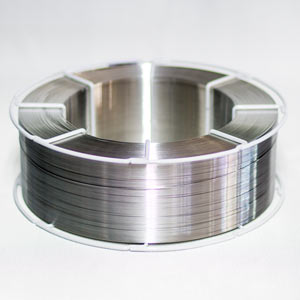

Fig. may deviate

Description

Scope:
Joint welding of aluminium-magnesium alloys

Base materials:
Aluminium-Mg alloys AlMg1 AlMg2 AlMg3 AlMn

Standard designation:
DIN 1732: SG-AlMg 3 Material No. 3.3536 AWS designation: ~ER 5754 EN ISO 18273 (2004) : AlMg3

Mech.quality values of the weld metal:
0.2% Yield strength (Rp 0.2) 80 N/mm²
(guide values) :Tensile strength (Rm) 200 N/mm²
Elongation (A)(Lo=5do) 20%
