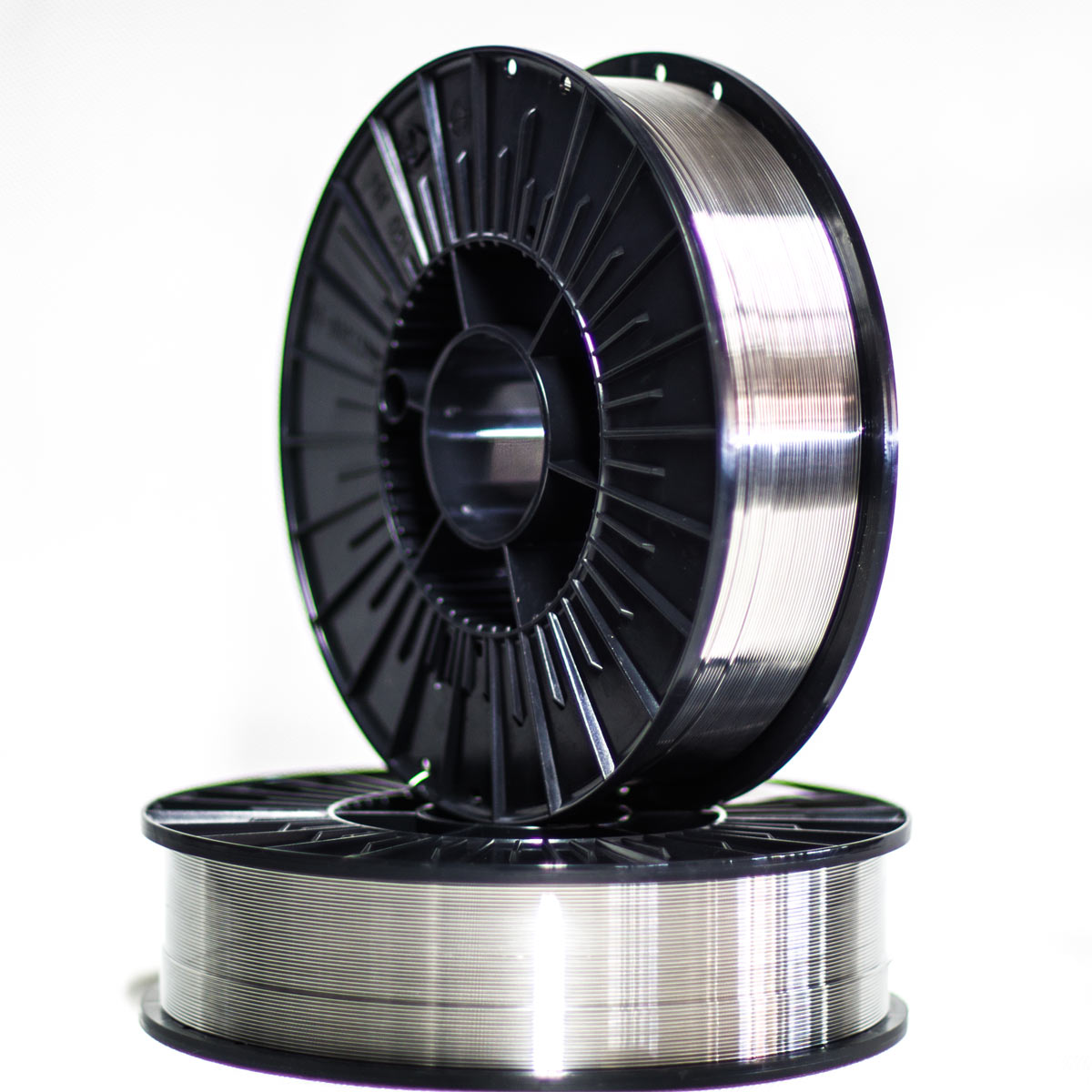

Al Mg 5 / 3.3556 / 5356 aluminum MIG welding wire (Ø 0,8 mm)on plastic spool D200 (D = 200mm). Price per plastic spool including current charges, approvals and registration details please ask. Different wire diameter, spool = 2 kg.
Description
Scope:
Joint welding of aluminium-magnesium alloys
Base materials:
Aluminium-Mg alloys AlMg3 AlMgSi AlMg5 AlMg1 AlMg5Si AlMgSi0,5 AlMg4,5Mn
Standard designation:
DIN 1732: SG-AlMg 5 Material No. 3.3556 AWS designation: ER 5356 EN ISO 18273 (2004) : AlMg5Cr(A)
Mech. quality values of the weld metal (guide values)
0.2% Yield strength (Rp 0.2) 100 N/mm²
Tensile strength (Rm) 250 N/mm² Elongation (A)(Lo=5do) 25% Highest operating temperature 100°C Lowest operating temperature -196°C
