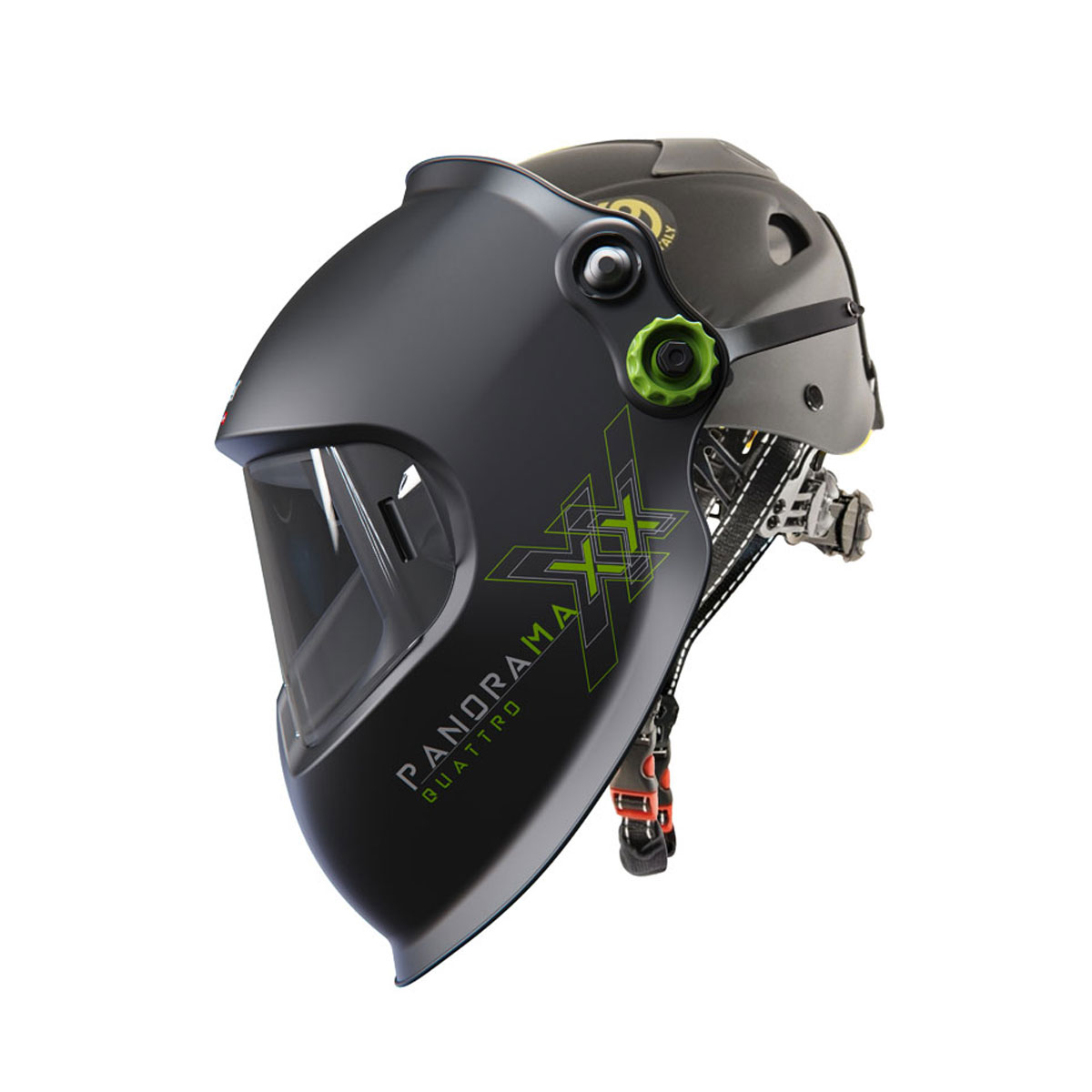

Optrel panoramaxx quattro - black with industrial helmet black: Welding helmet with best optical classes 1/1/1/1, ShadeTronic 3/4-13 (manual 8-13), FadeTronic, grinding mode, sensitivity control, optrel recharge, optrel IsoFit headgear
Fig. may deviate
Our price:
UVP € 857.99. With us only € 514.79
40.0% Discount = € 343.20 Savings
(Prices incl. 19% VAT)
40.0% Discount = € 343.20 Savings
(Prices incl. 19% VAT)
Description
Product details
ShadeTronic inactive: shade level 3.0
active, manual: shade levels 8-13
Battery life range: 300 to 500 charging cycles
ShadeTronic 4-13 with individual calibration option ± 2.
The panoramaxx quattro is a heavy-duty welding helmet for extreme
use. It has a panoramic field of vision that always offers optimum
protection even at difficult viewing angles. Its extremely good
visibility is confirmed by the classification 1/1/1/1 according to
DIN EN 379.
Fields of Application
Elektrode Welding (Stick Welding, SMAW)
MIG/MAG (GMAW)
GMAW High melting rate process
Flux Cored Wire Welding
TIG Welding (GTAW)
Plasma Arc Welding
Plasma Cutting
Gas Welding
Grind Mode
Technical Data
| Shade levels | ShadeTronic inactive: shade level 3.0 active, manual: shade levels 8-13 ShadeTronic 4-13 with individual calibration option ± 2. |
| Energy supply | solar cells, Li polymer battery pack, chargeable via Micro-USB |
| Battery life range | 300 to 500 charging cycles |
| Sensoric | Five sensors |
| Sensitivity | continuously, new with “Super High” sensitivity |
| Switching time | light to dark: 0.090 ms at 20°C 0.070 ms at 55°C dark to light: 0.1 s to 2.0 s (with FadeTronic) |
| Field of vision | 2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF |
| Classification EN379 | 1/1/1/1 |
| Shape stability | Mask: up to 220°C Front cover lens: up to 137°C |
| Eye protection | UV/IR protection: maximum protection at all shade levels |
| Operating temperature | -10°C to + 55°C / 14°F to 131°F |
| Storage temperature | -20°C to + 70°C / -4°F to 158°F |
| Weight | 575 g / 20.3 oz (PAPR 745g) |
| Scope of delivery | Welding helmet, optrel IsoFit headgear, manual, bag, Micro USB cable, front cover lens, warranty card |
