Universal stop 150 L aluminium, 150 x 50 x 25 mm, variable locking, universal
clamping options thanks to slotted hole, adjustment range 100 mm.

Universal stop 225 L nitrided, 225 x 50 x 25 mm, fixed and variable locking,
universal clamping options for all quick-clamping systems thanks to slotted
hole and bore, weight approx. 1.4 kg.

Universal stop 225 L aluminium, 225 x 50 x 25 mm, fixed and variable locking,
universal clamping options for all quick-clamping systems thanks to slotted
hole and borehole.

Universal stop bar 500S nitrided, 500 x 100 x 25 mm, for stop and positioning
work on larger components, weight 7.9 kg.

Stop and clamping bracket 175 L nitrided, 175 x 175 x 50 mm, fixed and
variable locking, two-sided, drilled hole / slotted hole.

Stop and clamping bracket 175 L aluminium, 175 x 175 x 50 mm, drilled hole /
slotted hole, fixed and variable locking, two-sided.

Stop and clamping bracket 175 SL nitrided, 175 x 75 x 50 mm, ideal as a stop
for large-framed profiles, height-adjustable support in combination with all
brackets.

Stop and clamping bracket 500 G, 500 x 200 x 75 x 27 mm, left, weight approx.
10 kg, nitrided.

Corner connection large cast iron nitrided 200 x 200 x 170 mm, table
extension diagonal in combination with angles, can also be used as a prism,
weight approx. 16 kg.

Universal bracket, mechanical clamping, leg length 350 mm, bolt countersunk
on one side, infinitely adjustable ( 10° - 150° ), weight approx. 15 kg,
including adjustment template, nitrided.

Universal angle hydromechanical clamping, leg length 475 mm, hydromechanical
clamping, infinitely adjustable ( 0° - 225° ), weight approx. 23 kg,
nitrided.

U-shaped bracket 500 x 200 x 100 Plasma-nitrided, holes on four sides,
connection from table to table, vertical superstructures, weight 31 kg.

U-shaped angle 1000 x 200 x 100 Plasma-nitrided, holes on four sides,
connection from table to table, vertical superstructures, weight 75 kg.

U-shaped bracket 1500 x 200 x 100 Plasma-nitrided, holes on four sides,
connection from table to table, vertical superstructures, weight 108 kg.

U-shaped bracket 2000 x 200 x 100 Plasma-nitrided, holes on four sides,
connection from table to table, vertical superstructures, weight 141 kg.

U-shaped bracket 500 x 200 x 200 Plasma-nitrided, holes on five sides,
connection from table to table, vertical superstructures, weight 67 kg.

U-shaped bracket 1500 x 200 x 200 Plasma-nitrided, holes on five sides,
connection from table to table, vertical superstructures, weight 172 kg.

U-shaped angle 2000 x 200 x 200 Plasma-nitrided, holes on five sides,
connection from table to table, vertical superstructures, weight 225 kg.

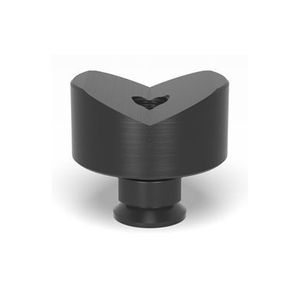

Prism Ø 60 135° nitrided with screwed-in steel collar, for round tubes, can
be screwed into all 28 mm holes.

Prism Ø 60 135° aluminium with screwed-in collar - aluminium, for round
tubes, can be screwed into all 28 mm holes.
