SCAPP - Pipestoppers PSP NYLON pipe plugs, ARGWELD Orbital Kit Pipestoppers 43 pieces in sturdy ABS plastic case
Fig. may deviate
Description
Pipestoppers Pipe stopper PSP NYLON, ARGWELD Orbital-Kit Pipestoppers 43 pieces in sturdy ABS plastic case.

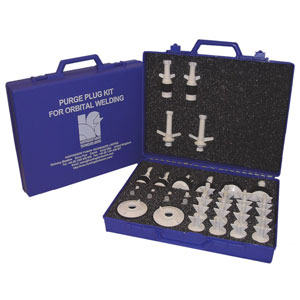

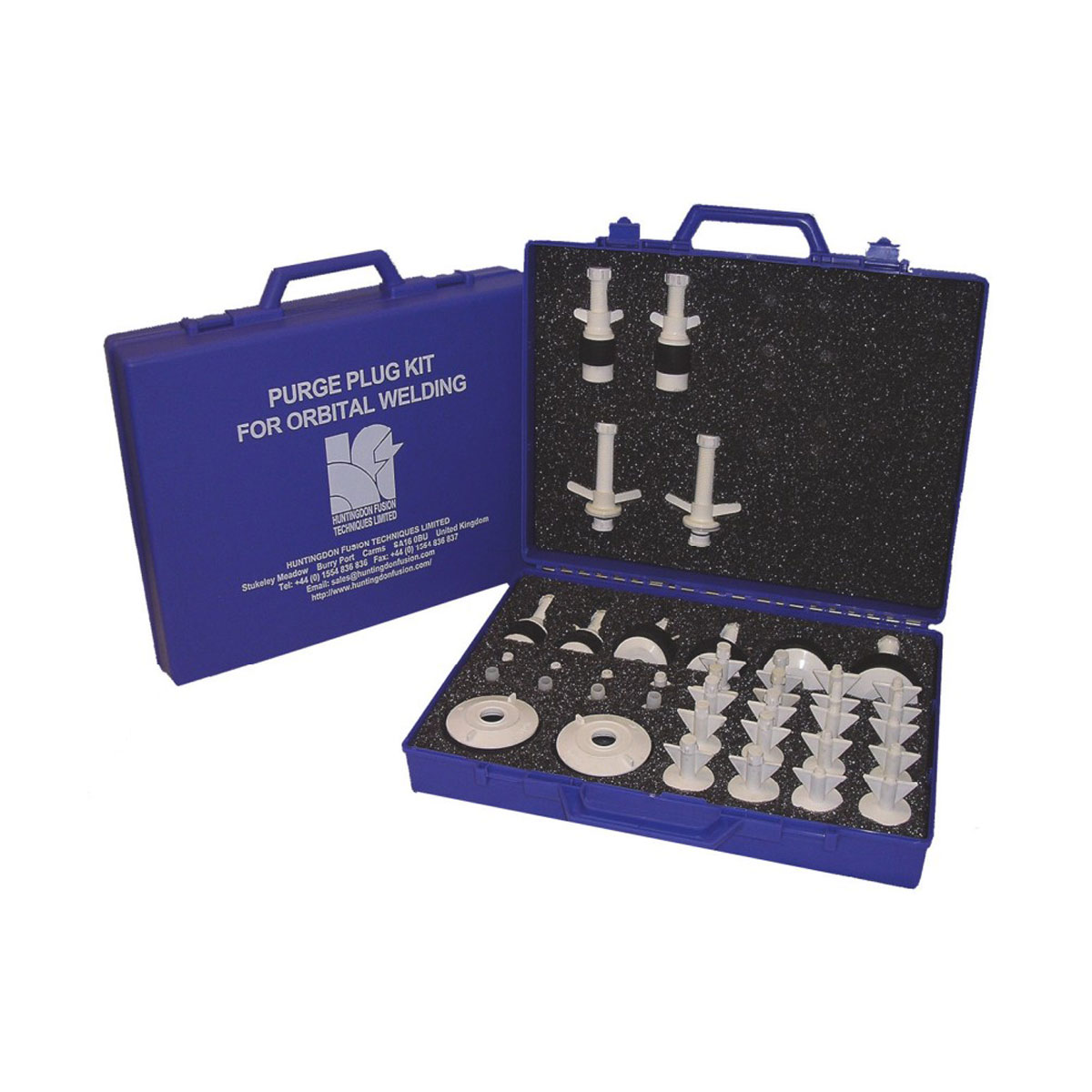

Orbital-Kit Pipestoppers
This kit has been developed to meet the specific requirements of orbital welding and
contains Pipestoppers® pipe plugs for all diameters from ½'' to 4'' [15 - 100 mm] made of
Polyamide (Nylon 6) with matching hose connection caps.
Completely and clearly sorted in a sturdy ABS plastic case.
Heat resistance: 75°C (permanent)
105°C (Temporary)
120°C (With optional silicone seal)
Advantages at a glance:
- Easy to use
- Flexible in the required inside diameter
- Robust and unbreakable material:
Hygienic polyamide (Nylon 6)
- Easy to clean as it can be completely dismantled
- Rust and corrosion free
Purge Plug KIT
|
|||
|---|---|---|---|
Art. No. |
Description |
range |
PCS |
| Threaded shank without bore | |||
| PSP1013 | Pipestoppers, NYLON (½) SG | 12-16 mm | 2 |
| PSP1019 | Pipestoppers, NYLON (¾) SG | 18-24 mm | 2 |
| PSP1025 | Pipestoppers, NYLON (1) SG | 23-32 mm | 2 |
| PSP1032 | Pipestoppers, NYLON (1¼) SG | 31-42 mm | 2 |
| PSP1038 | Pipestoppers, NYLON (1½) SG | 37-54 mm | 2 |
| Hollow thread shank, 10 mm | |||
| PSP113H | Pipestoppers, NYLON (½) HG10 | 12-16 mm | 2 |
| PSP119H | Pipestoppers, NYLON (¾) HG10 | 18-24 mm | 2 |
| PSP125H | Pipestoppers, NYLON (1) HG10 | 23-32 mm | 2 |
| PSP132H | Pipestoppers, NYLON (1¼) HG10 | 31-42 mm | 2 |
| PSP138H | Pipestoppers, NYLON (1½) HG10 | 37-54 mm | 2 |
| hollow thread shank, ½ | |||
| PSP2038 | Pipestoppers, NYLON (1½) HG | 37-54 mm | 2 |
| PSP2050 | Pipestoppers, NYLON (2) HG | 48-65 mm | 2 |
| PSP2063 | Pipestoppers, NYLON (2½) HG | 60-77 mm | 2 |
| PSP2075 | Pipestoppers, NYLON (3) HG | 70-87 mm | 2 |
| PSP2100 | Pipestoppers, NYLON (4) HG | 95-110 mm | 2 |
| Hose connection caps | |||
| PSPS1000 | Hose connection cap | (½ BSP) | 4 |
| PSPS1001 | Wing screw with connection | (½ BSP) | 4 |
| PSPS1019 | Hose connection cap | (10 mm) | 5 |
