ARGWELD Forming systems QuickPurge II 37-68, quick-inflating forming systems for pipes and pipelines ~ SCHWEISS-SHOP ~ QuickPurge II ~ 1840QPE0033 ~ Schweiss Shop

QuickPurge II · 1840QPE0033

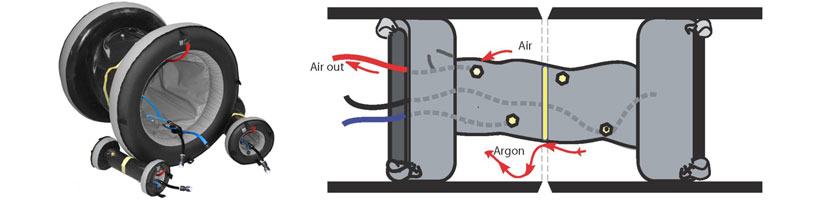

ARGWELD forming systems QuickPurge II 37–68, Fast inflatable forming systems for pipes and pipelines, perfect positioning in the pipe by means of a self-illuminating strip

ARGWELD forming systems QuickPurge II

QuickPurge rapid irrigation systems are equipped as standard with the latest valve technology IntaCal, the high-tech product
PurgeGate and more heat resistant than previous versions (previously max. 150°C).
Plug & Purge: Time-consuming valve adjustment and burst dams are a thing of the past. Lifelong
Warranty (if handled properly).

Advantages at a glance:
- All diameters from DN 150 to 2,235 mm
- Quick and easy to install
- Perfect positioning in the tube by means of self-illuminating strip
- Maximum working temperature: 250°C (constant) / 280°C (temporary)
- Saving of forming gas up to 90% compared to the application
  of conventional systems
- Short rinsing times: Amortization after a few applications
- No turbulence of the forming gas due to sintered outlets
- No outgassing of the material during the welding process
- Manufactured in GB to the highest standards:
  All materials used have been approved by the nuclear industry.
