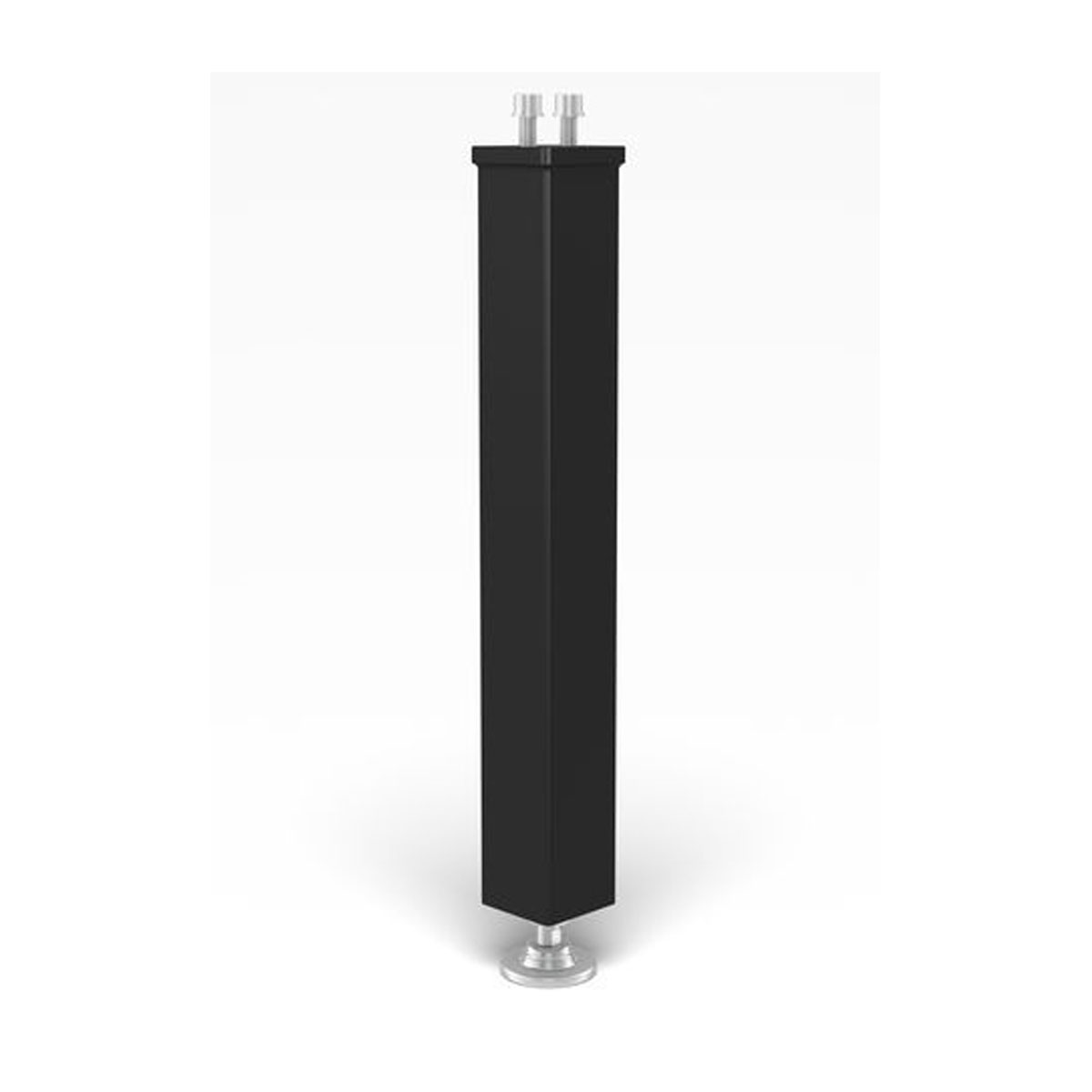

Base basic equipment 750, load capacity 2000 kg. Load capacity results with max. 30 mm unscrewed thread.
Fig. may deviate
Description
Product description
The base basic equipment is available in different lengths
(special lengths on request). The load capacity of the base
is 2,000 kg. It is finely adjustable up to 50 mm.
The foot collar prevents soiling in the threaded spindle
and prevents damage to the welding hose caused by the constant
Contact with the threaded spindle.
Length (a): 90 mm
Width (b): 90 mm
Height (c): 750 mm
Weight : 9 kg
| Length (a) | 90 mm |
| Width (b) | 90 mm |
| Height (c) | 750 mm |
| Weight (b) | 9 kg |
| Load capacity per foot | 2000 kg |
| Fine adjustment | 50 mm |
