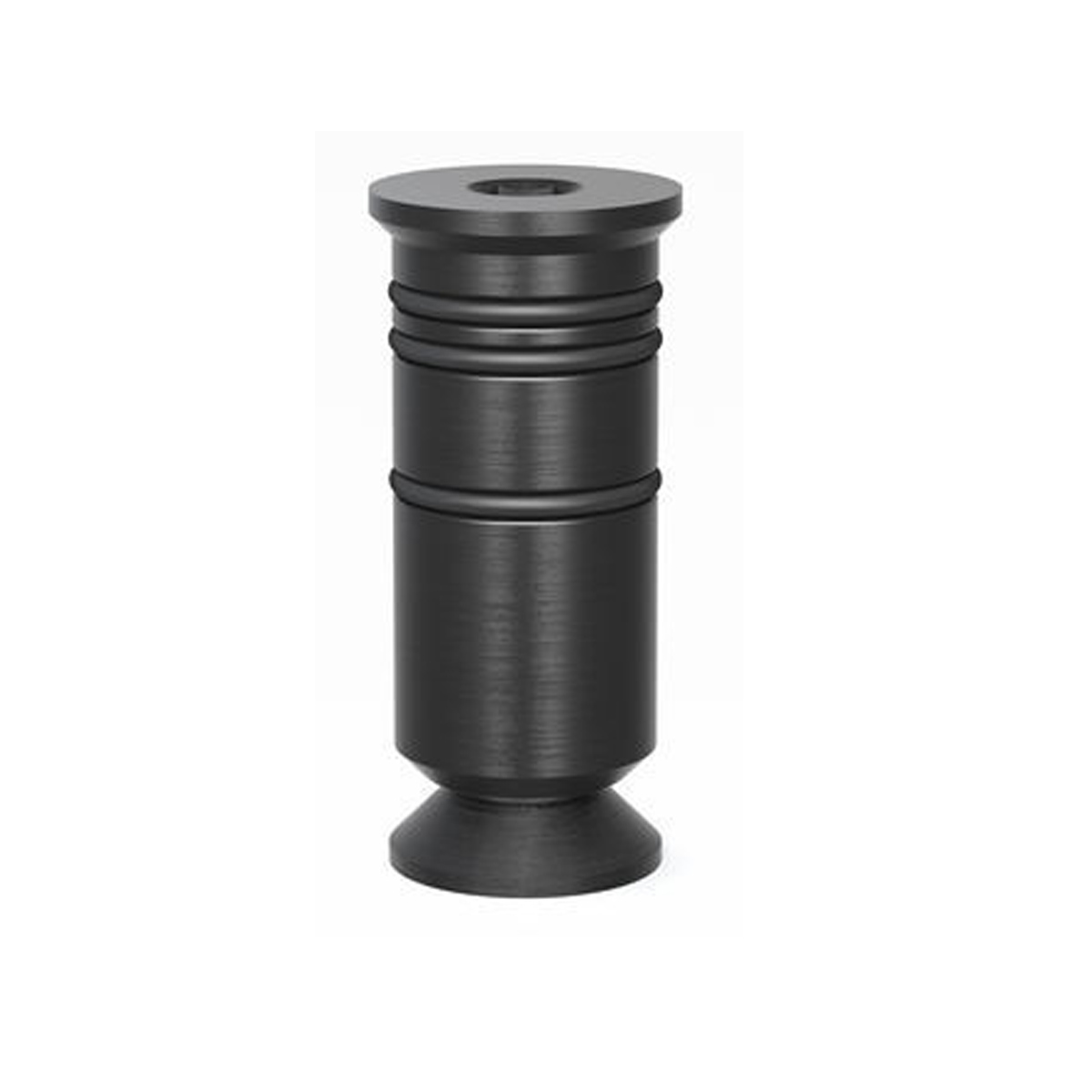

Triple connecting bolt - burnished, long, for connecting 3 components, with countersunk inner bushing, long-term connection, self-centring, not suitable for slotted holes, also for concealed use.
Fig. may deviate
Description
Product description
The burnished connecting bolt was specially designed as a fixed long-term connection for large Siegmund elements, e.g. tables and U-brackets.
The countersunk hexagon socket and the ability of the clamping bolt to centre itself make assembly easy. The
Countersunk head and the countersunk head screw have a 10 mm hexagon socket for clamping.
The connecting bolt enables a solid screw connection. The connecting bolt is not suitable for use in slotted holes.
- Connection of 3 components
- Not suitable for aluminium profiles
- with hexagon socket (top/bottom size 10)
| Length (a) | 75 mm |
| Weight (a) | 0.2 kg |
| Shear force | 200 kN |
| Tightening torque steel | 25 Nm |
| Tensile force steel | 10 kN |
