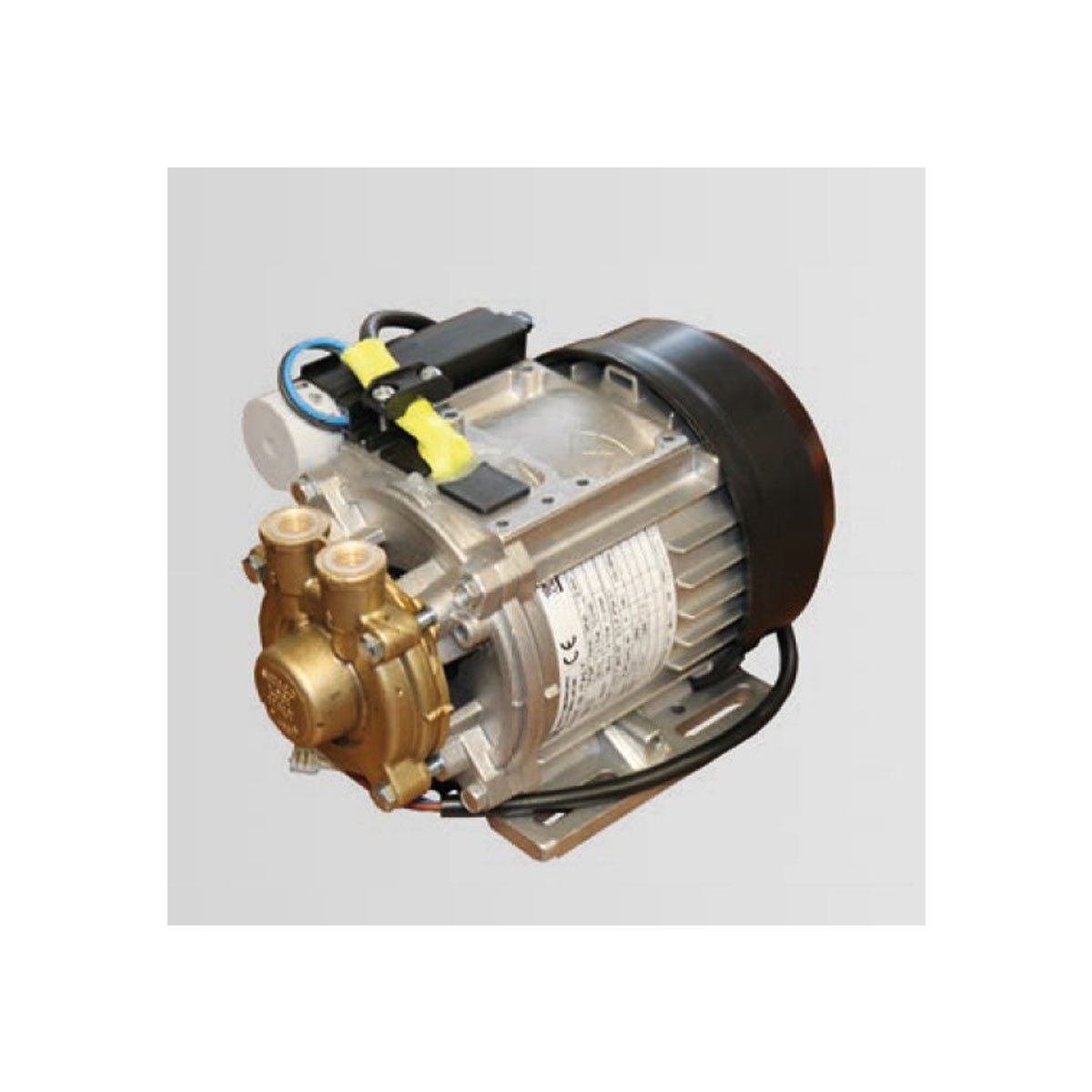

SIMACO - Simaco water pump, type KN37, 400 Volt, brass head, 50 - 60 Hz 0,80 - 0,90 A 0,22 - 0,30 kW, L x W x H = 183 x 123 x 112 mm
Fig. may deviate
Simaco water pump, type KN37, 400 Volt, brass head, 50 - 60 Hz 0,80 - 0,90 A 0,22 - 0,30 kW, L x W x H = 183 x 123 x 112 mm.
Simaco water pump, type KN37
The SIMACO peripheral wheel pump can be used universally. If the
installation space for the pump is limited the capacitor can be
removed by unscrewing the central screw. In this case an extremely
flat pump is obtained with a maximum overall height of 100 mm! In
addition, by removing the plastic fan cap, an aluminium fan wheel
can be mounted. Drilling pattern: 60 x 90 mm
Capacitor: mounted
Technical data:
Operation at 50 Hz
Q = 10 L/min
H = 32 mFls
P = 0,22 kW
I = 0,8
C = 6,3 F
n50Hz = 2850 min-1
Steinmetz circuit / 400 Volt
Operation at 60 Hz
Q = 11 L/min
H = 43 mFls
P = 0,3 kW
I = 0,9
C = 6,3 F
n60Hz = 3300 min-1
Steinmetz circuit / 400 Volt
