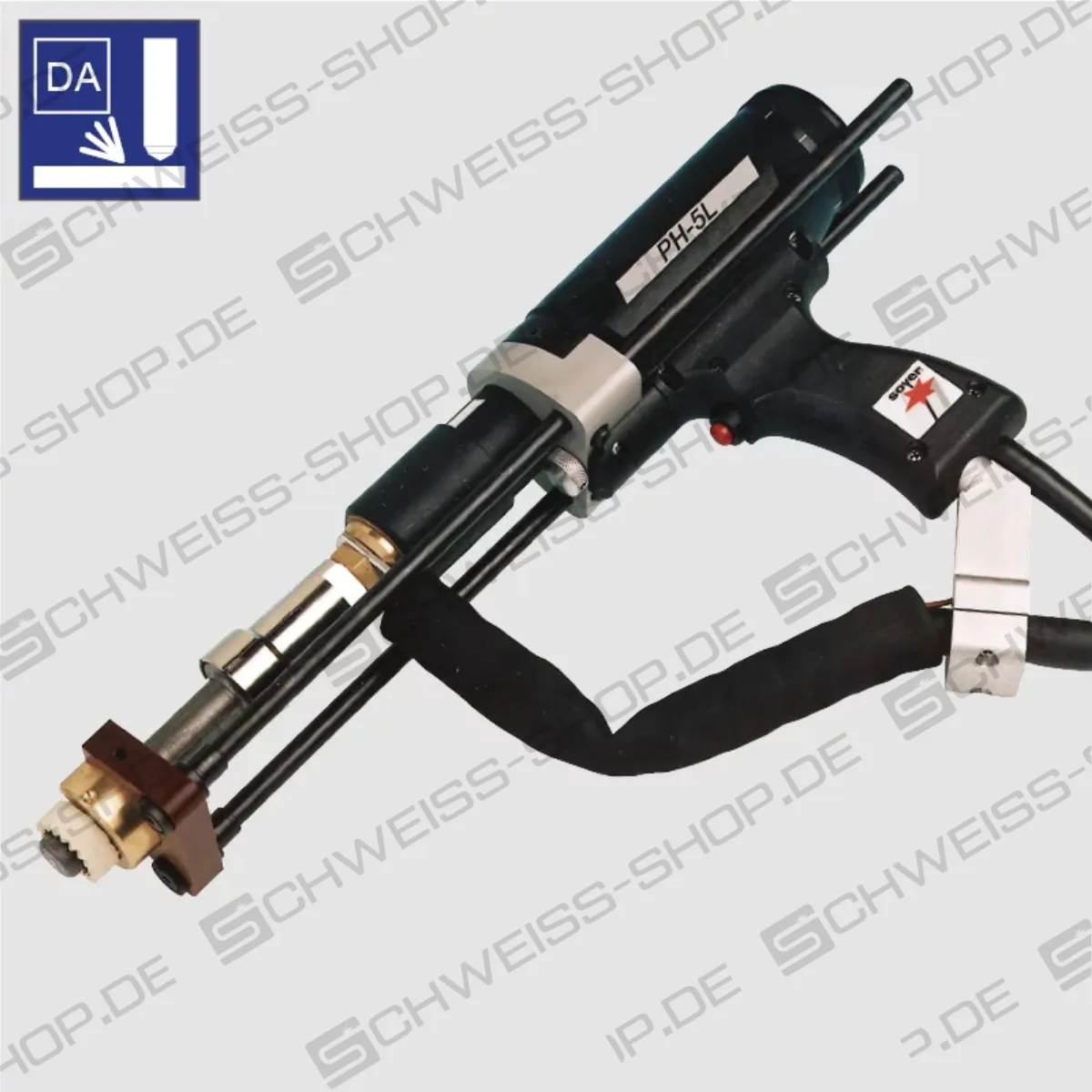

Stud welding gun PH-5L with ceramic ring equipment for drawn arc stud welding, particularly suitable for use in series production with high continuous welding sequence performance for larger stud diameters >= 16 mm.
Fig. may deviate
Description
Standard length 3 metres.
Pistols with additional letter K are contact pistols.
Only pistols marked with (*) can be used for BMS-8N.
For BMS-10N all pistols without additional letter P can be used.
For BMS-10P only guns with additional letter P can be used.
An accessory set in connection with energy source included in the price.
A newly designed manual oil damping regulates the plunging speed, which is mandatory when using bolt diameters > 12 mm. Due to the high power requirement, the welding cable is reinforced to 95 mm² and separately guided with a special holder. The PH-5L stud welding gun offers a maximum of technical performance advantages for the production of high-quality stud welded joints with simple and practice-oriented operation.
Technical data
Welding range
Studs and pins from M6 - M24 or 6 - 22 mm ( 25 mm )
Material
Steel, stainless and heat resistant steel
Welding and control cable
5m, highly flexible
Total length with ceramic equipment
approx. 350 mm to approx. 560 mm ( depending on the length of the stand rods )
