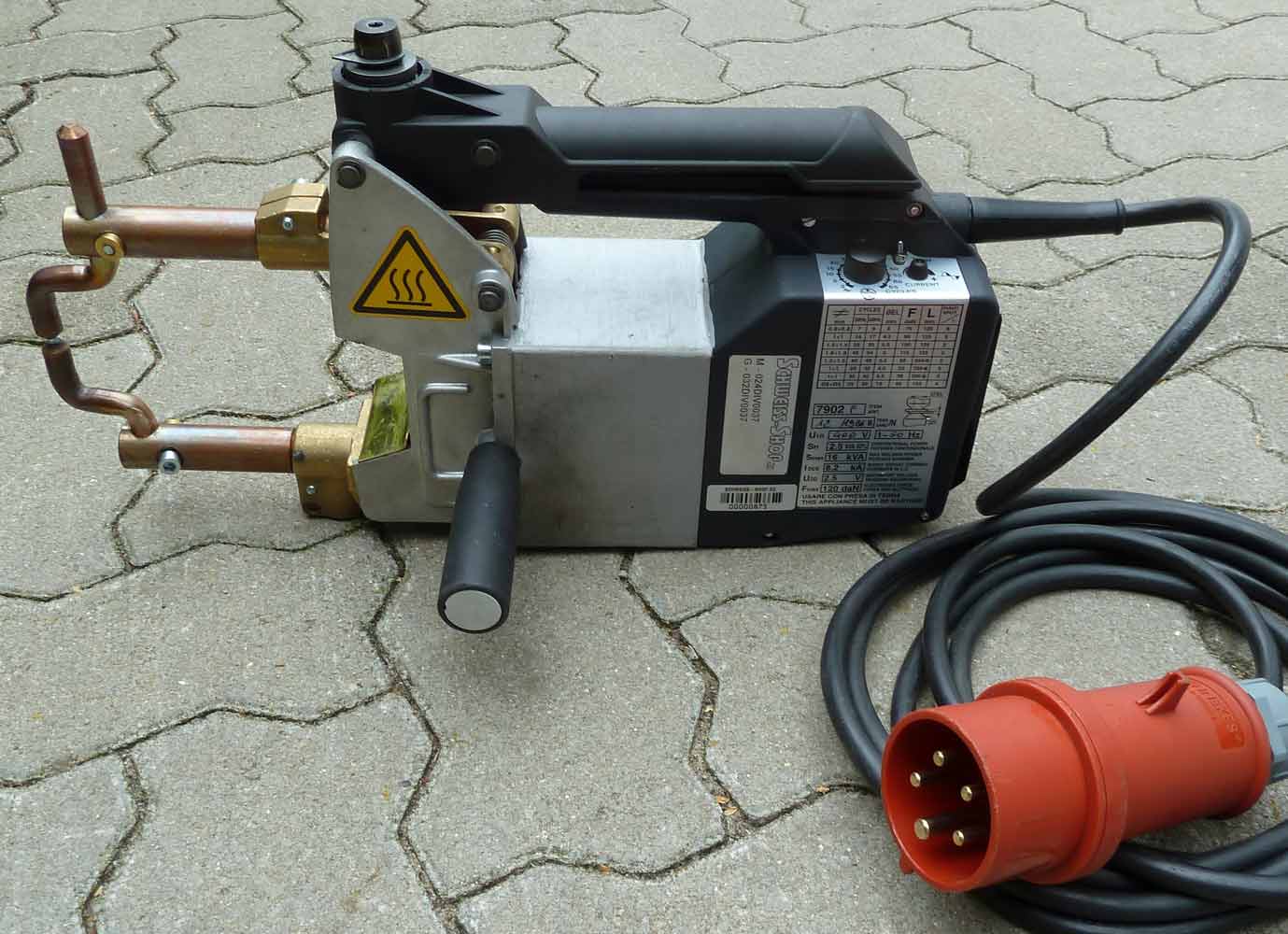

TECNA Hand-operated spot welding gun 7902P with pulse function - 2.5 kVA;( All spot welding guns are supplied complete with four pairs of different electrode arms, accessory box and control unit. )
Fig. may deviate
Description
- Versatile spot-welding gun for body shops
- Electronic synchronised timer with SCR 2 - 65 periods
- Compensation circuit controls the timer only with
current flow at the welding spot. Therefore excellent results when welding on sheet metal with traces of paint, oxidised parts or on galvanised sheet metal. - Pressure setting with scale in daN
- Additional lower arm connection to increase the arm distance.
- Transformer of insulation class F, tested with 4000 V alternating current
- Welding time with pulsation
- Point 5
| Indicative benefits | |
|---|---|
| Arm length | max. electrode pressure |
| 125 mm | 120 daN |
| 250 mm | 70 daN |
| 350 mm | 50 daN |
| 500 mm | 40 daN |
| Technical data | |
|---|---|
| MMA opening | max. material thickness |
| 55 mm | 2.0 + 2.0 mm |
| 90 mm | 1.8 + 1.8 mm |
| 135 mm | 1.5 + 1.5 mm |
| 190 mm | 1.2 + 1.2 mm |
Our rental prices are staggered according to the rental period.
(1 / 3 / 7 / 30 / 365 days).
By entering the desired rental days, the graduated price is automatically calculated and displayed for you. A long-term rental agreement must be concluded in advance for the 365-day rental scale.
The rental deposit to be paid is 200-500 euros, depending on the rental item and model. A valid ID and an EC card/bank account must be presented when renting.
