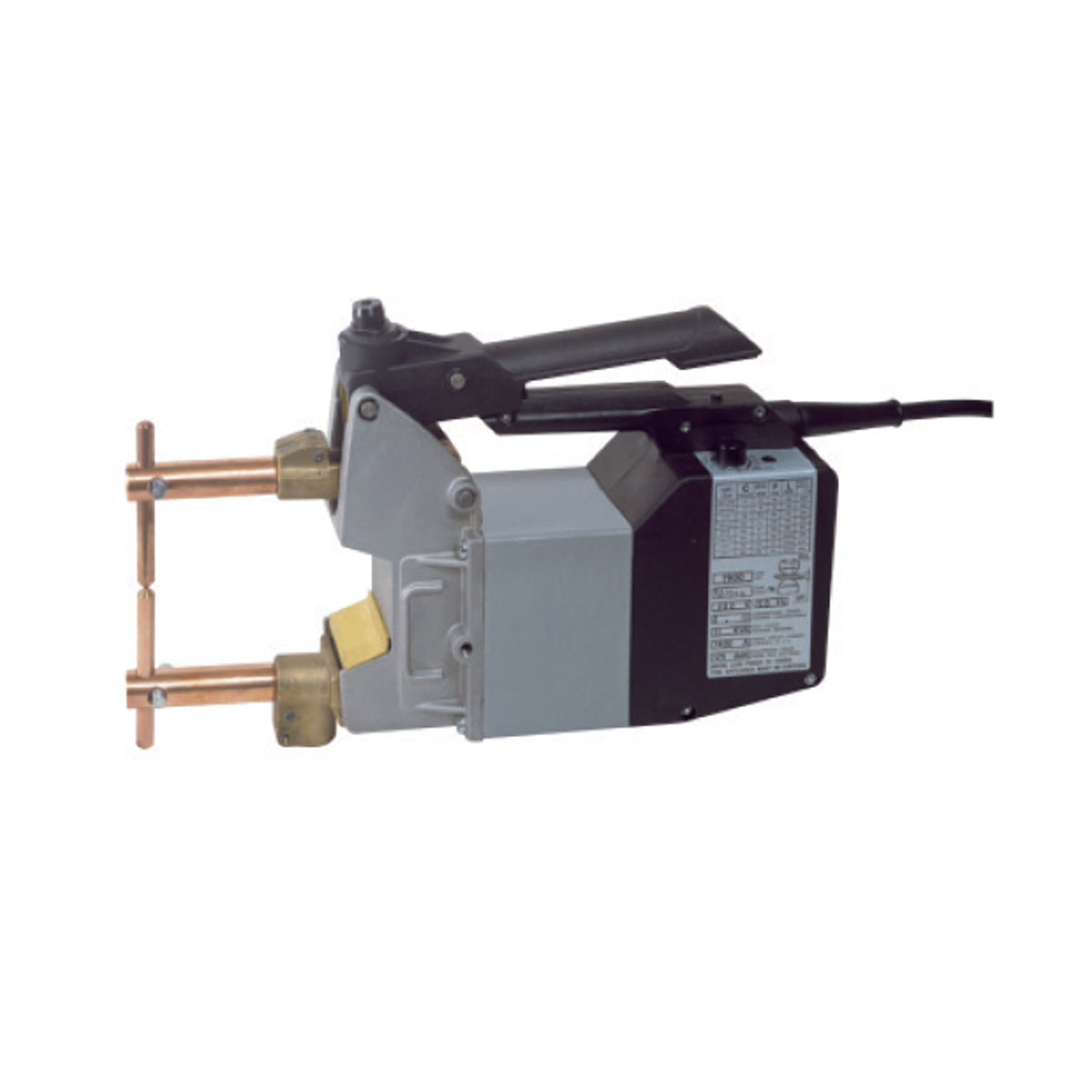

- Versatile spot-welding gun for
body shops |
- Electronic synchronised timer with SCR 2 - 65
periods |
- Compensation circuit controls the timer only when current
current flow at the spot weld. Therefore excellent
results when welding on sheet metal with paint
oxidised parts or on galvanised sheet metal. |
| - Pressure setting with scale in daN |
- Additional lower arm connection to increase the arm
the arm distance. |
- Transformer of insulation class F, tested with 4000 V
alternating current |
| - Welding time with pulse function ( version P ) on request |
|
| Indicative outputs |
| Arm length |
max. electrode pressure |
| 125 mm |
120 daN |
| 250 mm |
70 daN |
| 350 mm |
50 daN |
| 500 mm |
40 daN |
|
| Opening MMA |
max. material thickness |
| 55 mm |
2.0 + 2.0 mm |
| 90 mm |
1.8 + 1.8 mm |
| 135 mm |
1.5 + 1.5 mm |
| 190 mm |
1.2 + 1.2 mm |
|
| Sheet thickness |
Work cycle Points/hour |
Electrode tip |
| 0.8 + 0.8 mm |
380 |
4.0 mm |
| 1.0 + 1.0 mm |
300 |
4.5 mm |
| 1.2 + 1.2 mm |
260 |
4.5 mm |
| 1.5 + 1.5 mm |
140 |
5.0 mm |
| 1.8 + 1.8 mm |
110 |
5.5 mm |
| 2.0 + 2.0 mm |
70 |
6.0 mm |
| Steel wire |
|
|
| 6.0 + 6.0 mm |
300 |
- |
| 8.0 + 8.0 mm |
200 |
- |
|
|
