TEKA filtoo Mechanical mobile filter unit with 1 extraction element (incl. 3m extraction arm) with bonnet and magnetic base, IFA-tested ~ Teka 978100 ~ Filter systems ~ 064FAL0022 ~ Schweiss Shop

Filter systems · 064FAL0022

TEKA filtoo Mechanical mobile filter unit with 1 suction element (incl. 3m suction arm) with hood and magnetic base, 1,1 kW, 230V/50Hz, IFA-tested.

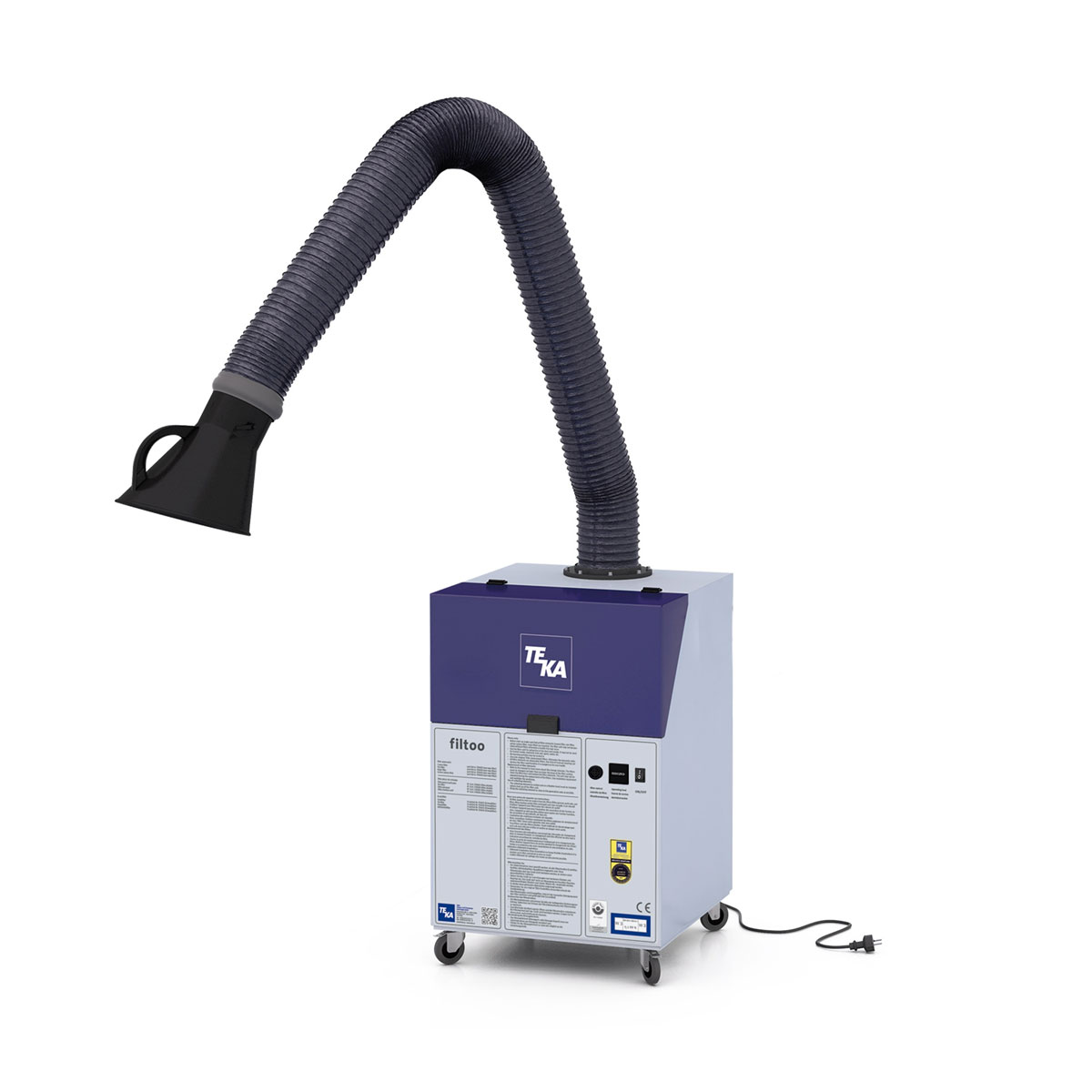

Fig. may deviate


TEKA filtoo Mechanical mobile filter unit

The new filtoo:
The recently developed filter unit „filtoo“ is a mobile filter unit that can be
used for many applications requiring the filtration of fumes, dusts and even gases.
The unit is IFA certified for welding fume category W3 (certification IFA: 1005029).
Functioning of filtoo:
The polluted air is extracted and led into the filter unit either by the suction
arm or by other capturing elements. The particles or gases are extracted from the
airflow during a filtering procedure consisting of several stages and the cleaned
air returns to the working space.
For welding places, in workshops, for soldering applications, for restorers and in
locksmith’s shops
You receive a complete „Plug and Play System“ that is ready for operation. It is
only necessary to connect the intake elements before commissioning the unit.
Construction of filtoo:
The advantages of the compact unit are the robust and solid construction. The
housing is made of a stable steel sheet construction and coated with powder from
inside and outside. The filter elements are accessible via a maintenance flap.
Therefore, they can be easily and rapidly withdrawn. The unit is equipped with
suitable control elements.

Technical data

Width [mm]: 580
Depth [mm]: 580
Length [mm]: 900
Weight [kg]: approx. 80 kg
Engine power (kW): 1,1
Volumetric flow [m³/h]: 1.600
Depression [Pa]: 1.800
Sound level [dB(A)]: approx. 72
Separation efficiency [%]: > 99
Automatic cleaning: No
