TIG/TIG welding torch SR18 / 8m, water-cooling, Ergotig High-Flex, "flexible torch head" version (work in hard-to-reach places), leather and rubber coating. Current up to 320A. Incl. original equipment 2,4mm. Machine connection suitable "Kemppi 003".
The ERGOTIG series is distinguished above all by its ergonomic handle with ball joint. Only highly flexible silicone gas and water hoses are used in the High-Flex version. The cover hose, which is also highly flexible, ends at the handle with approx. 60 cm of leather, which offers maximum comfort during handling.
| Technical data |
| Tension class |
L |
| Inert gas |
Argon |
| Duty cycle DC |
320A |
| Duty cycle AC |
270A |
| Electrodes Ø |
0,5 ÷ 4,0mm |
| Cooling |
water-cooled |
| Maximum liquid temperature °C |
60 |
| Minimum flow rate water I/min |
1,5 |
| Maximum inlet pressure in bar |
4 |
| Minimum inlet pressure in bar |
2 |
| Gas flow rate in l/min |
7 ÷ 20 |

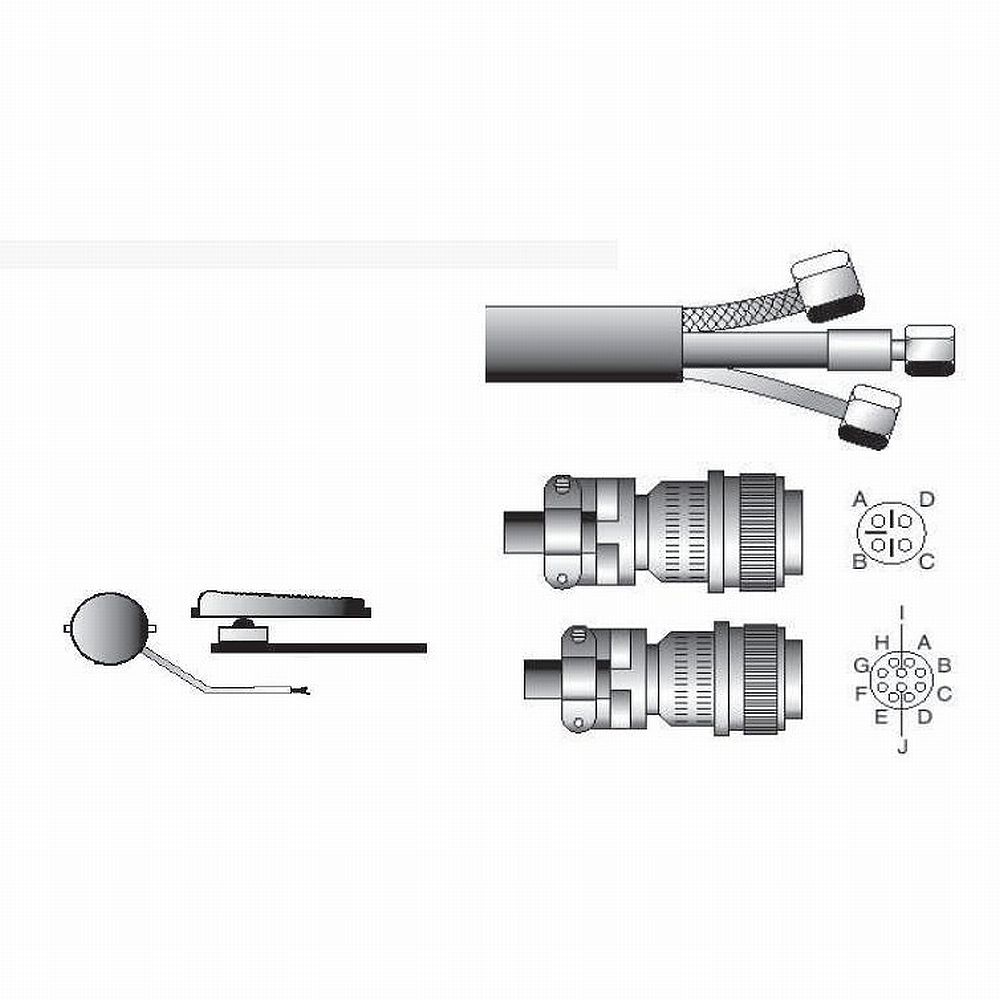

| Control connector |
4-pole Amphenol connector |
| Gas connection |
G1/4" |
| Water connection |
WV G3/8" |
| Switch type |
ED - single pressure with potentiometer 10k/Ohm |
| All brand names, company names or logos are trademarks of the respective companies or rights holders. References to Kemppi® machines are solely for the purpose of better allocation. Kemppi® is the property of the respective company. |
