TIG/TIG welding torch SR20 / 4m, water cooled, Ergotig High-Flex with leather and rubber cover. Current up to 250A. Including original equipment 2,4mm. Machine connection suitable "Kjellberg 033".
Fig. may deviate
Description
The ERGOTIG series is distinguished above all by its ergonomic handle with ball joint. Only highly flexible silicone gas and water hoses are used in the High-Flex version. The cover hose, which is also highly flexible, ends at the handle with approx. 60 cm of leather, which offers maximum comfort during handling.
| Technical data | |
|---|---|
| Tension class | L |
| Inert gas | Argon |
| Duty cycle DC | 250A |
| Duty cycle AC | 220A |
| Electrodes Ø | 0,5 ÷ 3,2mm |
| Cooling | water-cooled |
| Maximum liquid temperature °C | 60 |
| Minimum flow rate water I/min | 1 |
| Maximum inlet pressure in bar | 4 |
| Minimum inlet pressure in bar | 2 |
| Gas flow rate in l/min | 7 ÷ 18 |

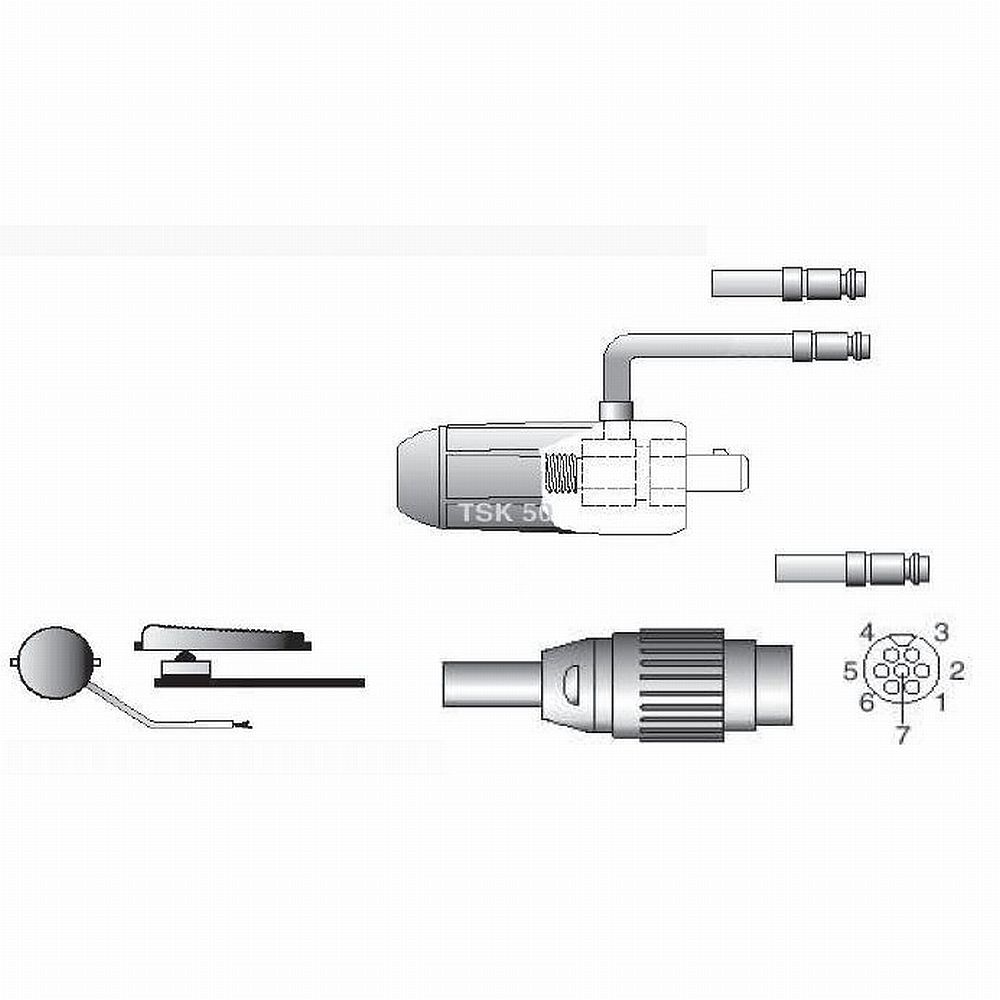

| Control plug | 7-pole Tuchel connector |
| Power connection | TSK 10/25 |
| Gas connection | Plug nipple NW5 |
| Water connection | Plug nipple NW5 |
| Switch type | ED - single pressure with potentiometer 10k/Ohm |
